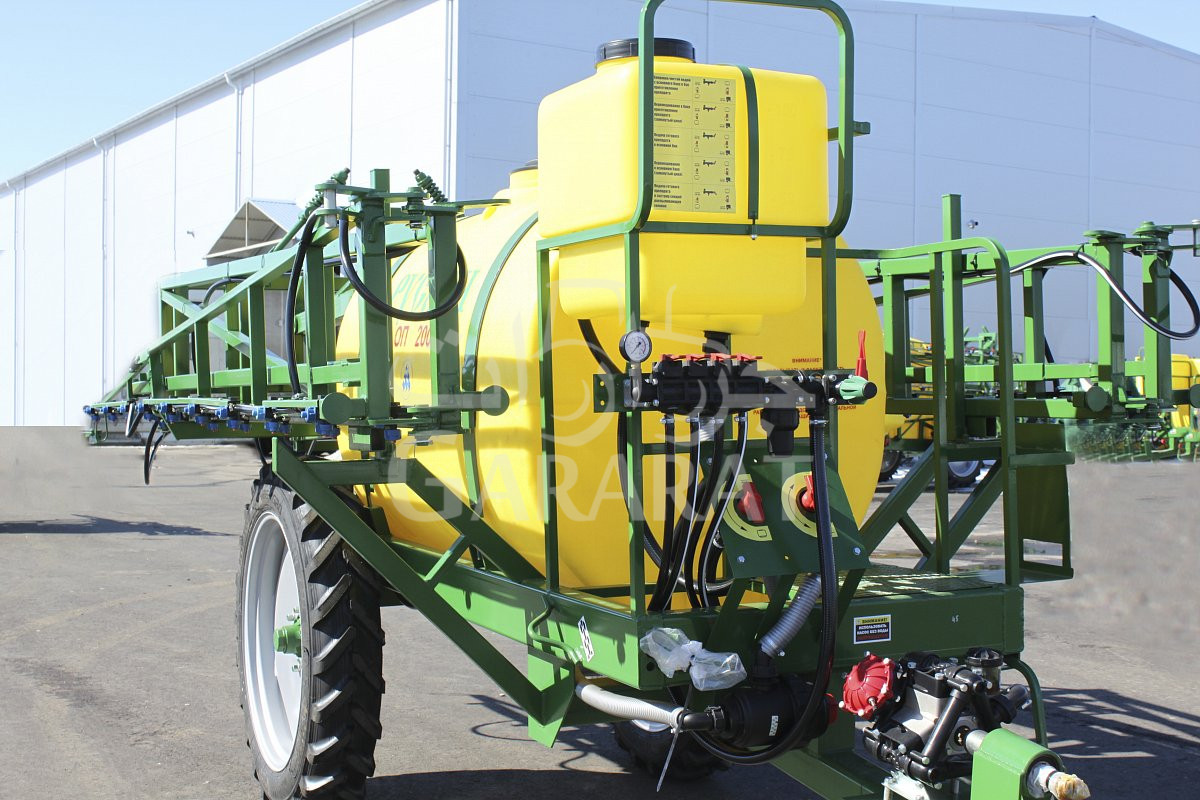

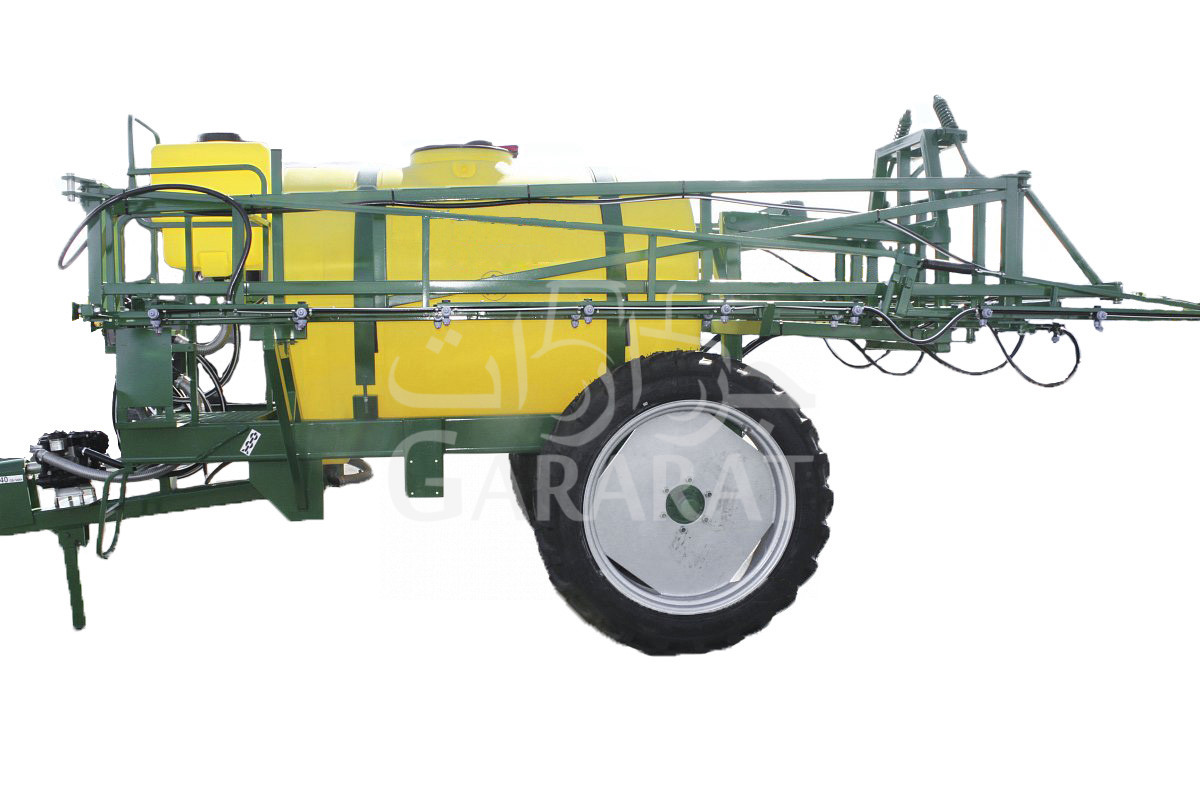

The Field sprayer GARARAT FS-2000-18 is designed for treating field crops with pesticides, as well as for applying liquid complex and other mineral fertilizers by surface spraying. The sprayer is designed as a single-axle semitrailer.

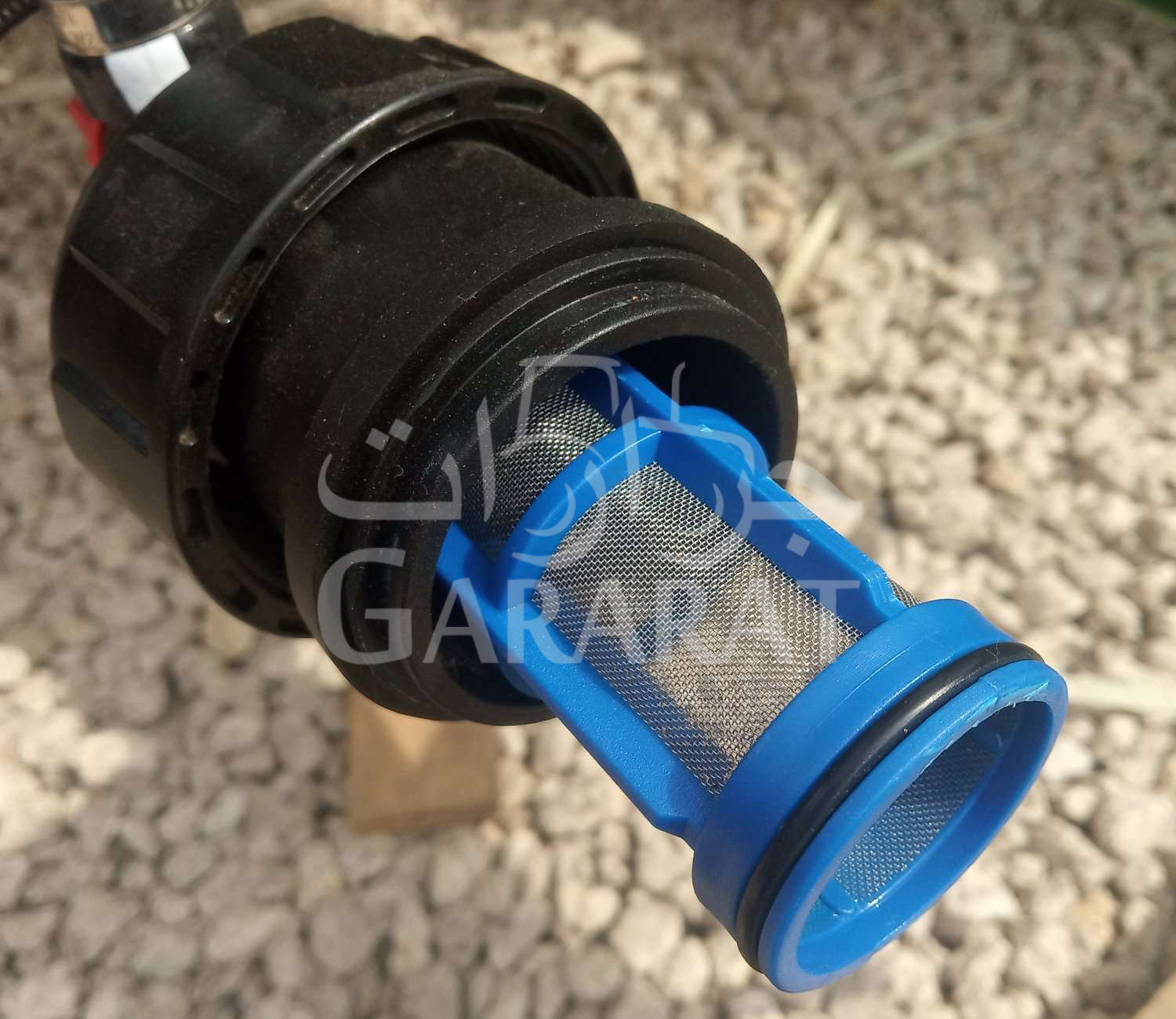

The sprayer is equipped with a three-stage filtration system, which avoids clogging of the nozzles and their frequent replacement.

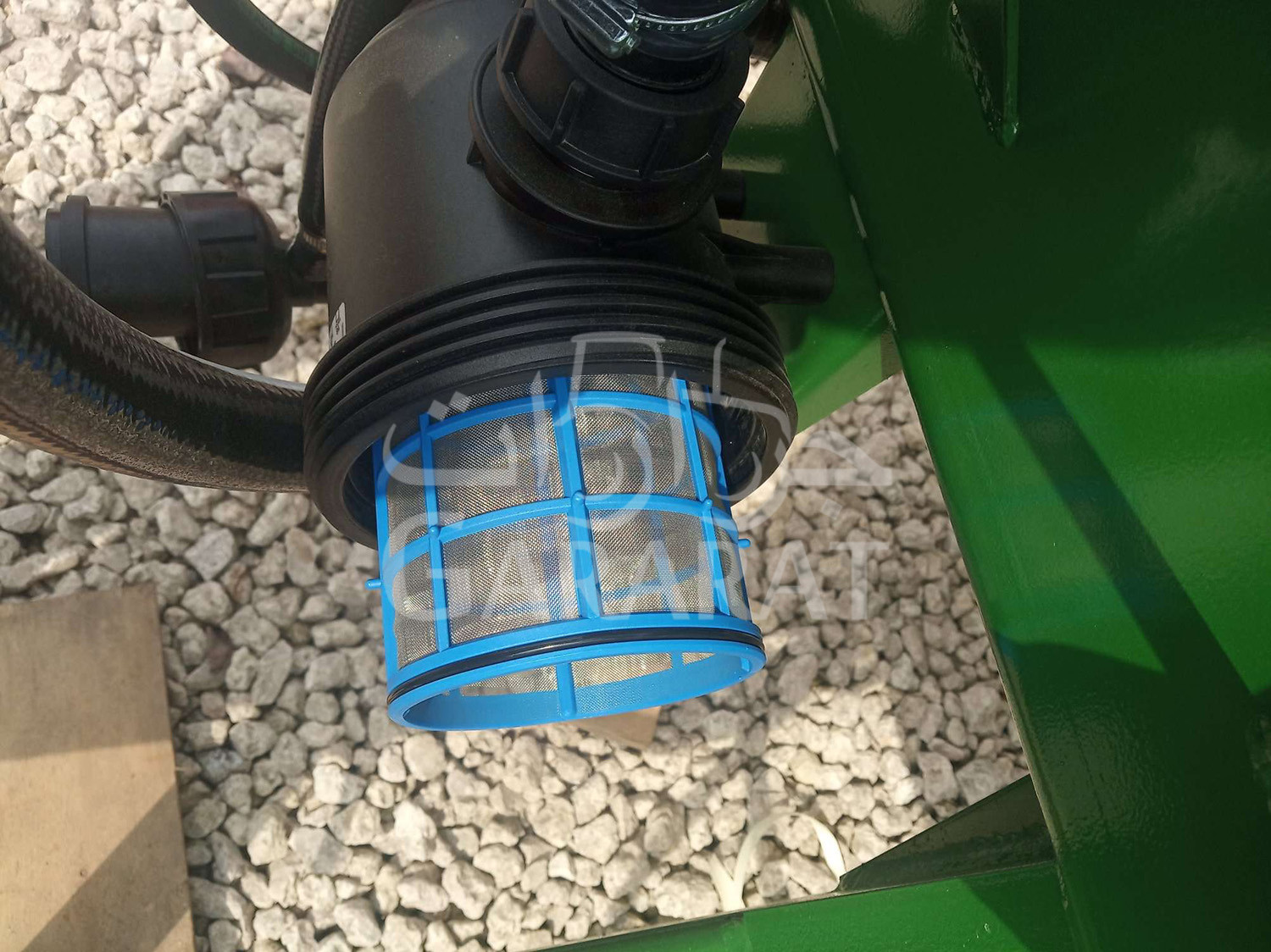

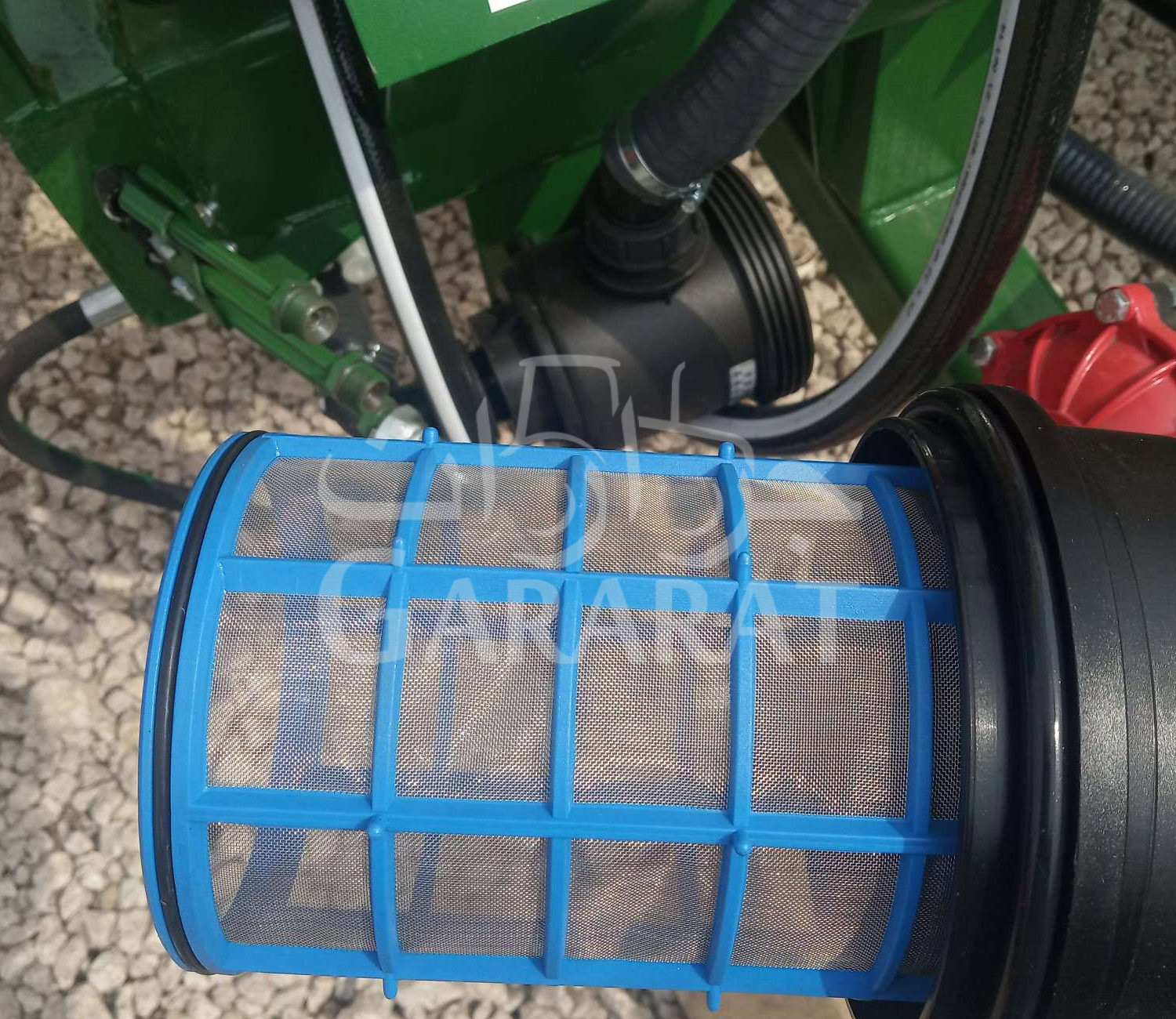

- The filter is on the suction line.
- The second filter is located on the distribution block.
- The third filter is inside each nozzle.
| SPECIFICATION |
|
| Sprayer type |
semi-trailed |
| Main tank capacity, l |
2000 |
| Working width of capture, m |
18 |
| Pump productivity, l/min |
130 |
| Agrotechnical clearance, mm |
700 |
| Track width (adjustable), mm |
1400; 1600; 1800 |
| Installation height of the boom relative to the field surface, mm |
500 - 2000 |
| Rod lifting mechanism |
parallelogram |
| Rod type (truss) |
flat |
| Working speed, km/h |
8 - 12 |
| Number of boom lift cylinders |
one |
| Wheel width |
9.5 * 32 |
| Weight, kg |
1350 |
| Drawbar category of the tractor, h.p. |
80 - 90 |
| Basic equipment |
|
| - The volume of the tank is 2000 liters; |
|

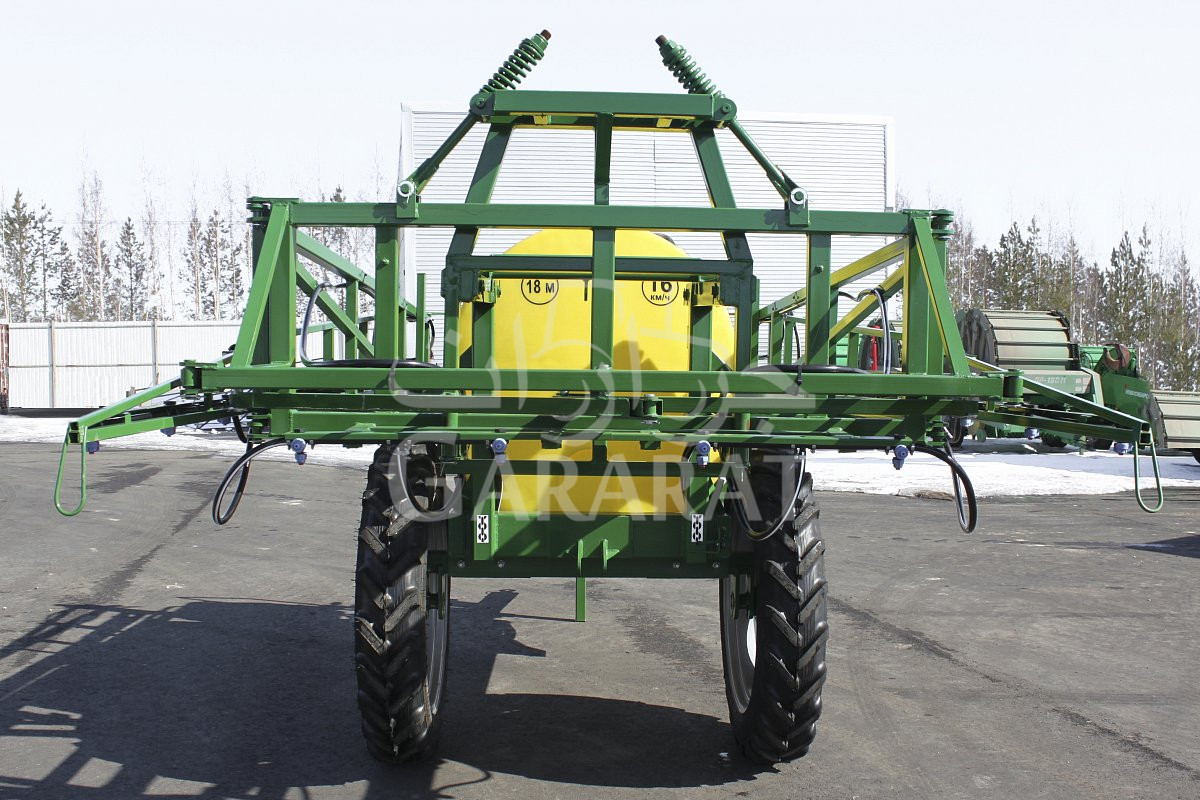

| - Hydraulic boom 18 meters with a parallelogram lifting mechanism; |
|
| - Trapezoidal rod suspension mechanism; |
|

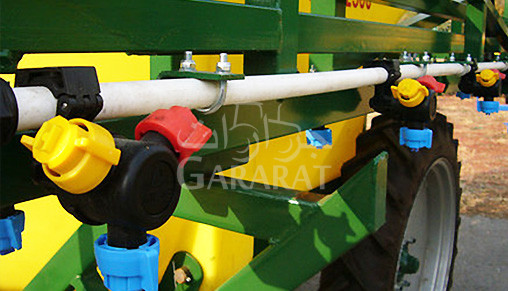

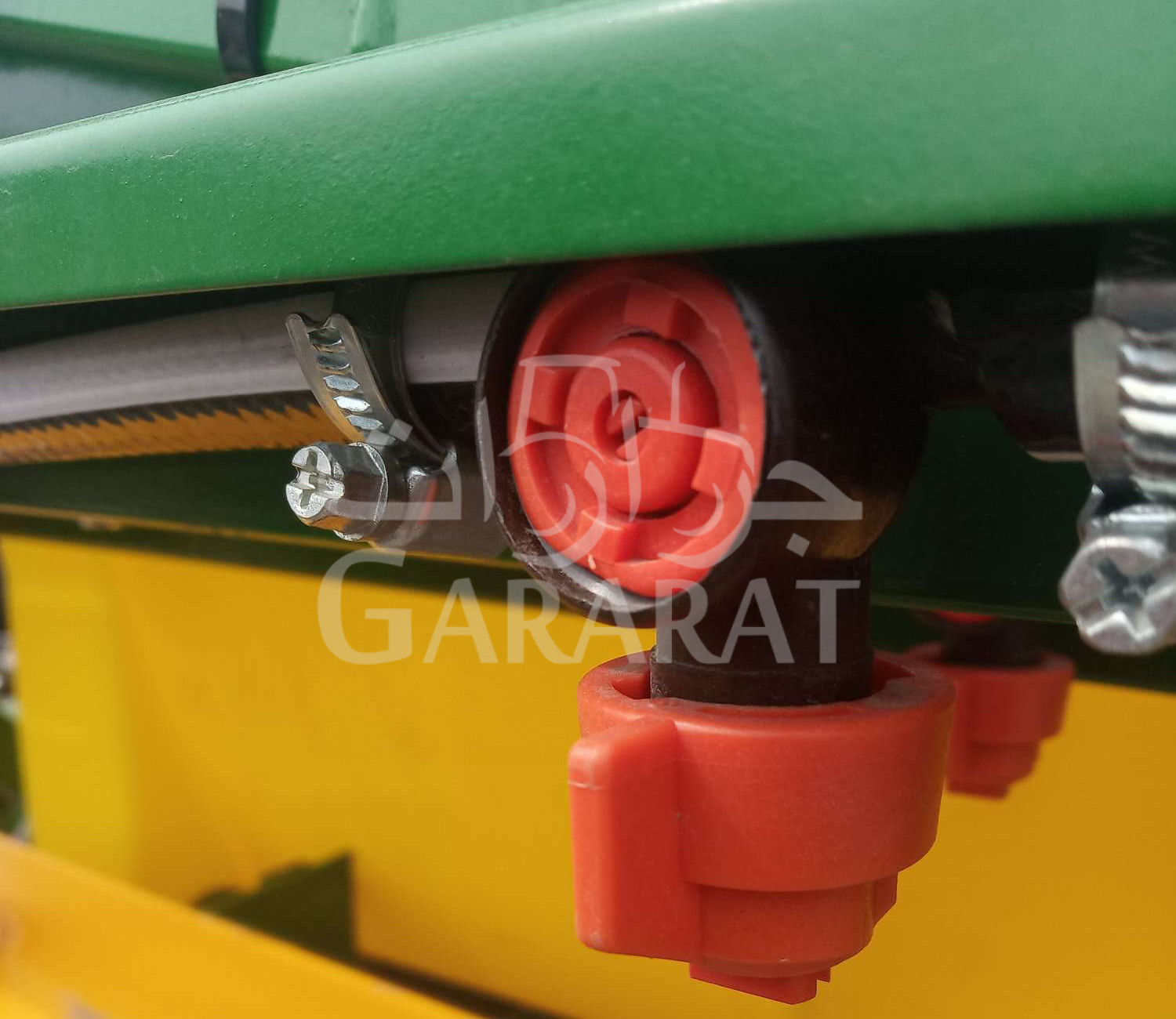

| - 1-position Lechler nozzles; |
|

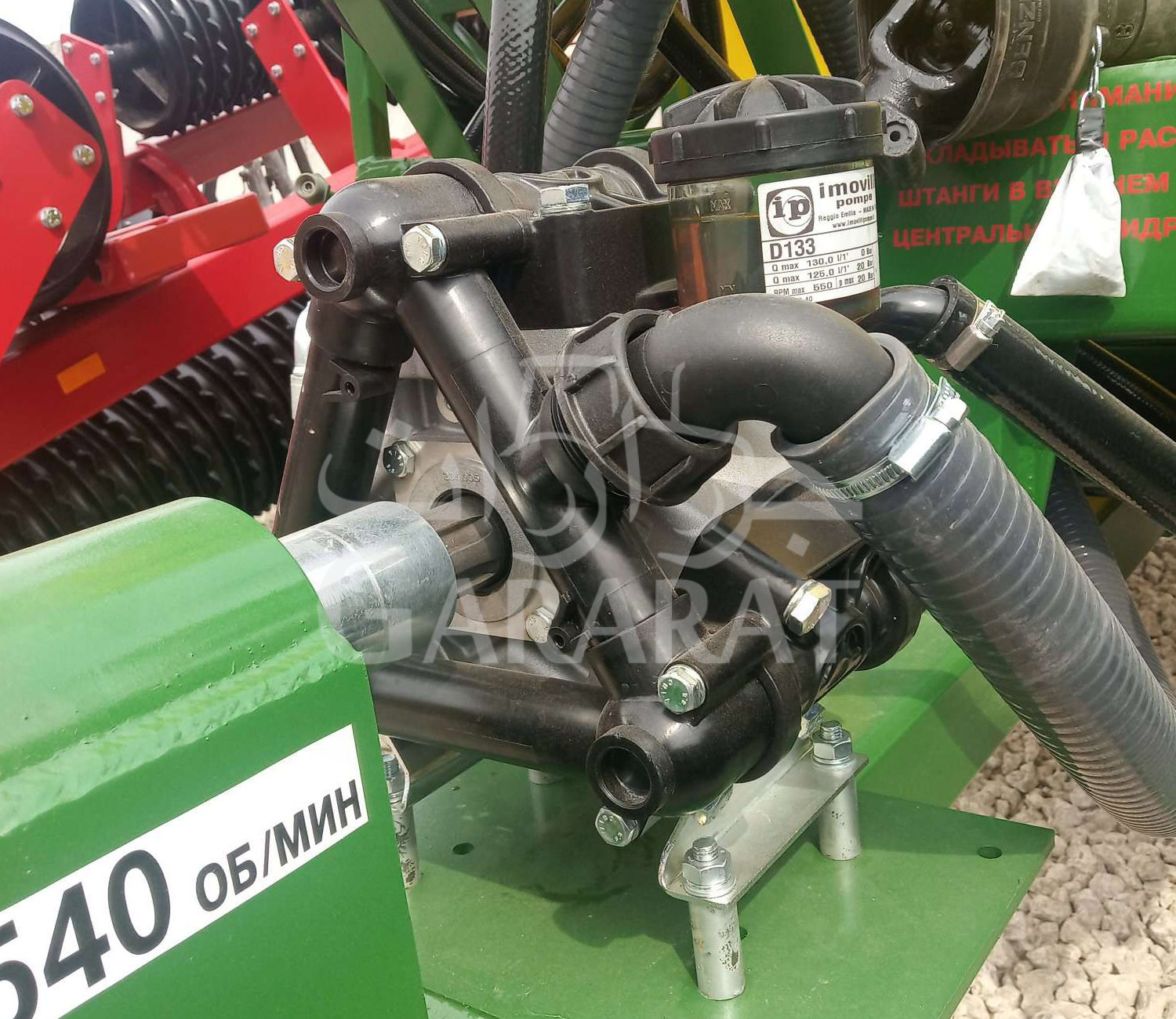

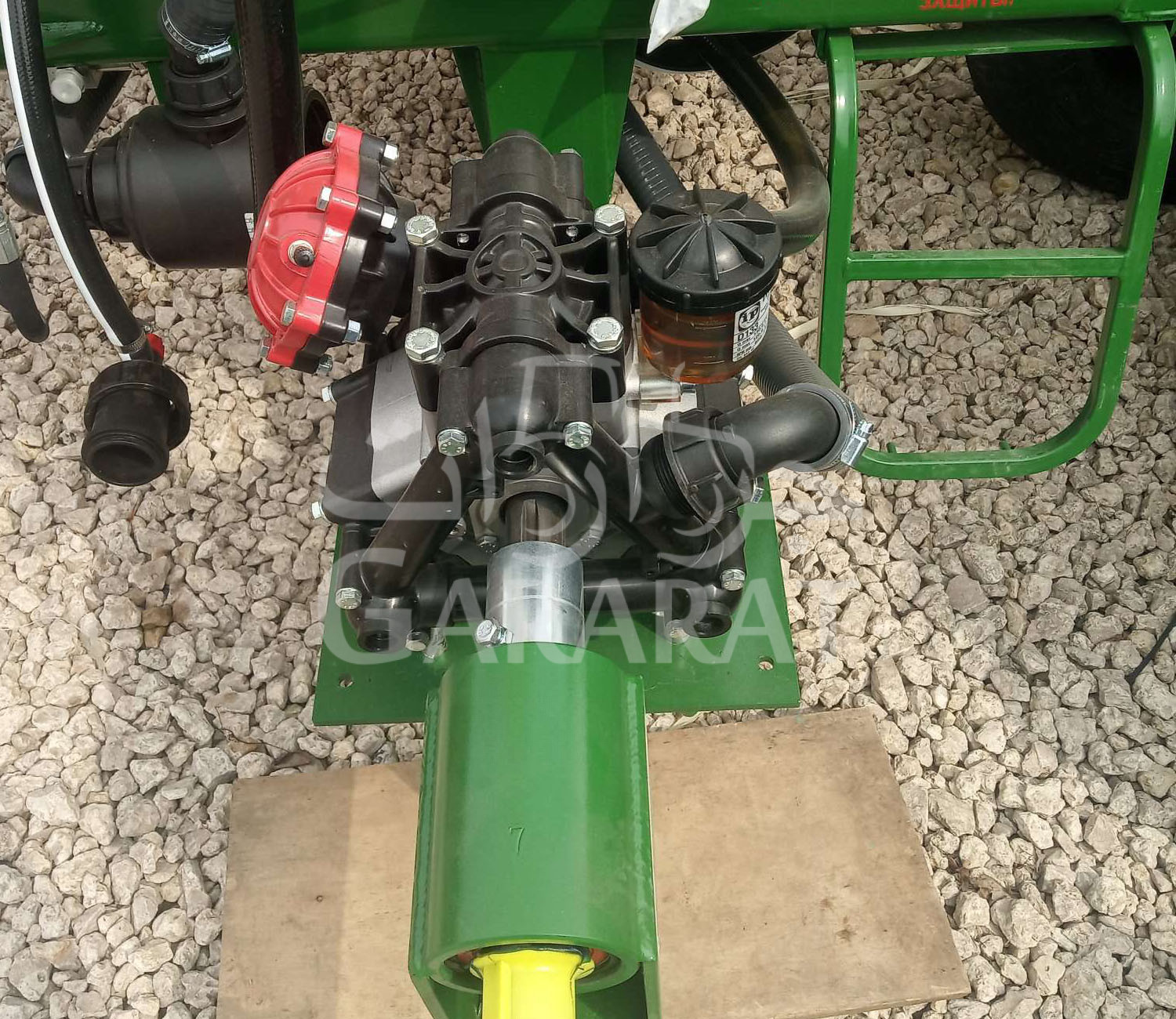

| - Pump 130 l / min (Italy); |
|

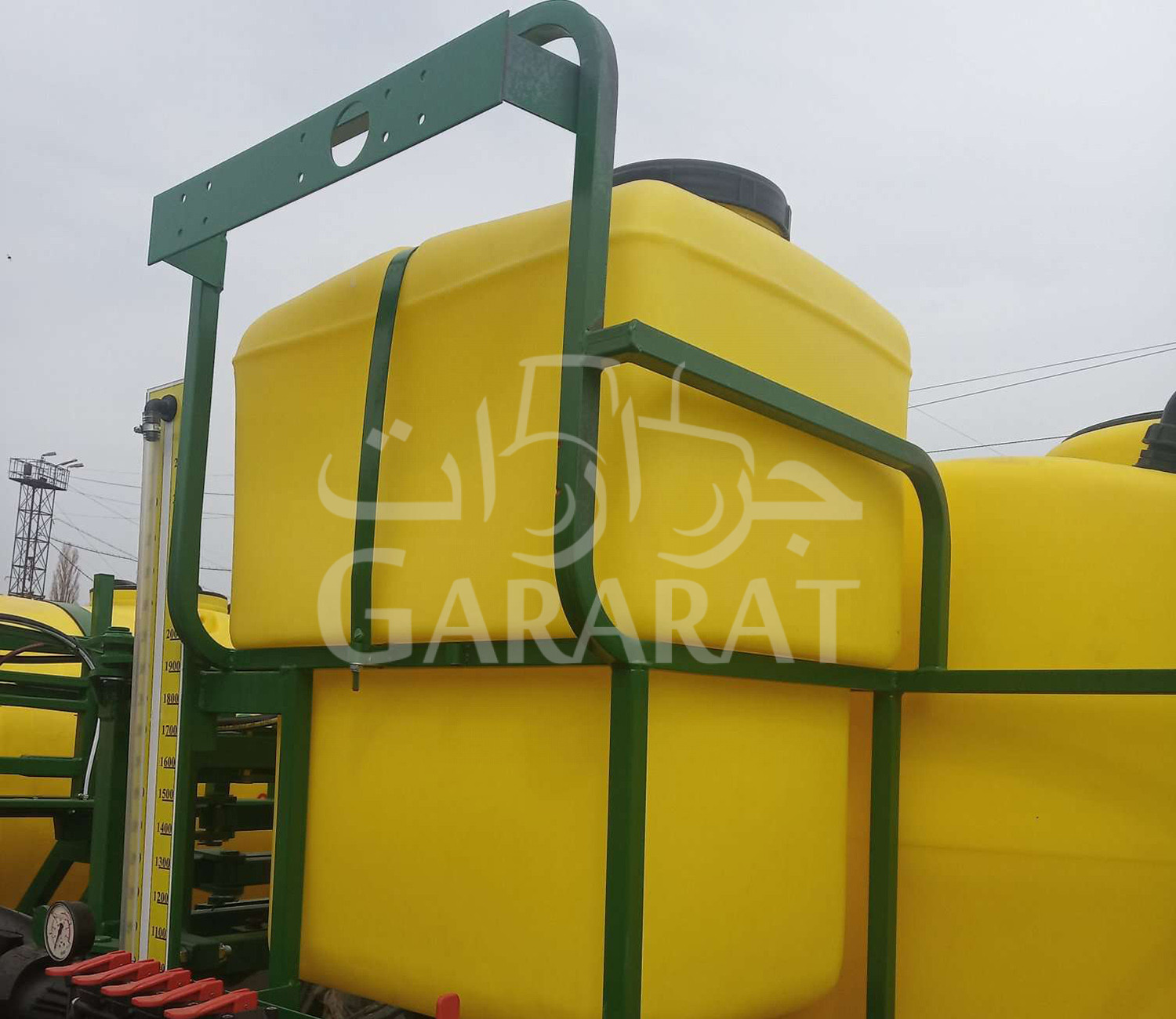

| - Fresh water tank for 120 liters; |
|
| - Hand washing tank; |
|
| - Cardan shaft 6 * 8 splines; |
|
| - Wheels 9.5 * 42. |
|
| Additional options |
|

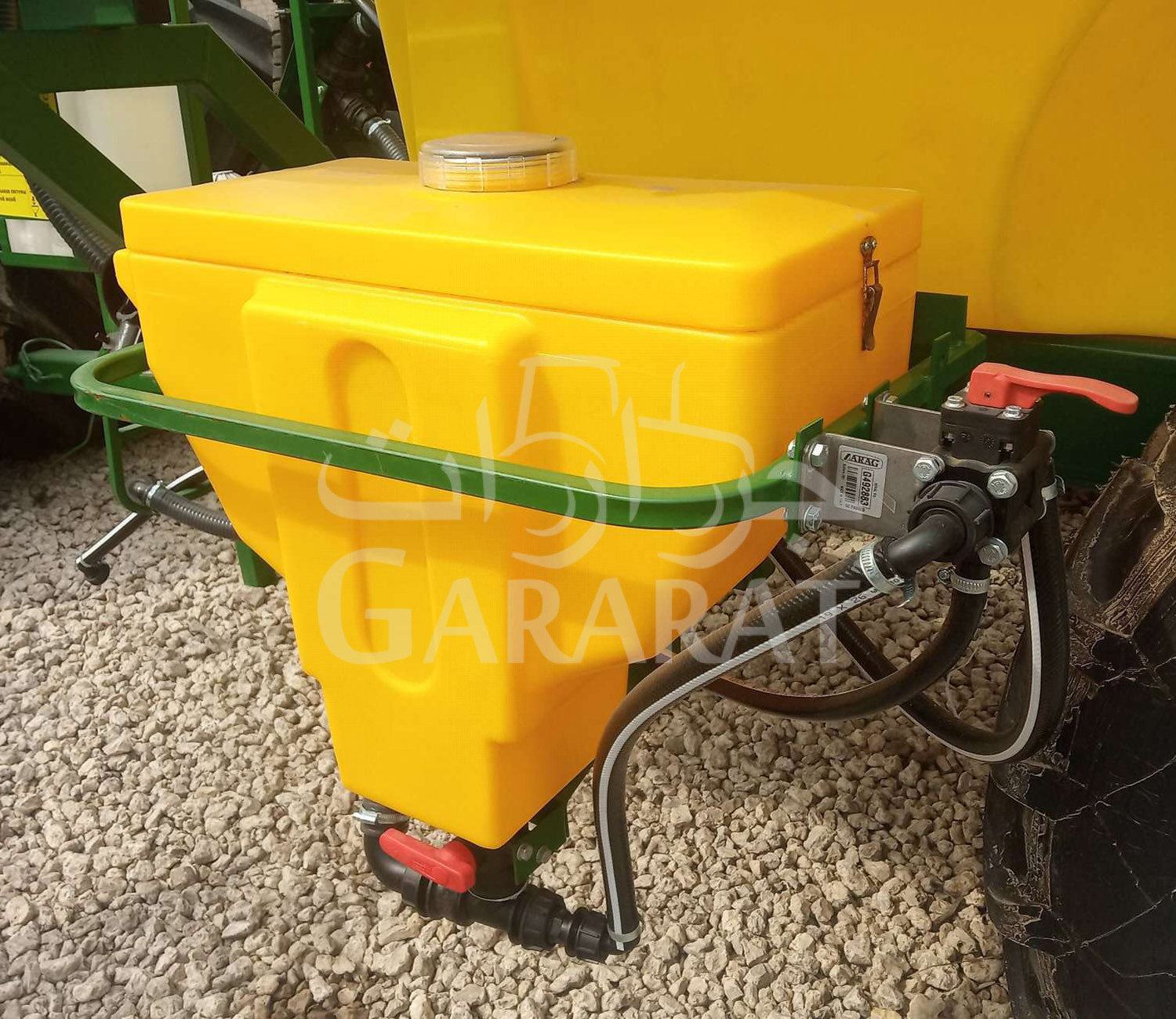

| - Mixer for preparation of working solution |
35 liters |
| - 3-position nozzles |
line - stainless steel, IDK nozzles |
| - 3-position nozzles |
polypropylene line, ST nozzles |
| - Uniform application system Bars-5 |
Control of the rate of application of the solution regardless of the speed of movement |
| - GPS navigator |
Atlas 530 |
| - Brake system |
|
