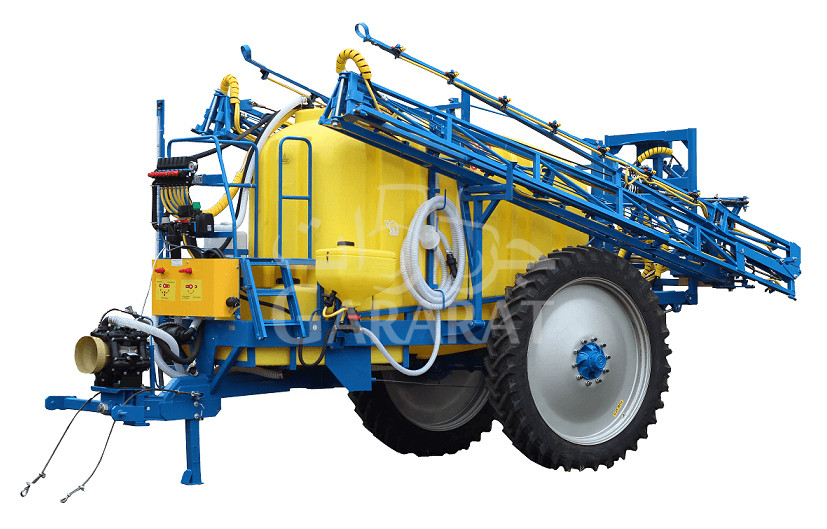

Field sprayer GARARAT FS-4000-18
The sprayer is designed for treating field crops with pesticides, as well as for applying liquid complex and other mineral fertilizers by surface spraying.
The sprayer can work with all pesticides approved for use in agriculture, in the form of solutions, emulsions and suspensions.
Features:
Pump diaphragm piston type Imovilli Pompe or UDOR (Italy);
The sprayer boom hydraulic control system allows autonomous control of the left and right boom halves, which is convenient when working on the edge of the field or avoiding obstacles;
Computer system + navigator Bravo-400S LT (7 sections) "ARAG" Italy - 2 in 1:
- navigation system and spray control unit in one display;
- automatic shutdown of boom sections to prevent overlapping during processing
Integrated flushing system with an additional 350 l tank:
Boom is on pneumatic support;
Boom stabilization system (springs, shock absorbers, hydro-pneumatic accumulator);
Built-in self-filling system and a 10 m hose with an intake filter and a check valve;
The original system for draining the remaining working fluid from the tank, controlled from the sprayer working platform.
| SPECIFICATION | |
|---|---|
| Sprayer type | semi-trailed |
| Main tank capacity, l | 4000 |
| Working width of capture, m | 18 |
| Pump productivity, l/min | 200 |
| Productivity per hour of main time, ha | 14.4 - 21.6 |
| Agrotechnical clearance, mm | 550 |
| Track width (stepless adjustment), mm | 1800 - 2800 |
| Installation height of the boom relative to the field surface, mm | 700 - 2100 |
| Rod lifting mechanism | parallelogram |
| Rod type (truss) | flat |
| Working speed, km/h | 8 - 12 |
| Transport speed, km/h | 16 |
| Number of sections | 7 |
| Number of boom lift cylinders | two |
| Overall dimensions in transport position, mm: | |
| - length | 6000 |
| - width | 2500 |
| - height | 2900 |
| Wheel width | 9.5 * 42 |
| Weight, kg | 2150 |
| Drawbar category of the tractor, h.p. | 90 - 130 |
| Basic equipment | |
| - The volume of the tank is 4000 liters; | |
| - Hydraulic boom 18 meters with a parallelogram lifting mechanism; | |
| - Pendulum rod suspension mechanism; | |
| - Pump 200 l / min (Italy); | |
| - Hand washing tank, 15 liters; | |
| - Autonomous control of the left and right boom halves; | |
| - 1-position nozzles; | |
| - Four sets of sprayers of the CT and TP series for various types of pesticides and liquid mineral fertilizers; | |
| - Infinitely variable track adjustment; | |
| - Cardan shaft 6 * 8 splines; | |
| - Built-in self-filling system with 10 m hose; | |
| - Articulated swivel drawbar; | |
| - Integrated flushing system with tank 350 liters; | |
| - Brake system with parking brake. | |
| Additional options | |
| - Mixer for preparation of working solution | 35 liters |
| - 3-position nozzles | "ARAG" Italy (36 pcs. + 2 spare parts) |
| - Computer system Bravo-180S (5 sections) "ARAG" Italy | - control of the rate of application of the solution regardless of the speed of movement |
| - Computer system + navigator | Bravo-400S LT (7 sections) "ARAG" Italy - 2 in 1 |
| - GPS navigator | Matrix Pro-570G or Matrix-430GLNS (TeeJet, USA) |
| - Set of wheel dividers for the FS series sprayer | designed to reduce damage to plants by frame elements and wheels when processing crops |
| - Additional filtration system | |
| - Sprayers TeeJet, Arag, Hypro | |
| - Night work lights (boom light kit) | |
| - Set for a sprayer for applying UAN for corn |
