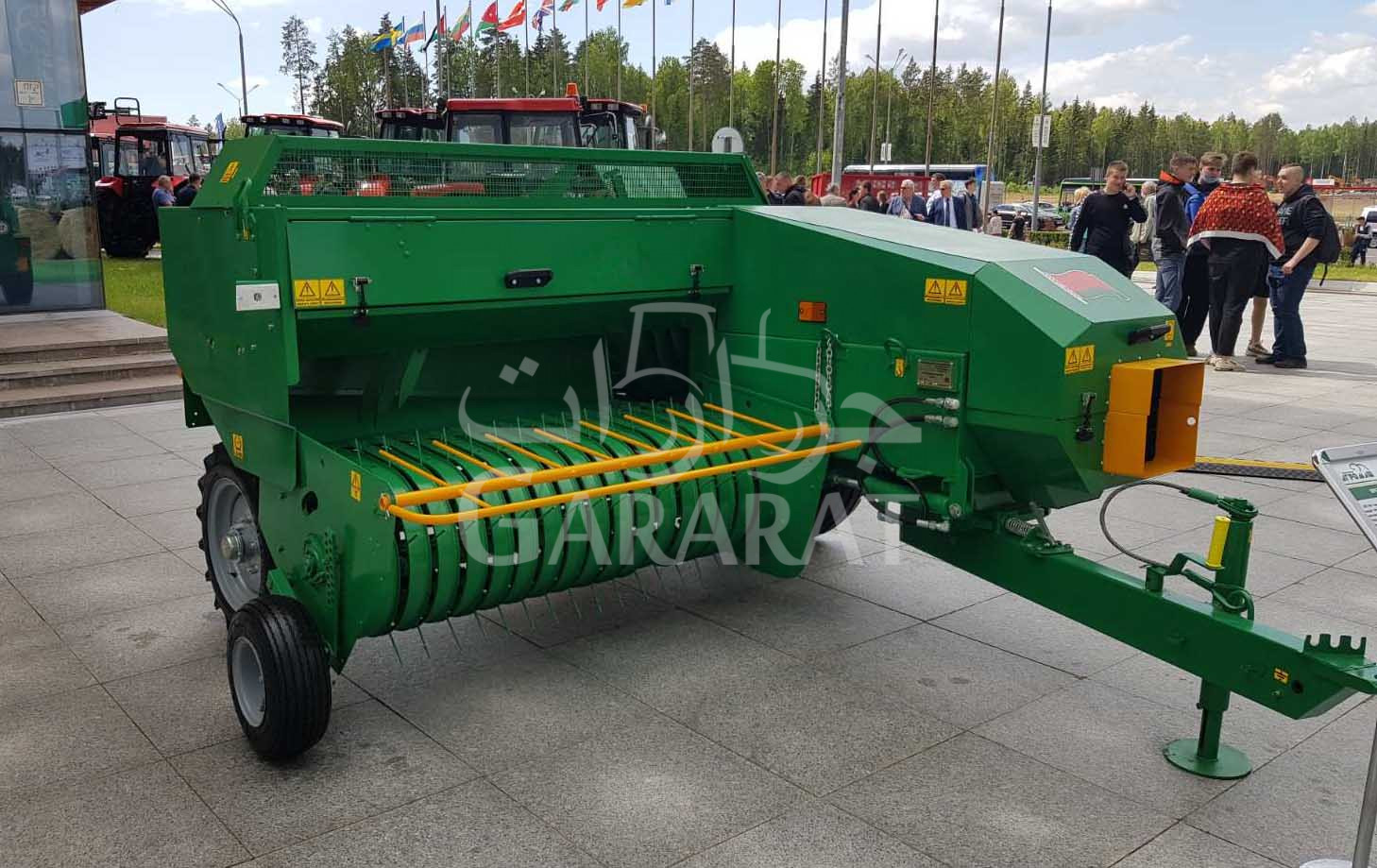

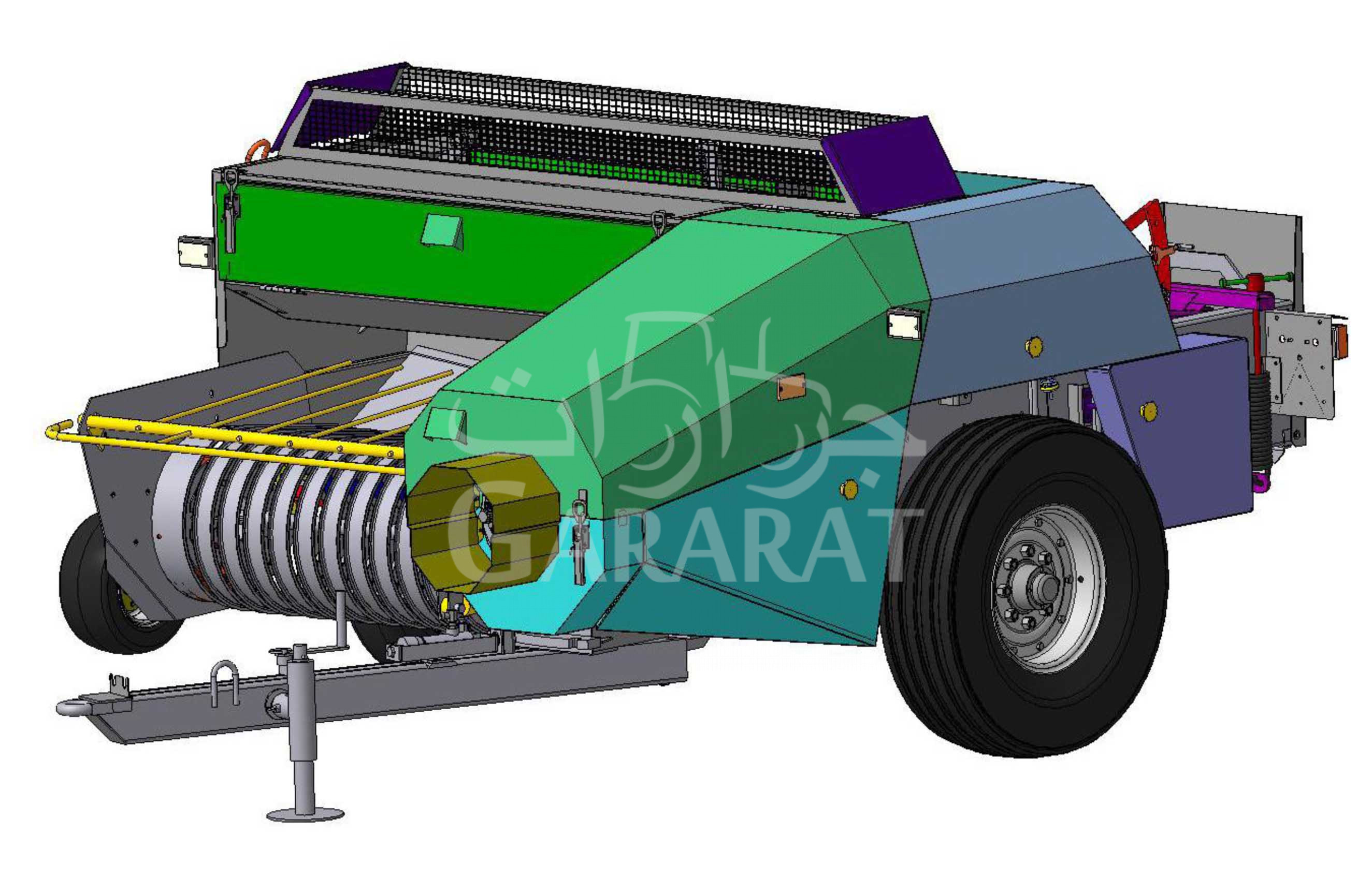

The machine is designed for picking up windrows of hay, straw and pressing them into square bales. It is aggregated with a tractor of 50 – 80 h.p. Powered by the cardan shaft through the tractor PTO, 540 rpm.
Unlike round bales, the square baler allows adjusting the bale density. Besides, the bale overall dimensions and weight are much smaller, which allows bale unloading and distributing not only with the help of machines but manually. It is convenient at further feeding. The baler PPT-160 is designed for application in small farms with low degree of mechanization.
| SPECIFIСATION |
|
| Type |
trailed |
| Bale size, mm: |
|
| - length |
300 - 1300 |
| - width |
460 |
| - height |
360 |
| Bale weight with a length of 1.0 m, kg: |
|
| - on hay with moisture content from 20% to 22% |
33 |
| - on straw with a moisture content of 10% to 20% |
26.5 |
| Square of the outlet, cm squ |
1540 |
| Pick-up working width, mm |
1650 |
| Efficiency, t/h |
4 - 7 |
| Number of piston strokes, 1/min |
100 |
| Operating speed, km/h |
5 - 10 |
| Overall dimensions, mm: |
|
| - length |
4120 |
| - width |
2725 |
| - height |
1665 |
| Weight, kg |
1750 |
| Drawbar category of the tractor, h.p. |
50 - 80 |
