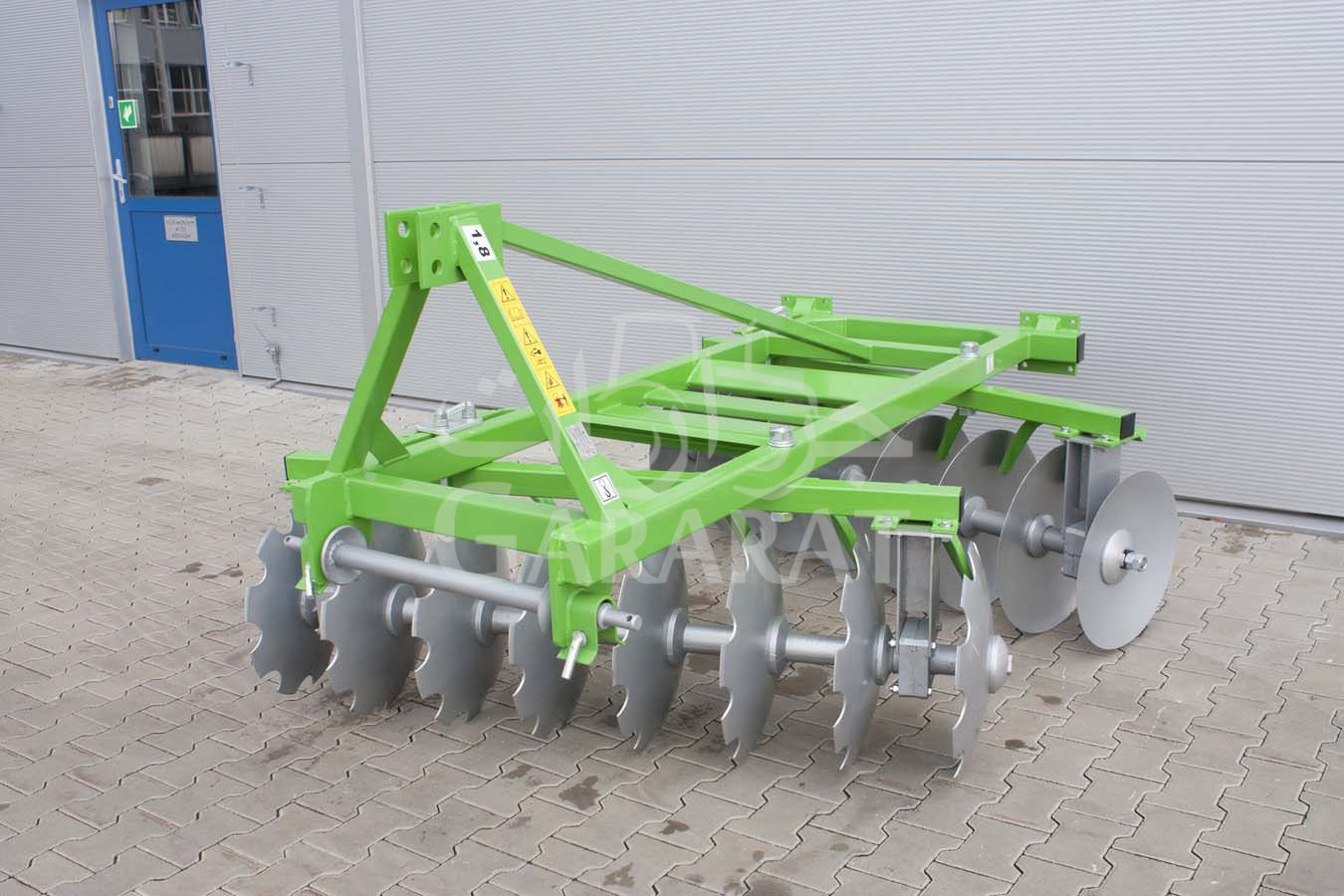

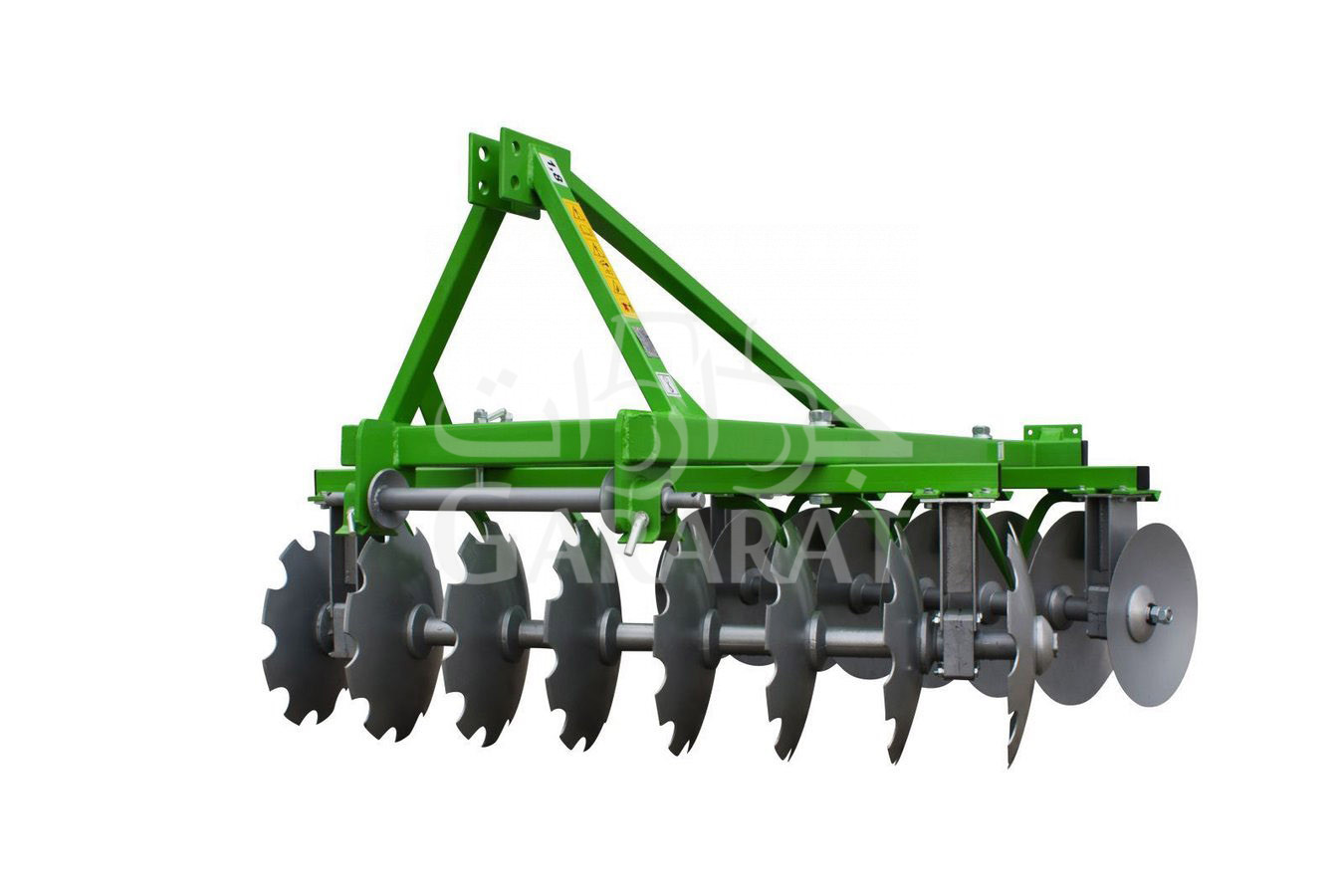

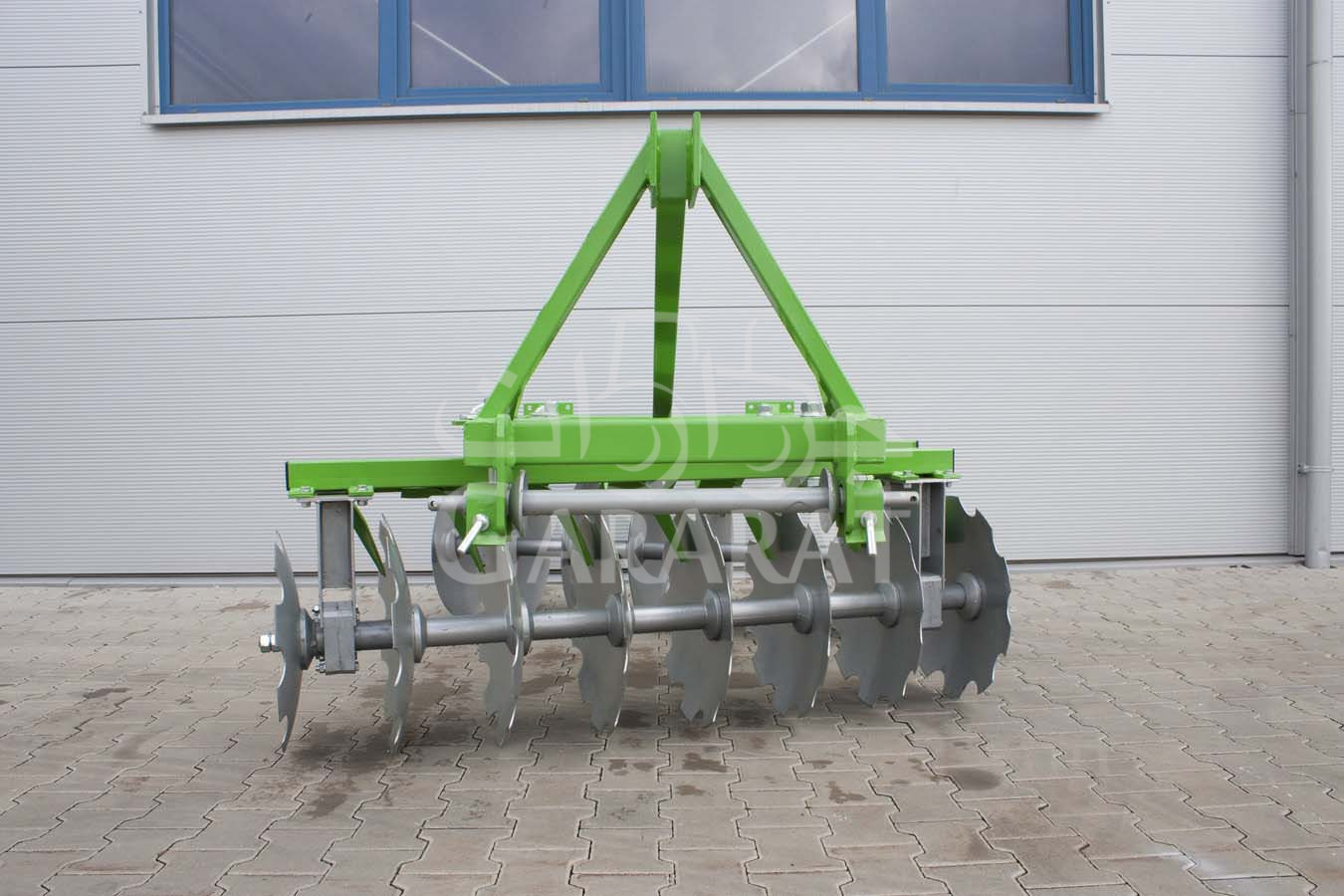

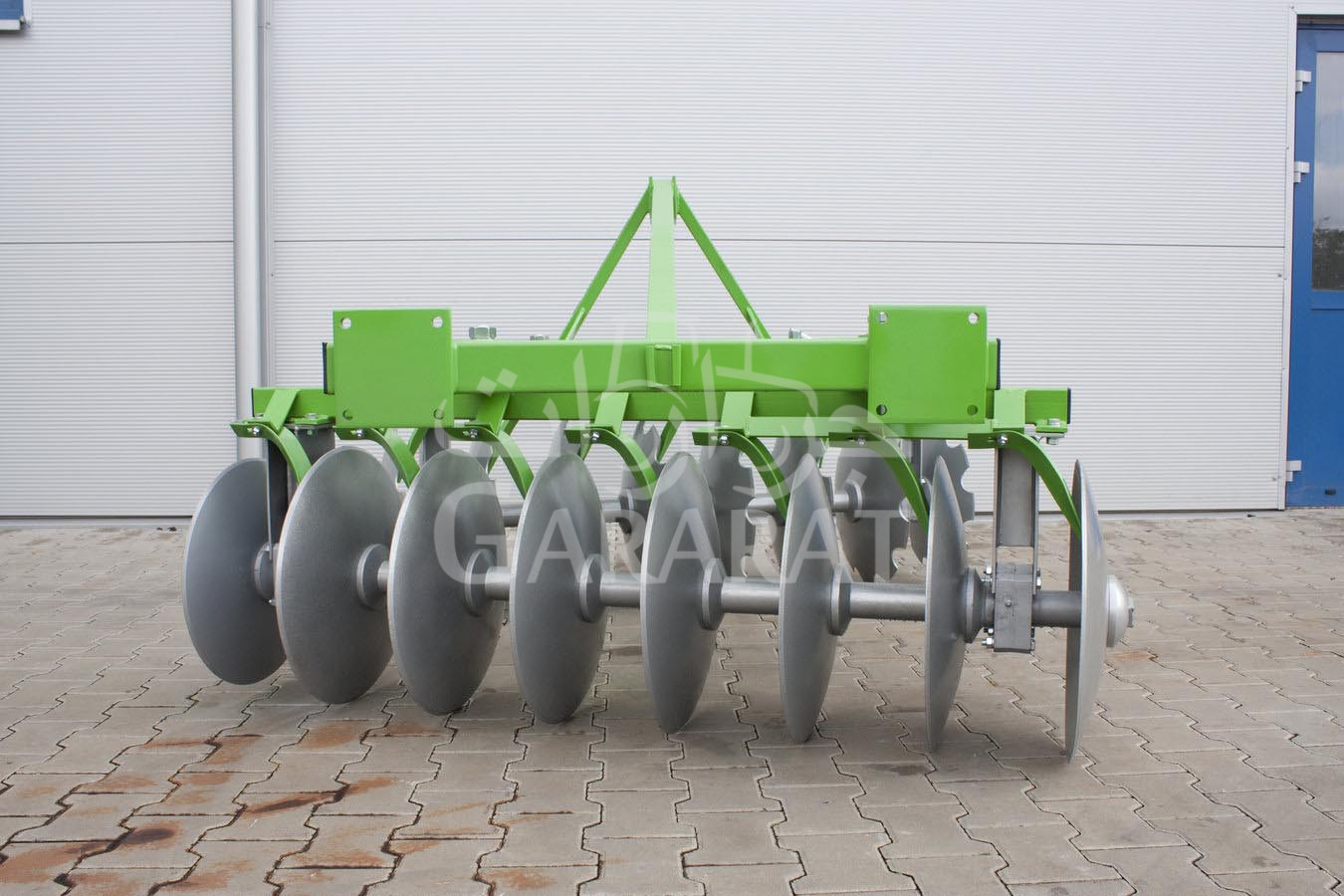

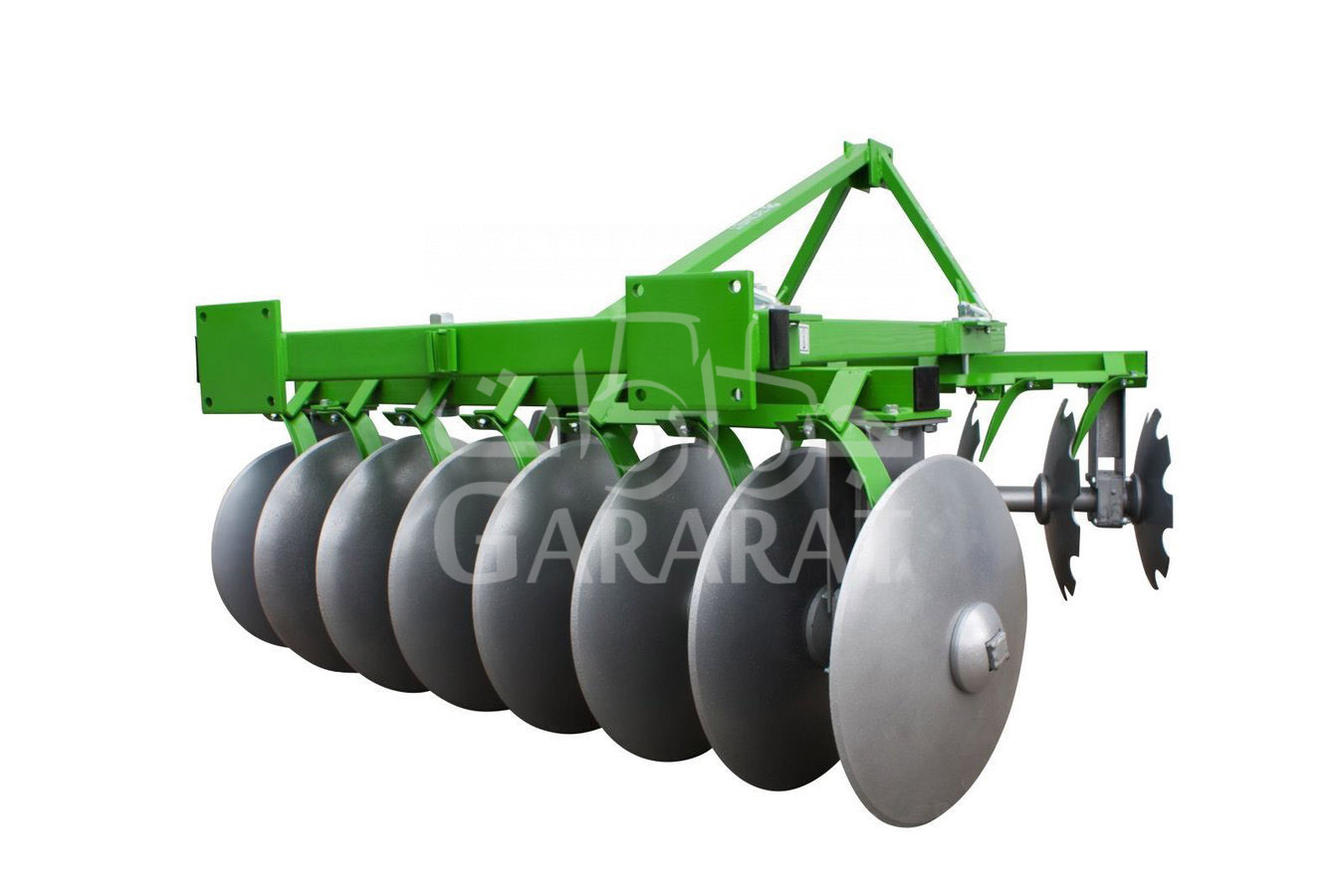

Mounted disc harrow GARARAT DH are an implement designed for pre-seed tillage of heavy soil (except stony fields) when the humidity ensure the proper working conditions. The machine can also be used to rip and crush grassland and can be also used for stubble field skimming just after plant cutting.
In the series of 2-sections in the V-system, there are harrows with widths from 1,5 m to 2,7 m. Adjusting the rake angle of the discs in the range from 7° to 22° allows you to get the right quality of work depending on the changing conditions and type of soil. Each machine can be equipped with rear roller.
Discs with a diameter of 510 mm or 560 mm were used in the disc harrow. The working depth is 6 - 16 cm.

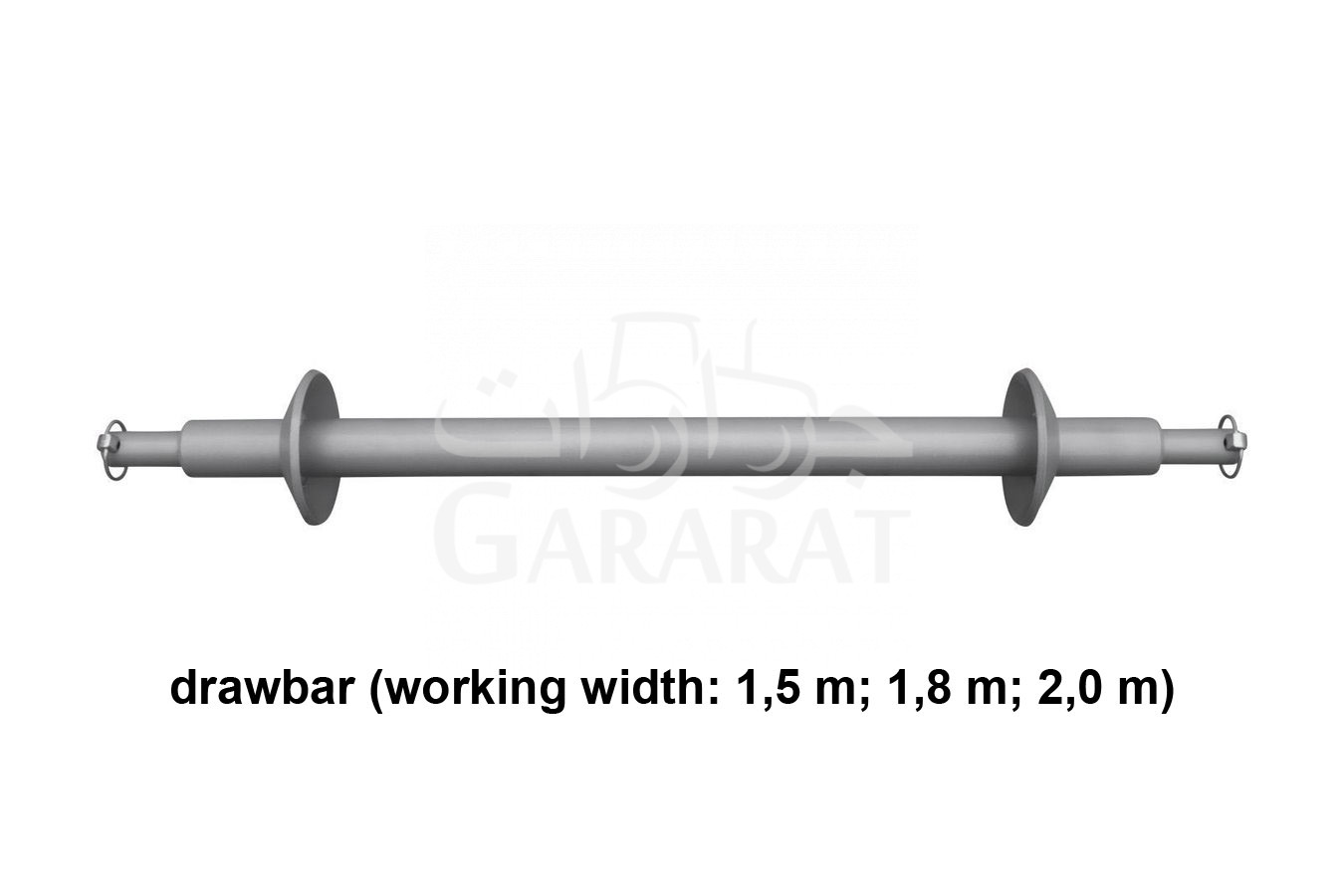

The disc harrow is equipped with a drawbar for easier connection of the machine to the tractor.

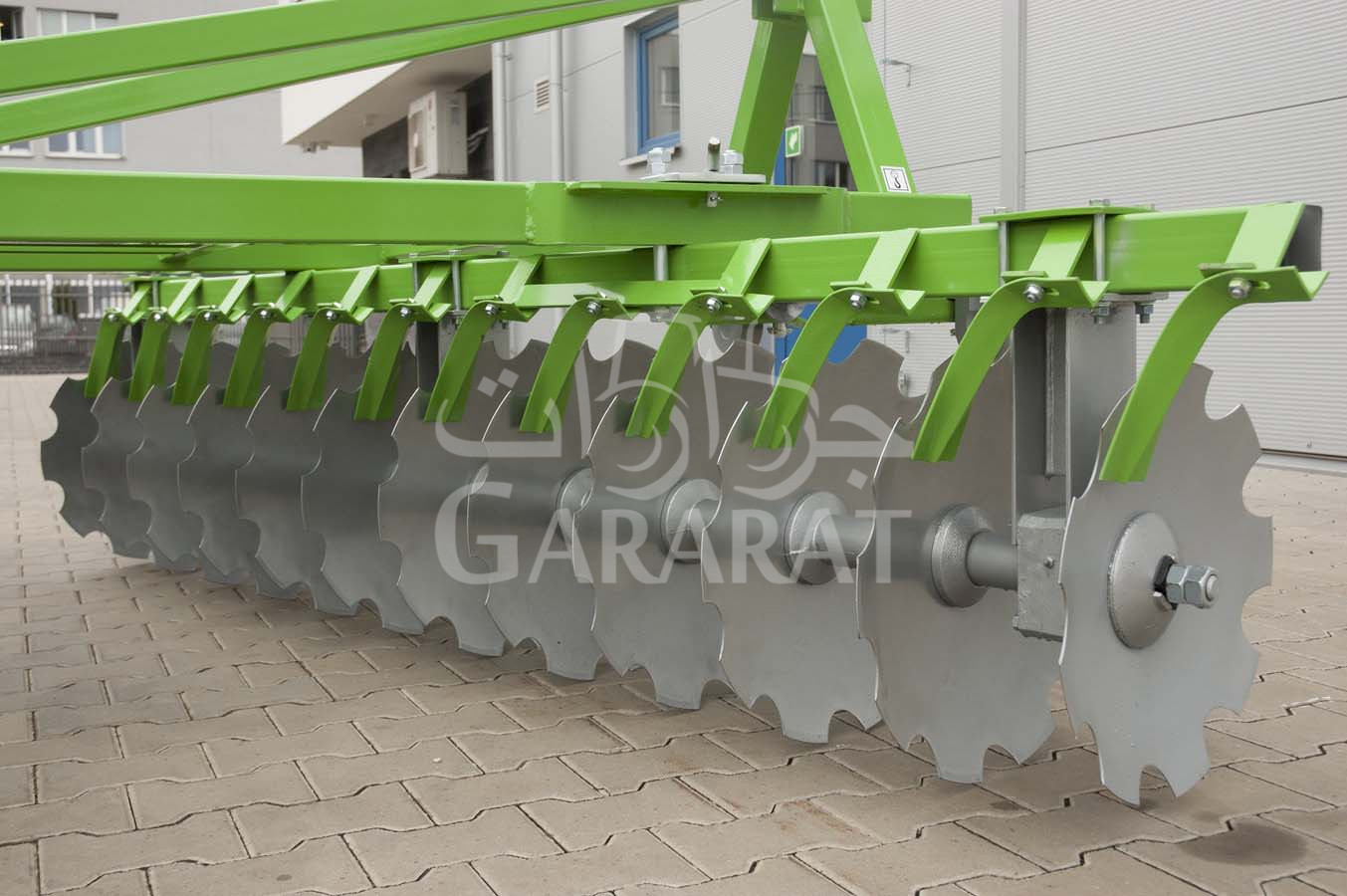

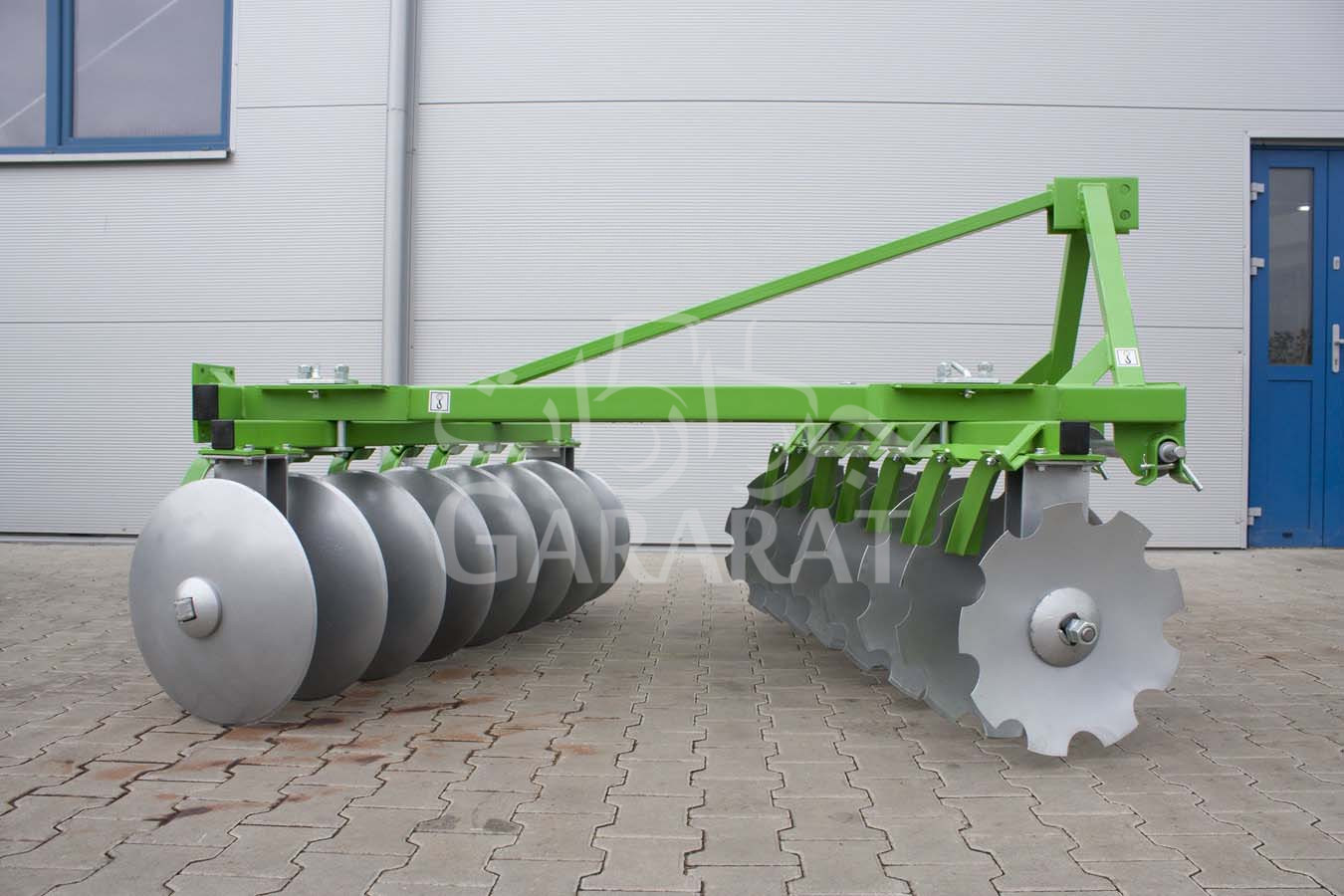

The harrow can be equipped with 2 sections with toothed discs or the front section with toothed discs and the rear section with plain discs.
| SPECIFICATION |
|
| Harrow type |
type V |
| Working width of capture, m |
2.0 |
| Working depth, cm |
6 -16 |
| Number of sections, pcs |
2 |
| Number of disks, pcs |
9 + 9 |
| Disc diameter, mm |
510 / 560 |
| Distance between discs, mm |
230 |
| Disk type |
spherical |
| Rake angle of the discs (°) |
7 - 22 |
| Number of bearing housing, pcs |
4 / 6 |
| Machine weight (discs 510 mm), kg |
420 |
| Machine weight (discs 560 mm), kg |
460 |
| Drawbar category of the tractor, h.p. |
55 - 70 |
| Hitch type |
mounted |
| Complimentary options |
|

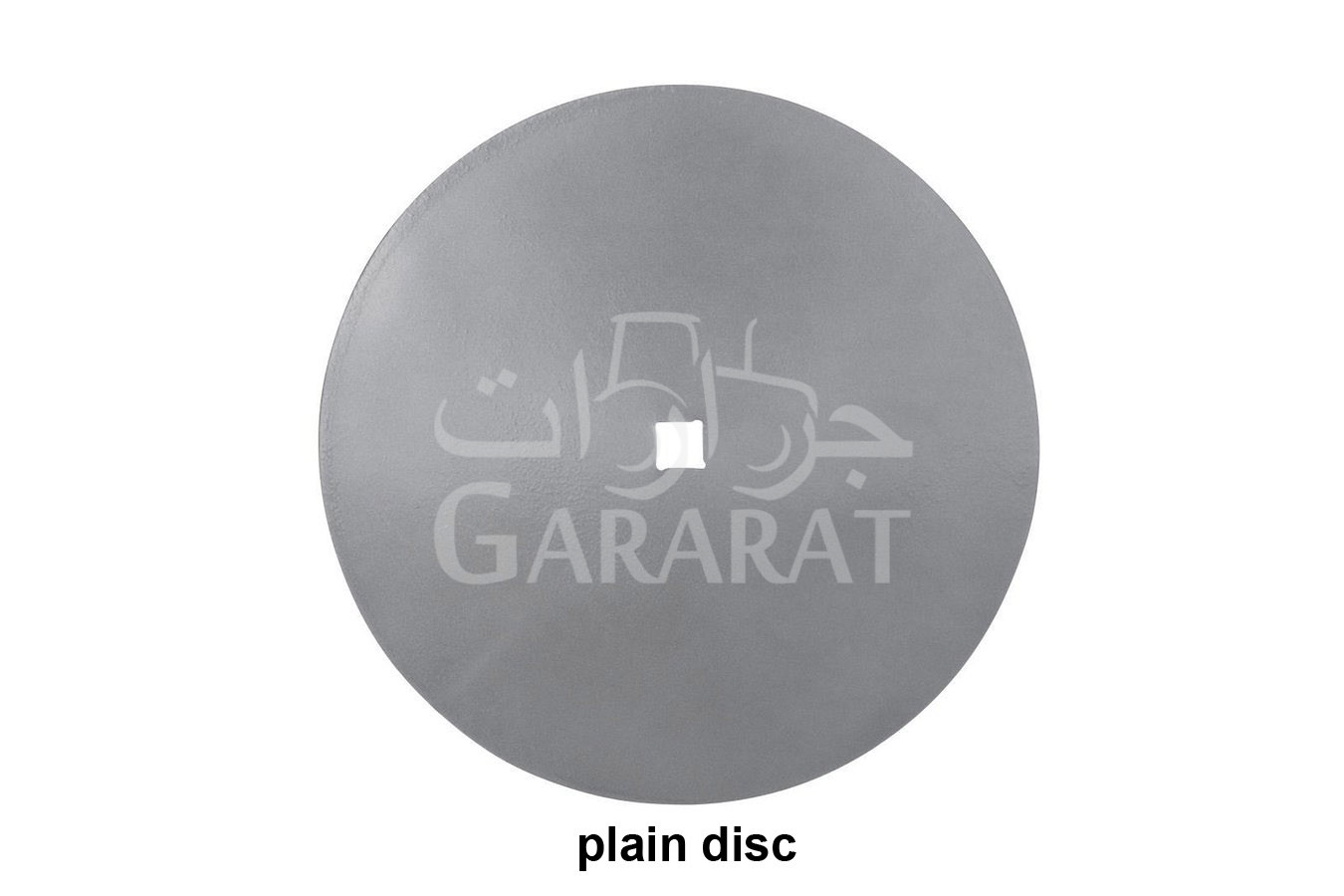

| Plain disc |
|

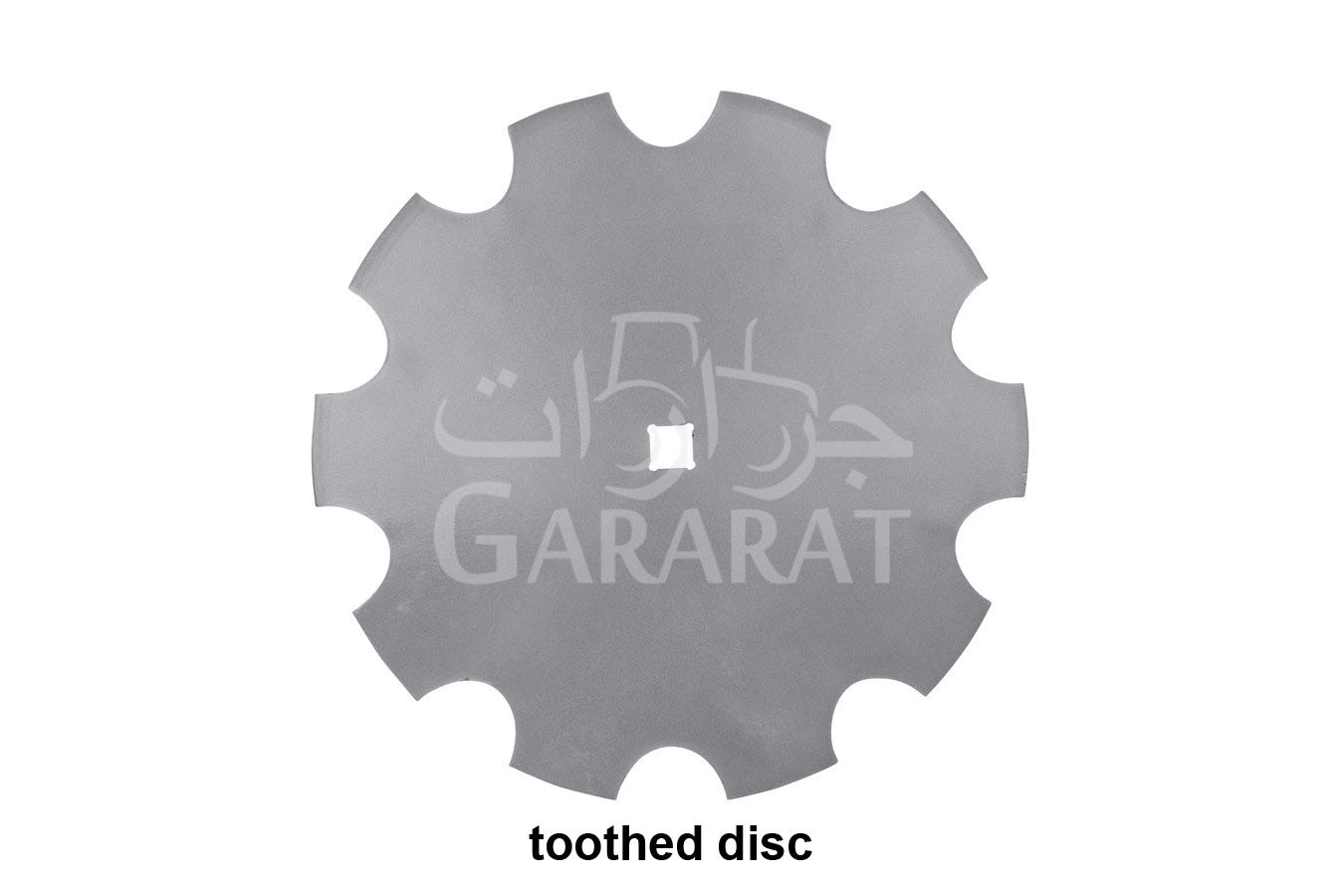

| Toothed disc |
|
| Additional options |
|

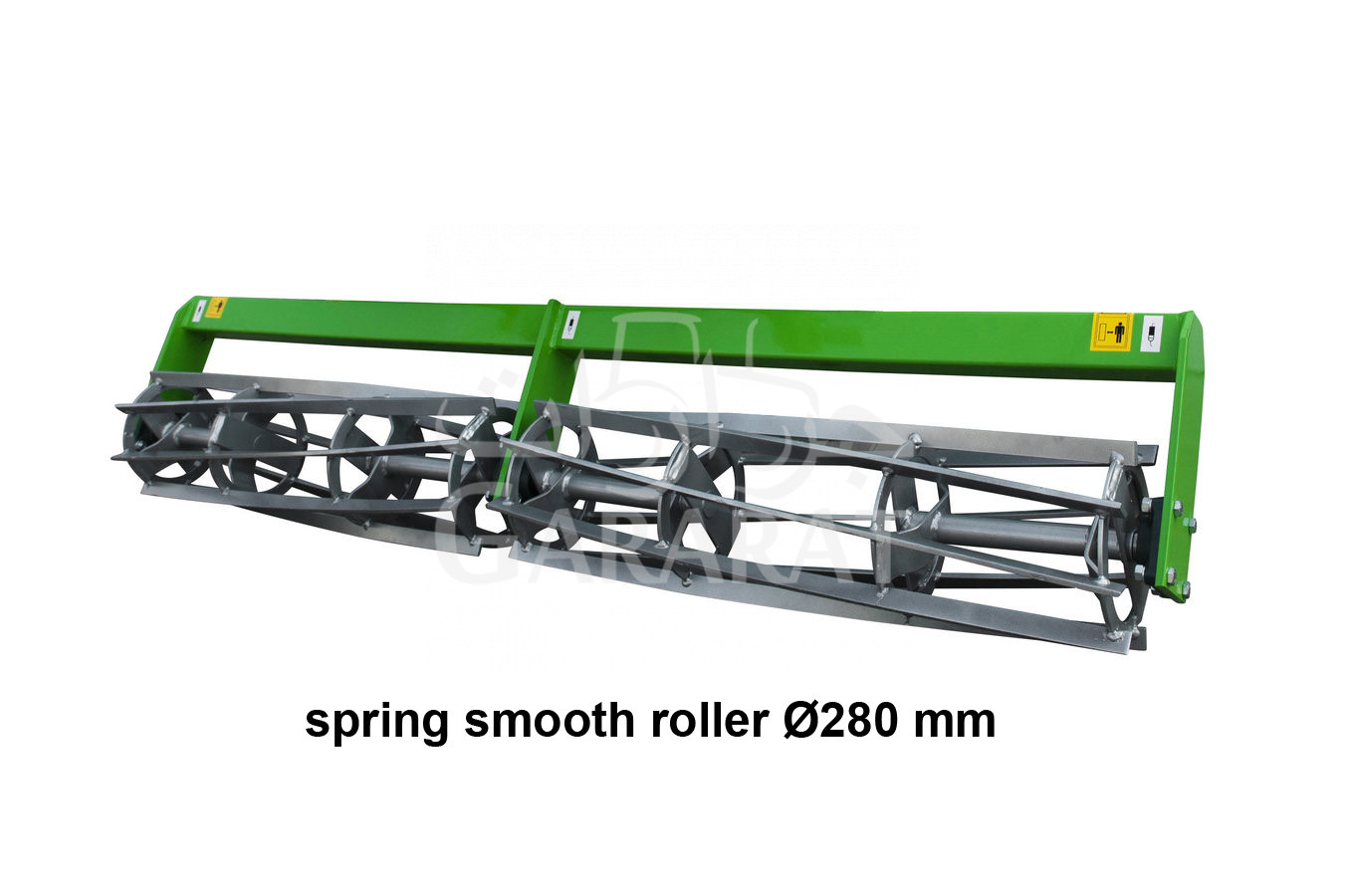

| Spring smooth roller Ø280 mm |
weight 135 kg |

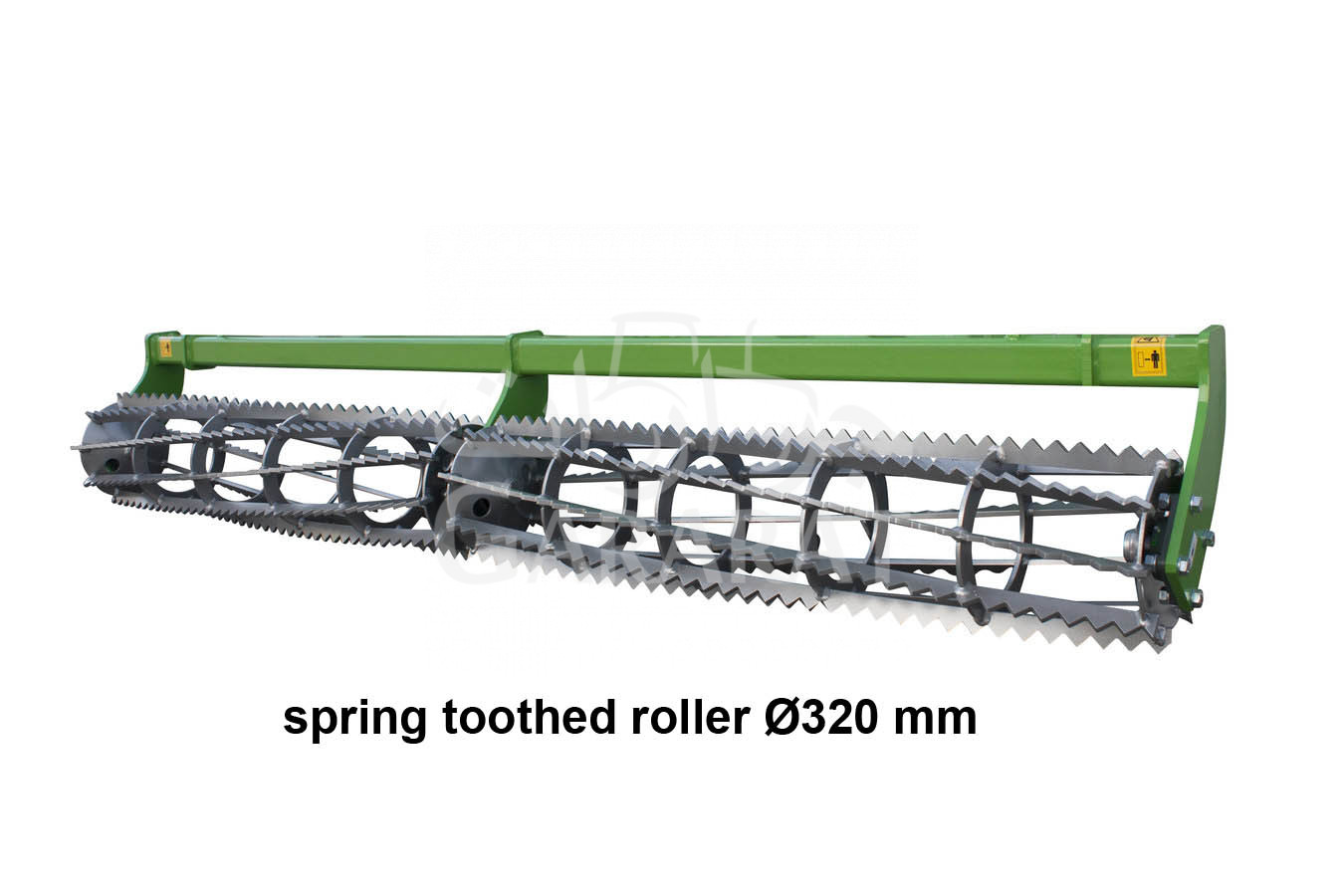

| Spring toothed roller Ø320 mm |
weight 180 kg |

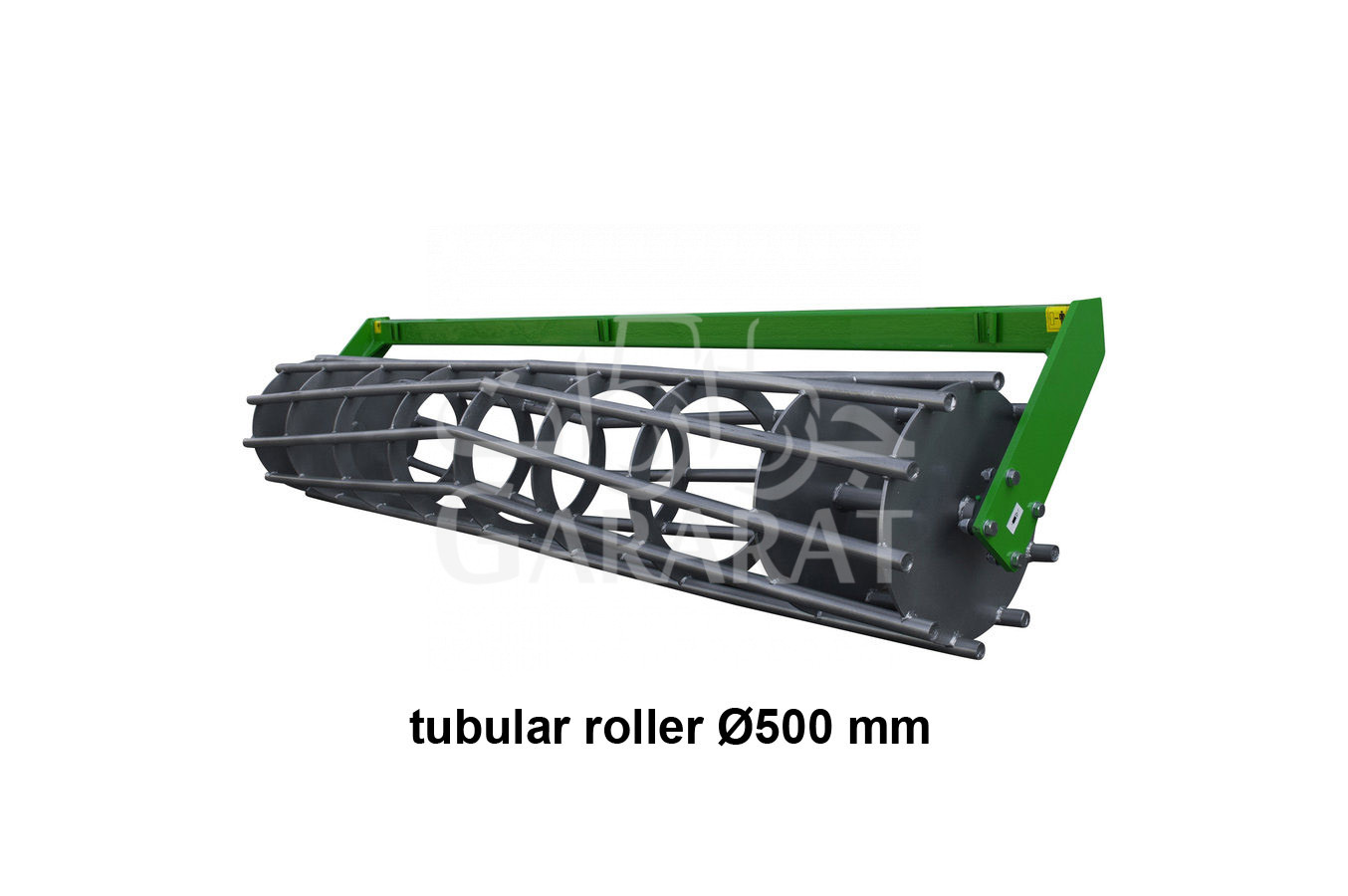

| Tubular roller Ø500 mm |
weight 210 kg |
