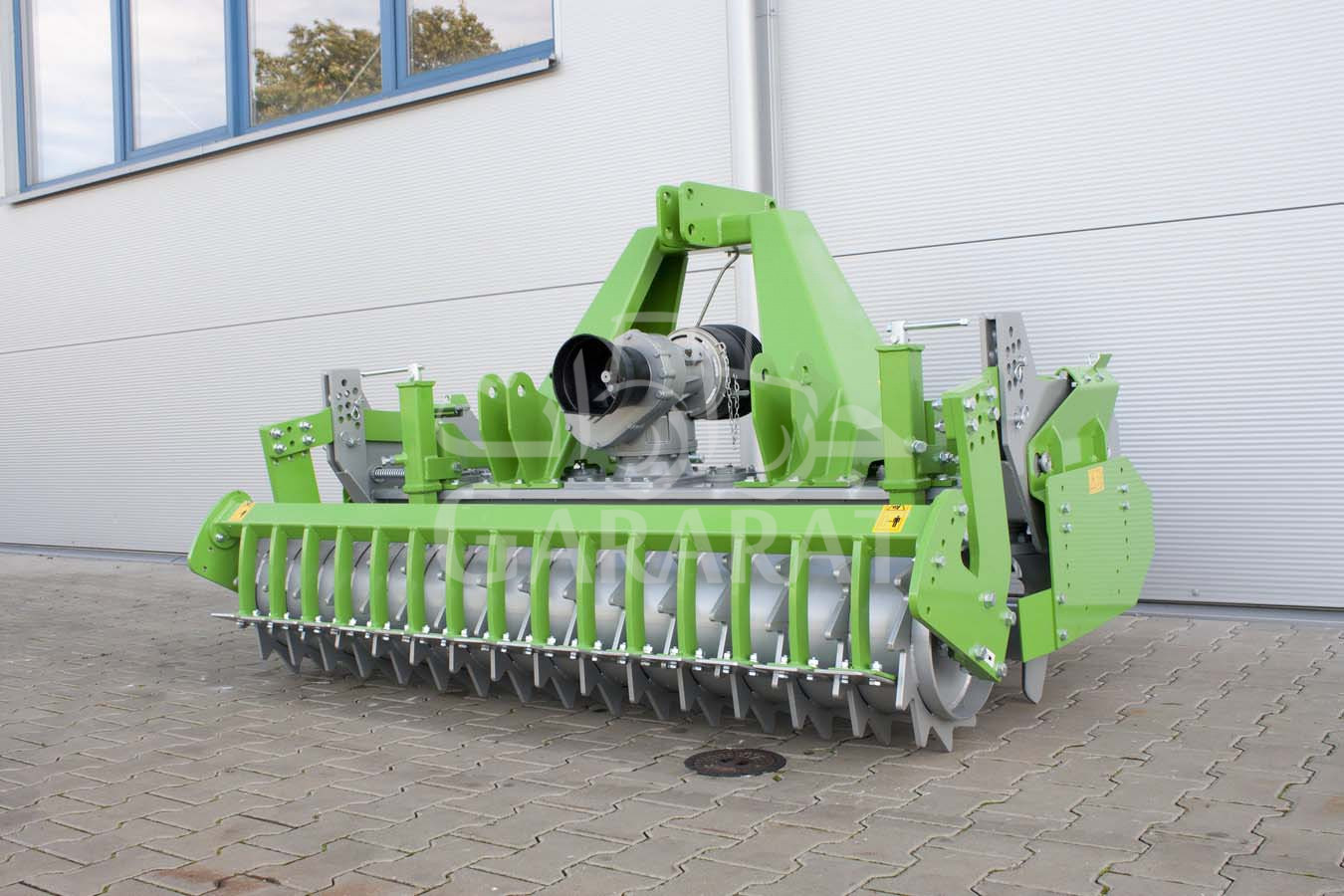

Power harrow GARARAT PH are used for cultivation of soil after plowing and for sowing on mulch.

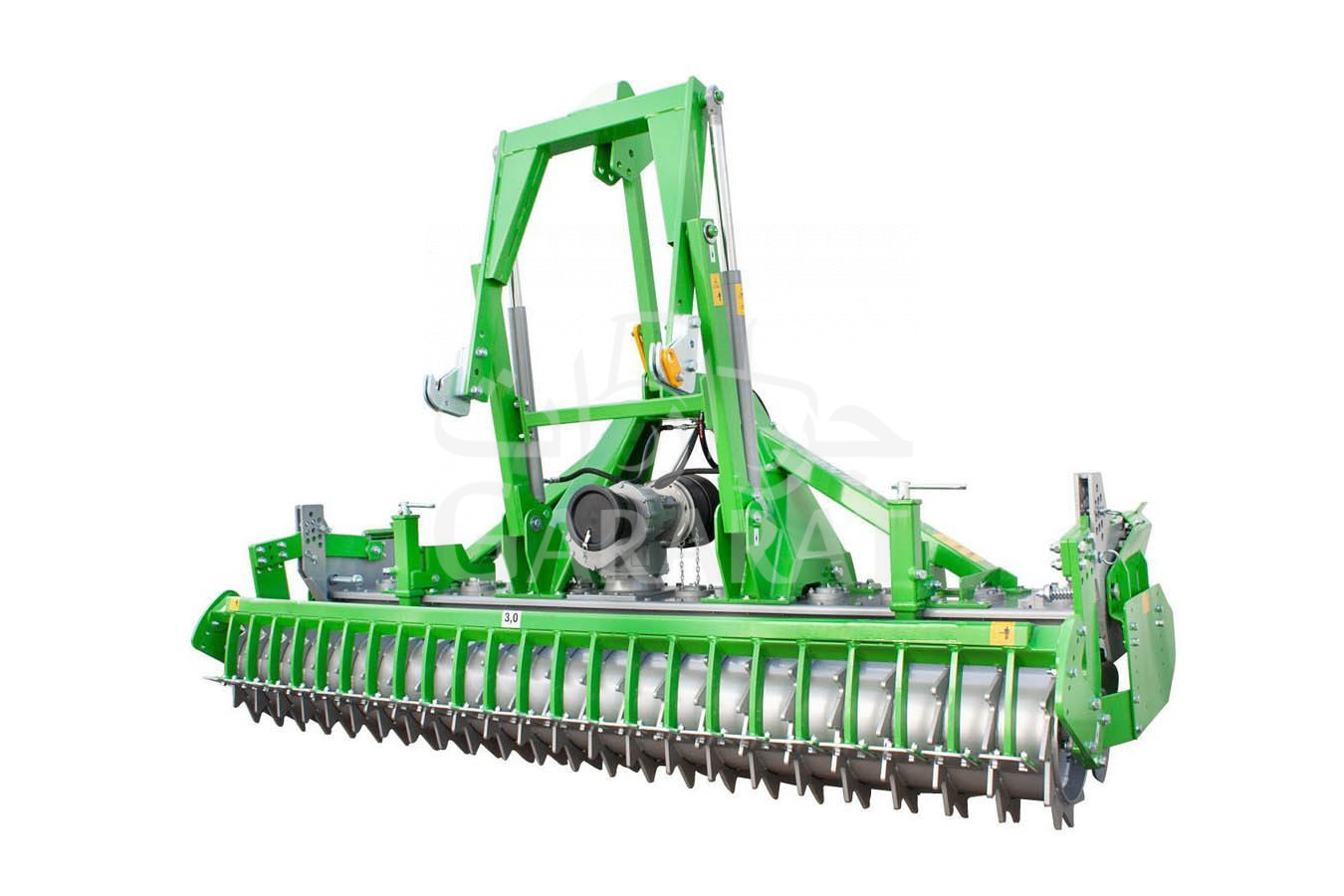

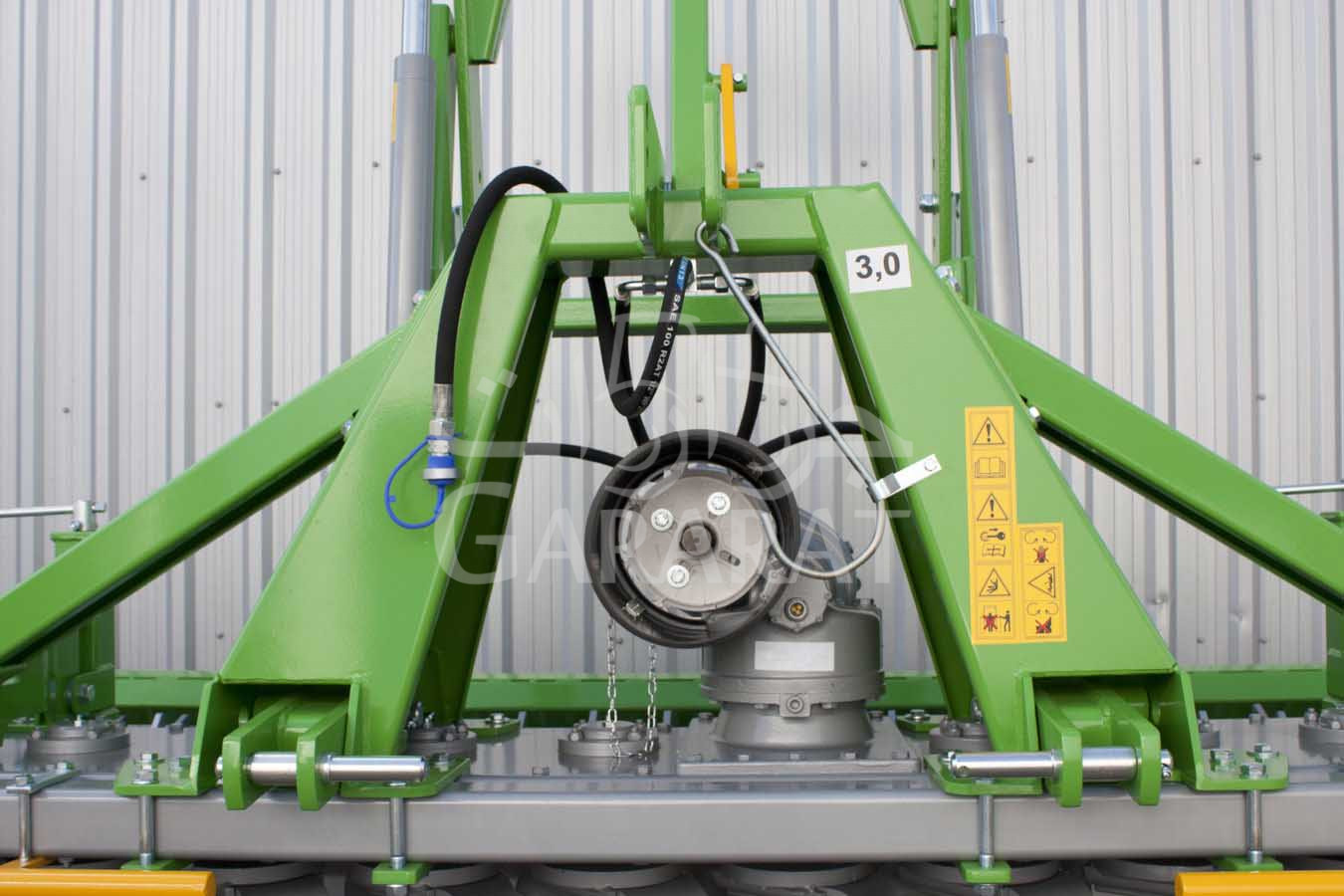

The three-point suspension linkage is supported on a large width and ensures optimum power transfer. Movable arms with lower catches catenary category provide optimal alignment with uneven terrain between the tractor and the suspended machine.

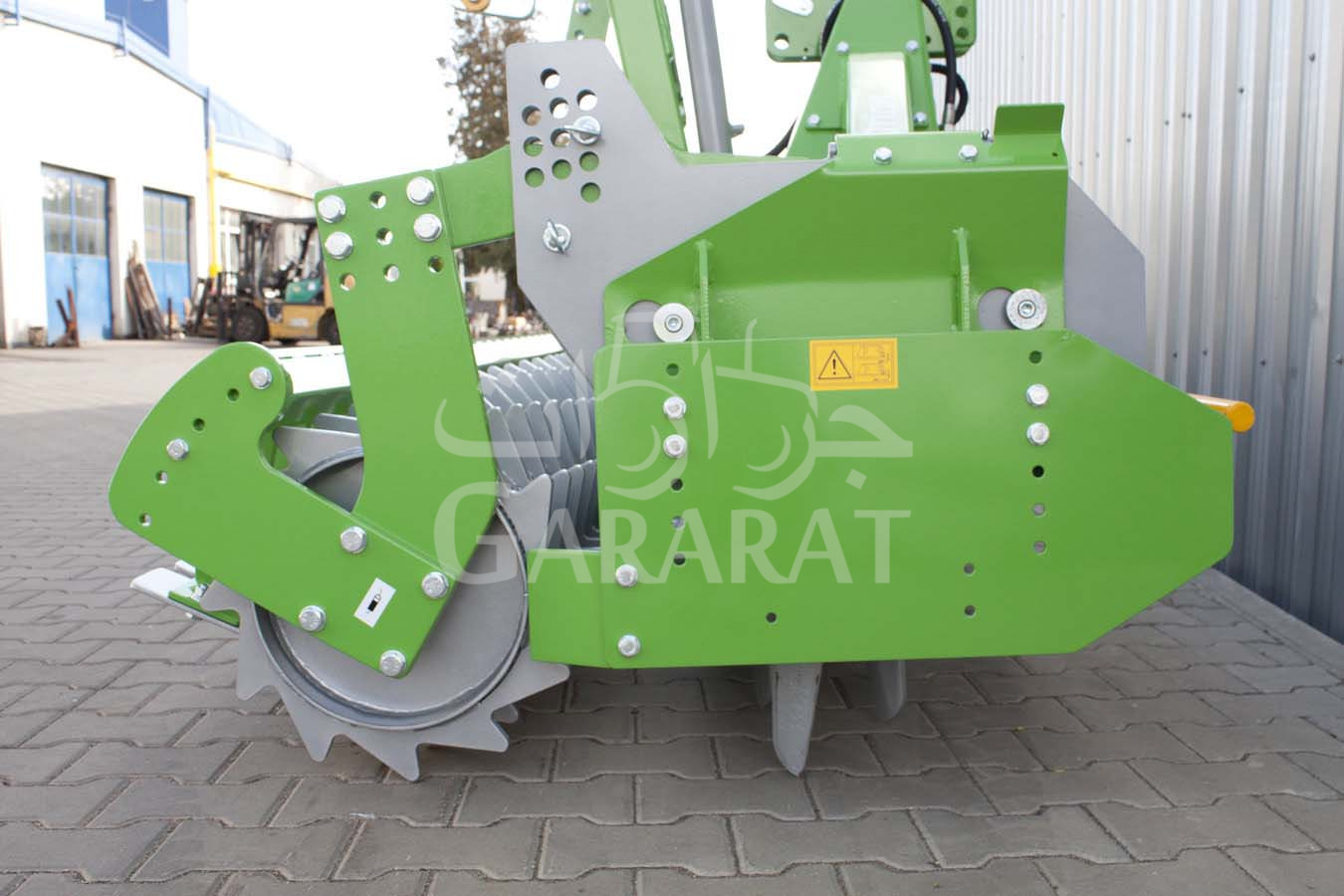

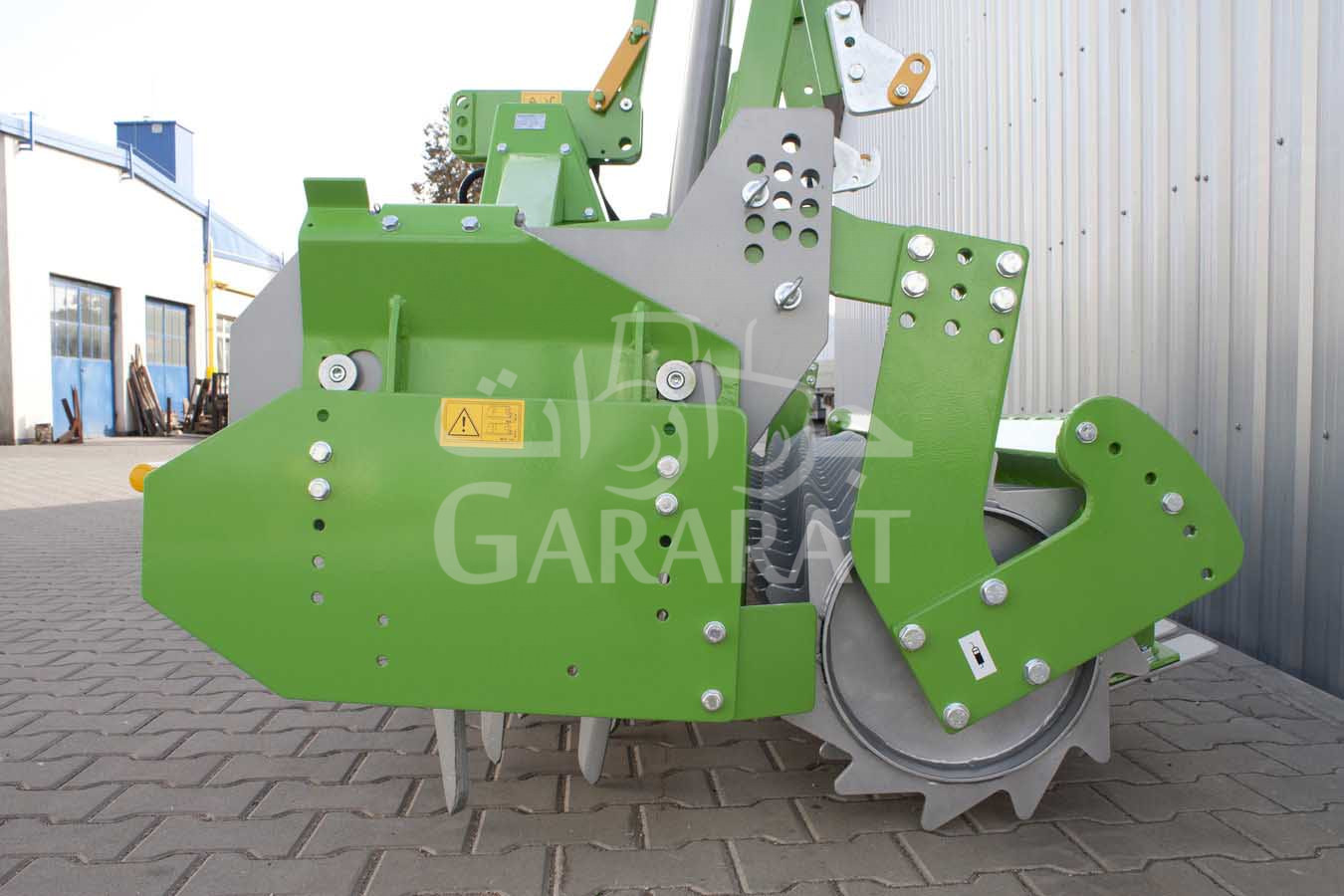

Side deflectors have a double action as a cover against the threat and as a side stop for the treated soil and lumps. The side deflectors ensure uniformity of the field treatment and prevent the formation of mounds on the combination of one and the other pass. In the working position, the deflector must always be in contact with the surface of the field, so as not to damage it and limit its operation. It should be recessed at about 10 mm.

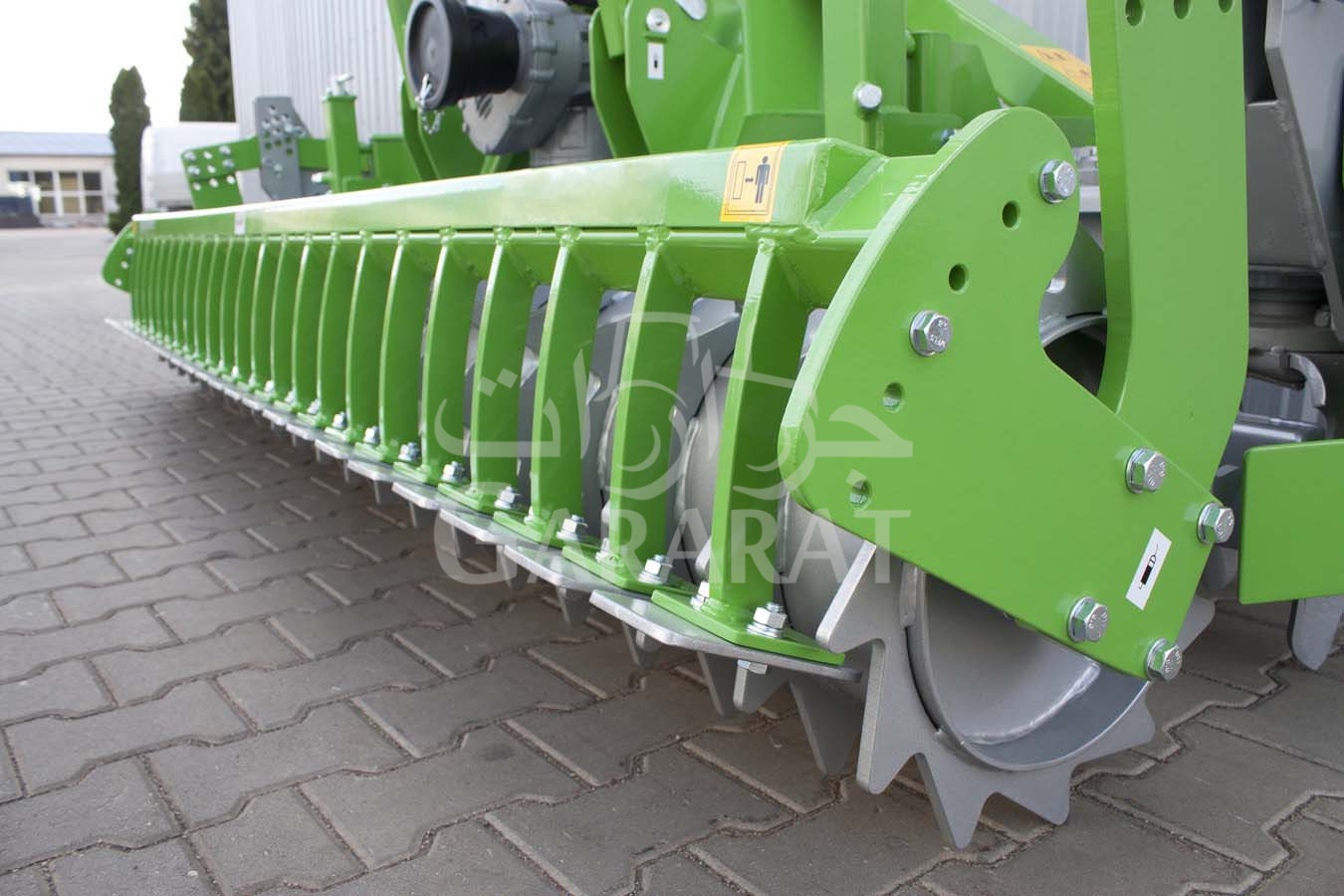

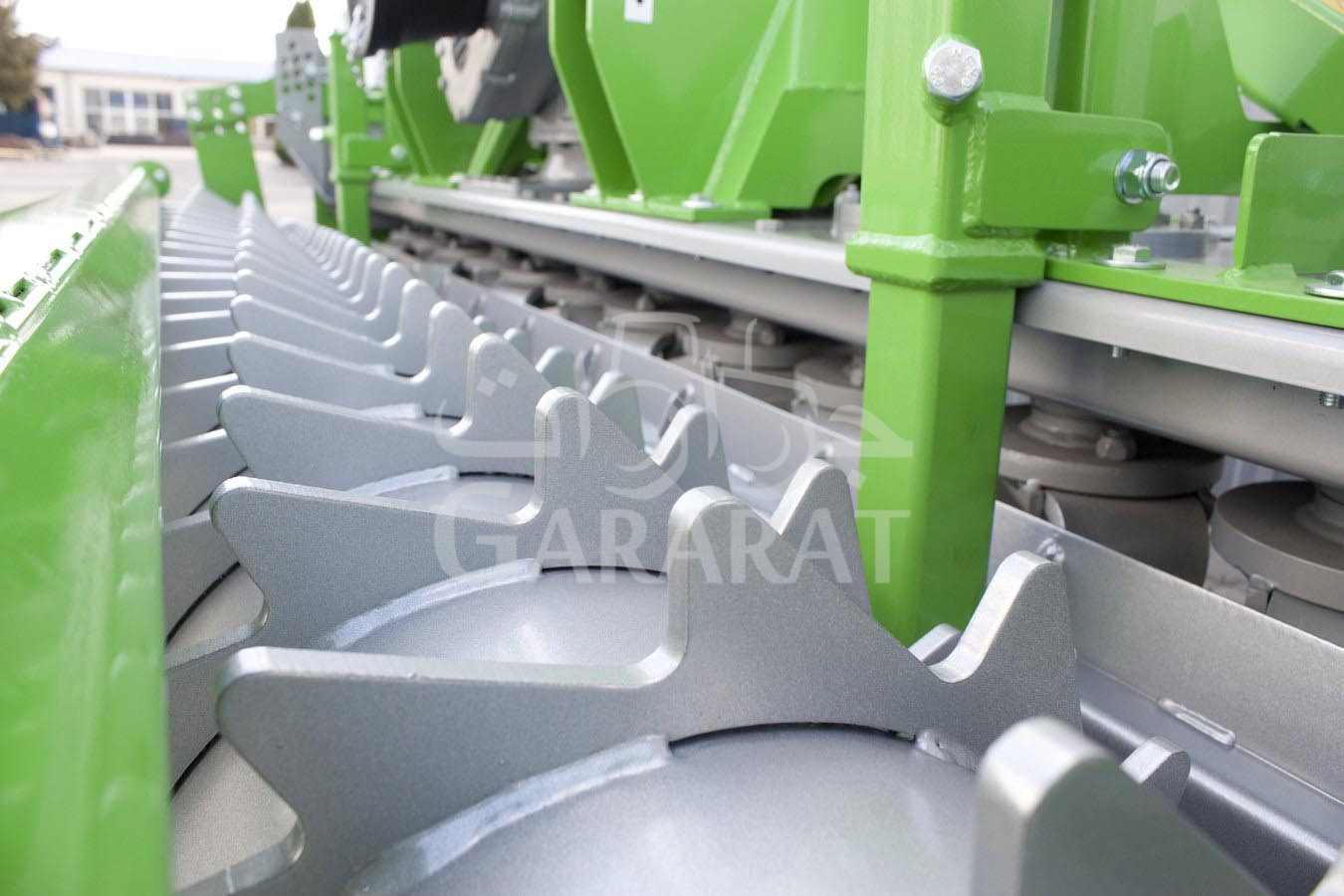

The working depth (20 cm) is determined by positioning the rear roller.
The power harrow is equipped with PTO shaft, leveling board, and hydraulic coupler (two hydraulic cylinders) as a standard.
| SPECIFICATION |
|
| Working width, mm |
3000 |
| Working depth, cm |
to 20 |

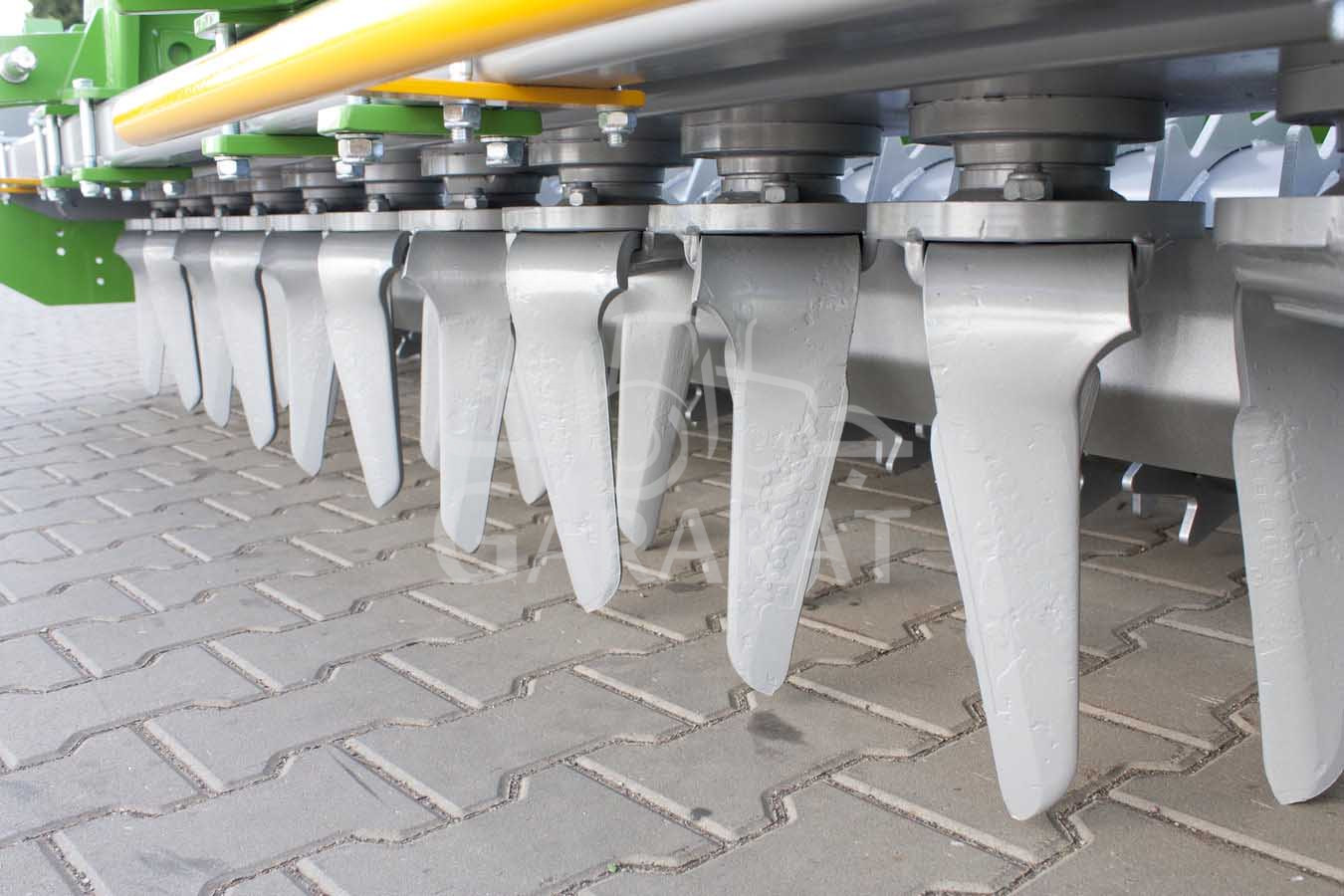

| Number of knives, pcs |
24 |
| Number of rotors, pcs |
12 |
| Weight with string roller (Ø320 mm), kg |
1270 |
| Weight with tubular roller (Ø385 mm), kg |
1300 |
| Weight with packer roller (Ø465 mm), kg |
1550 |
| Drawbar category of the tractor, h.p. |
122 - 150 |
| Complimentary options |
|

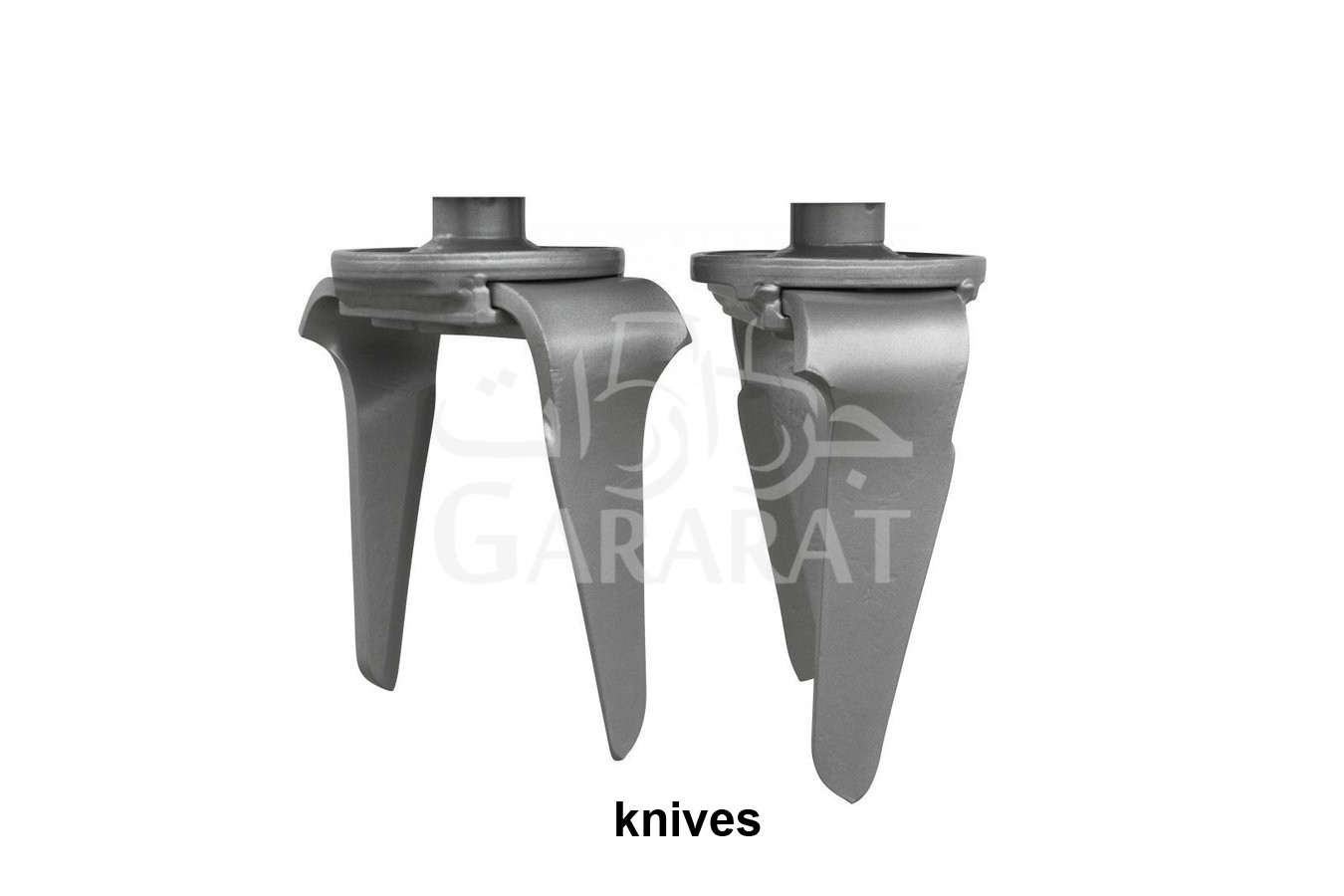

| Knives |
|

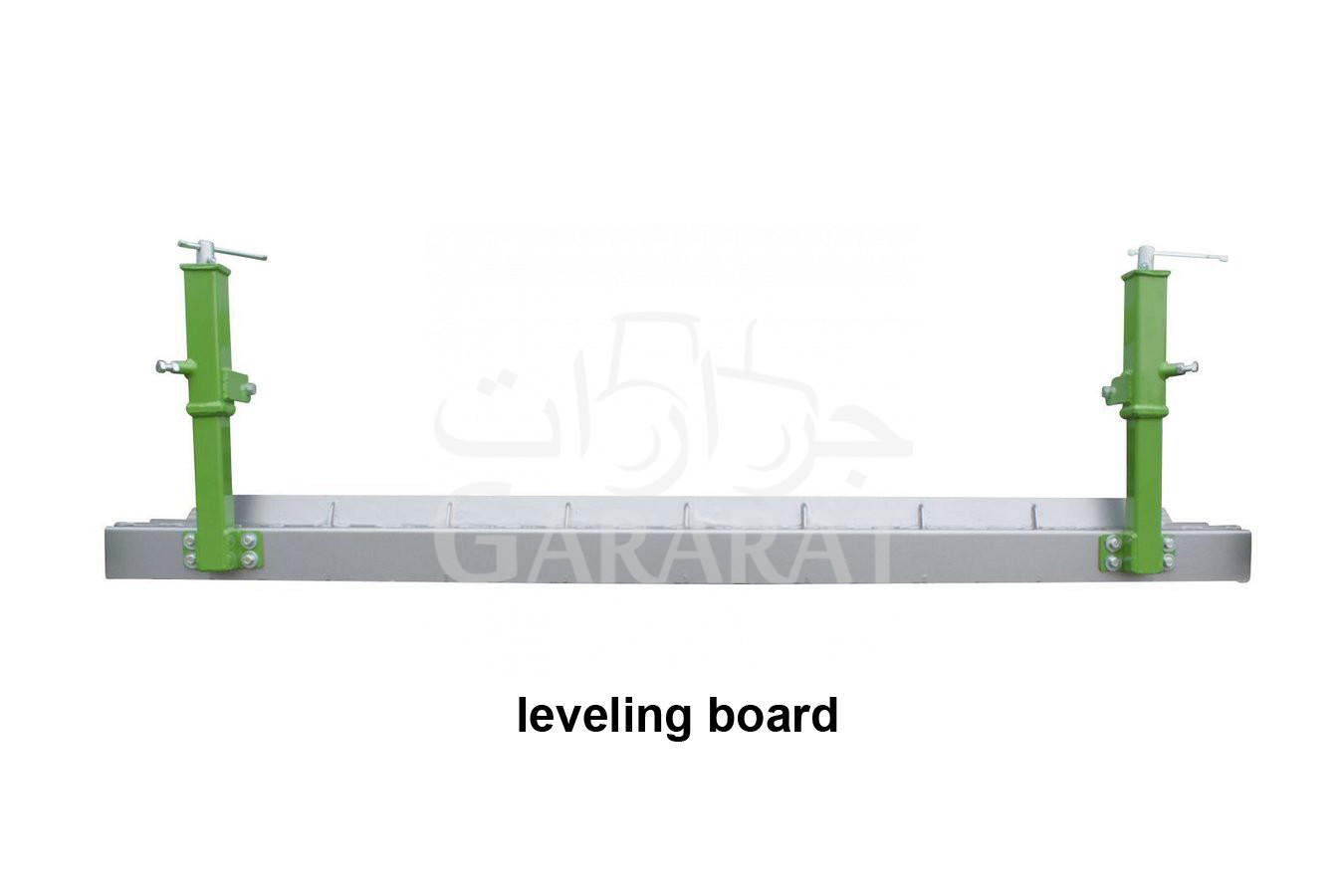

| Leveling board |
|

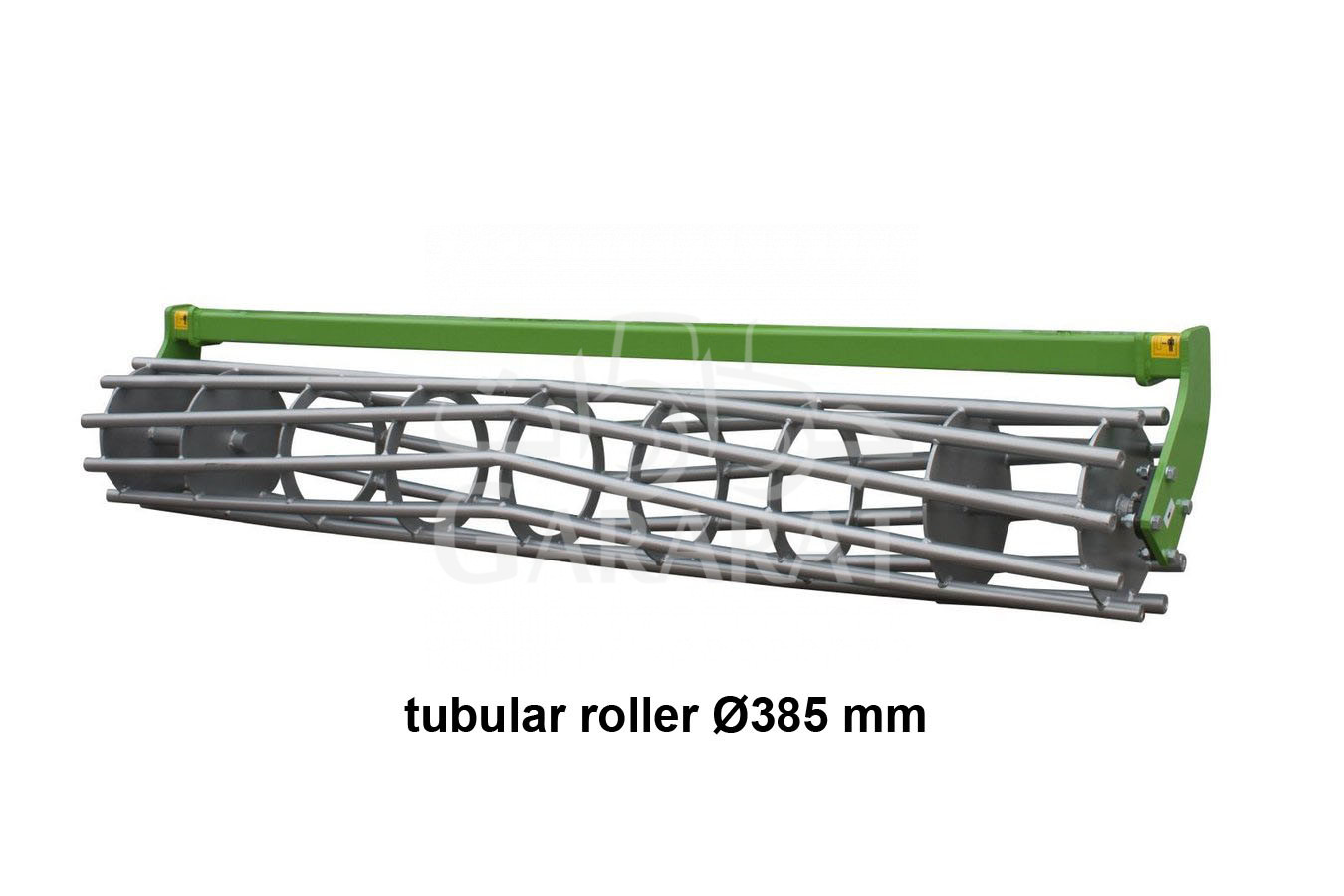

| Tubular roller Ø385 mm |
|

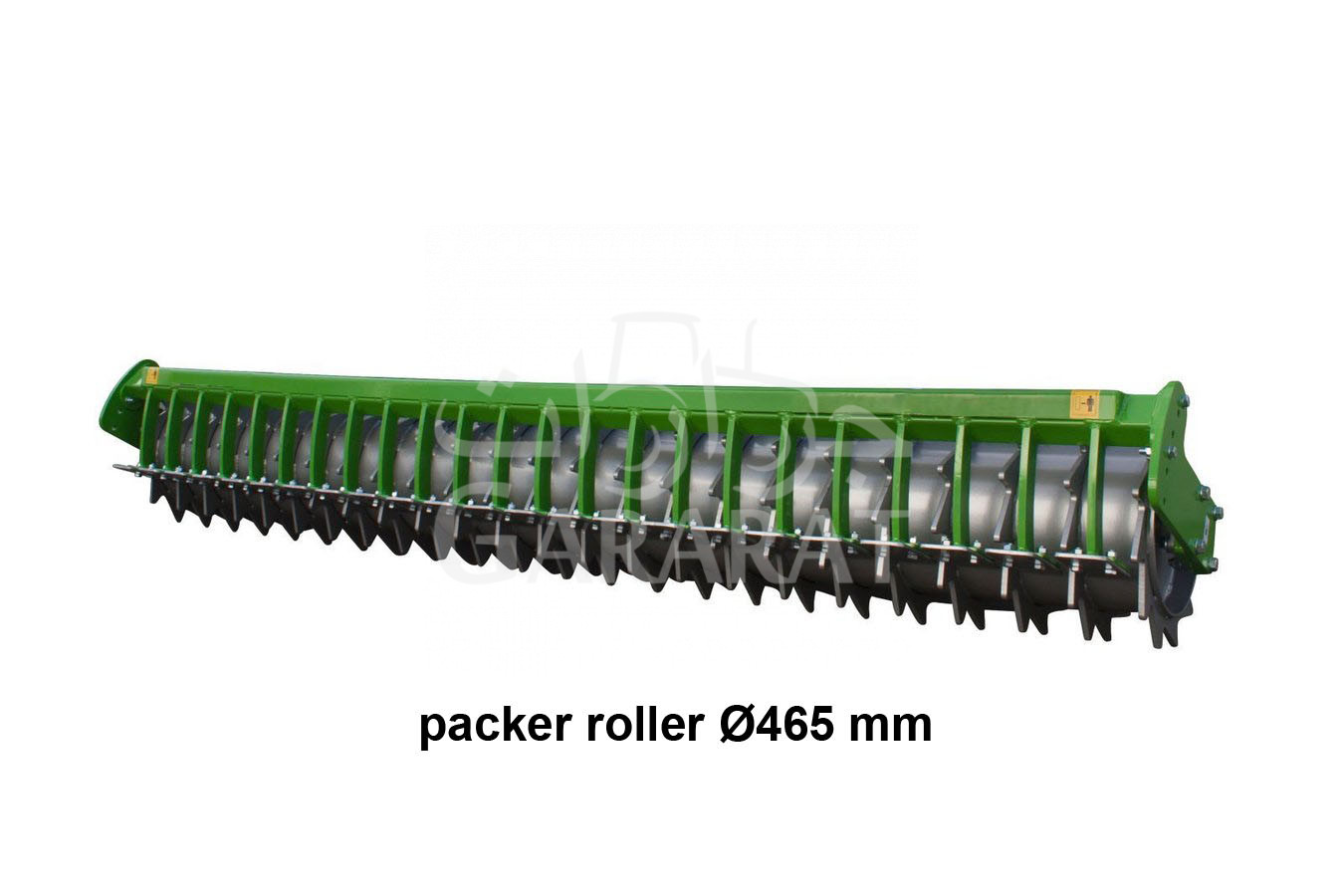

| Packer roller Ø465 mm |
|
| String roller Ø320 mm |
|
| PTO shaft |
|
