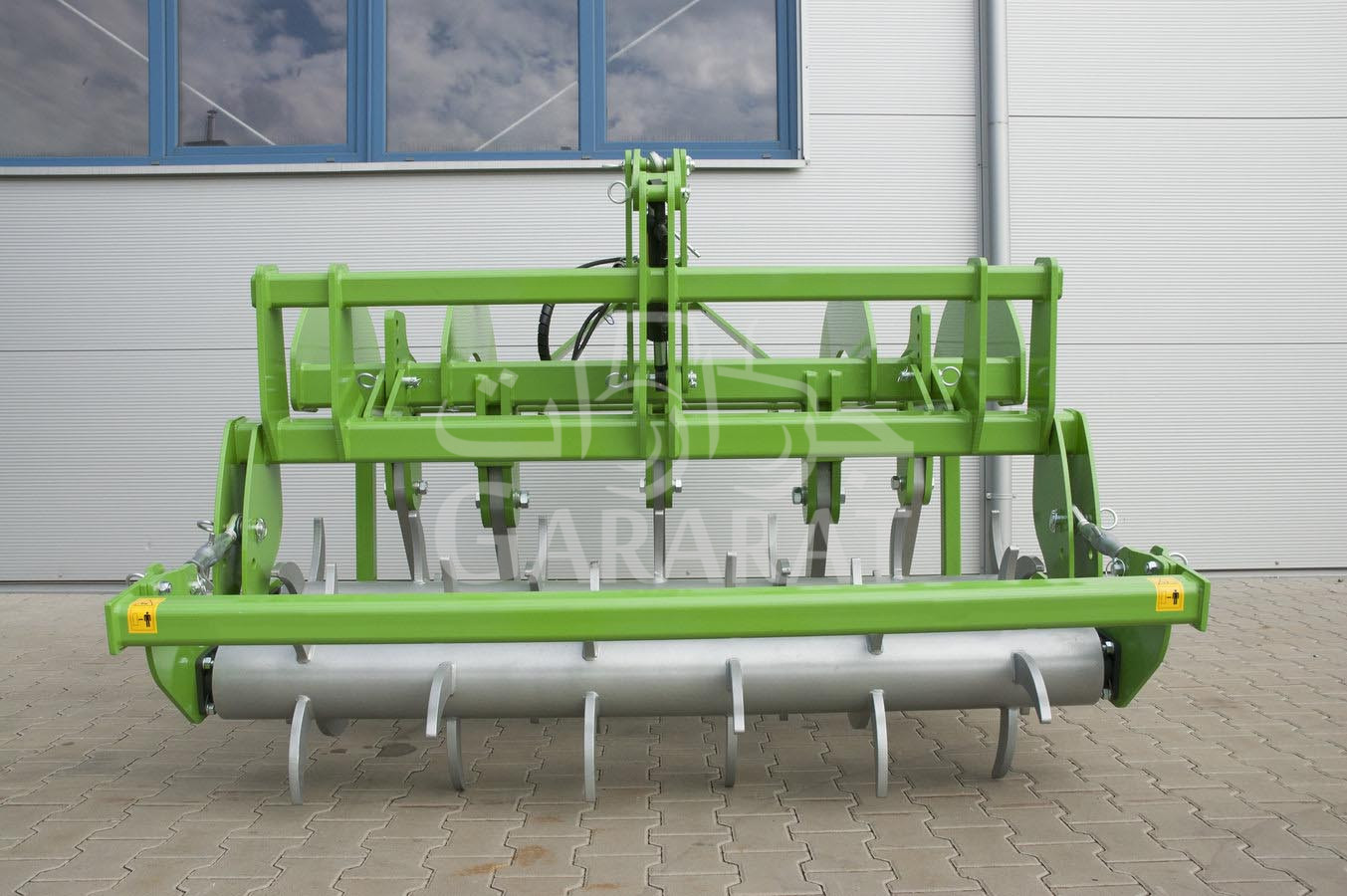

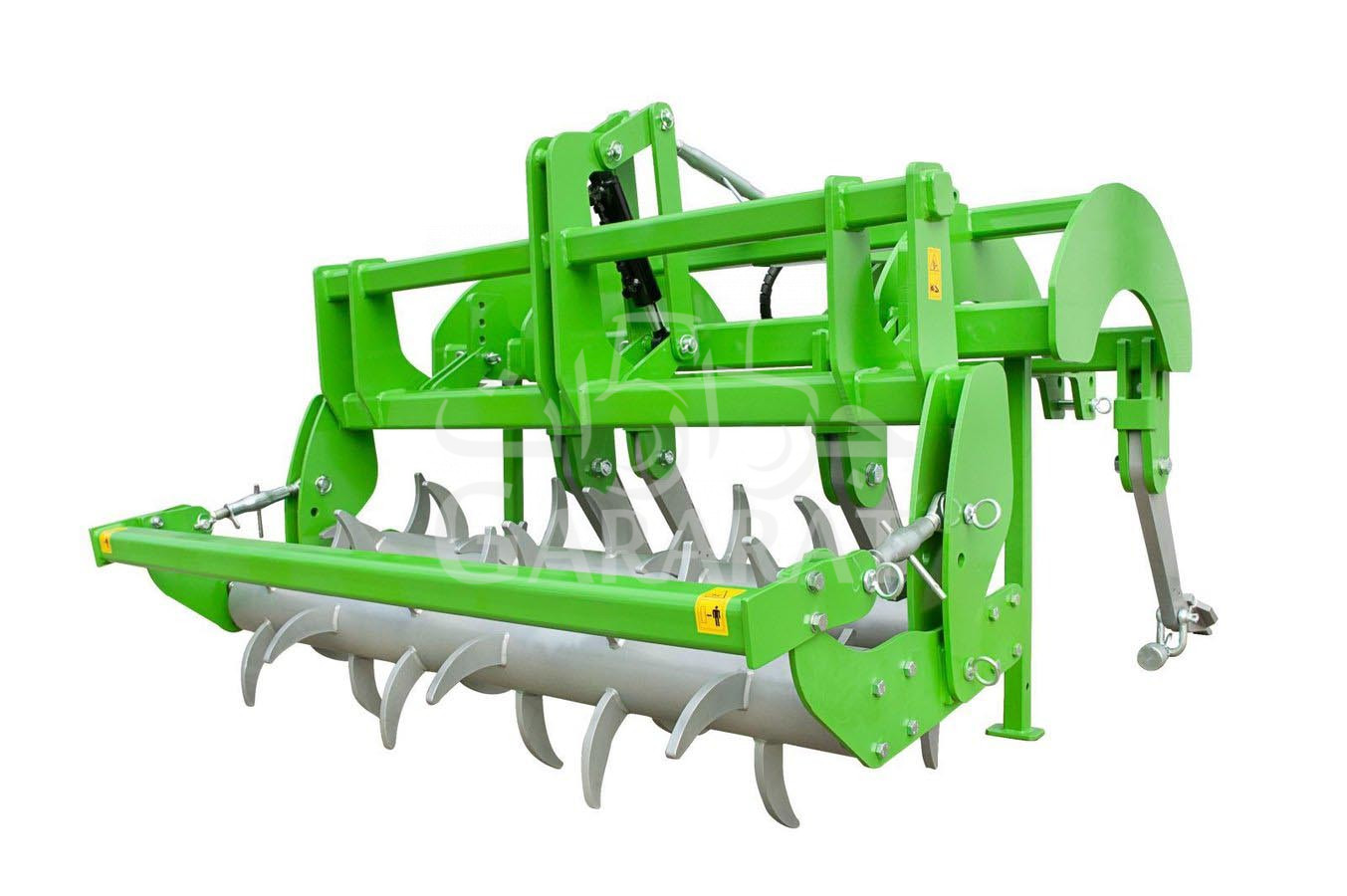

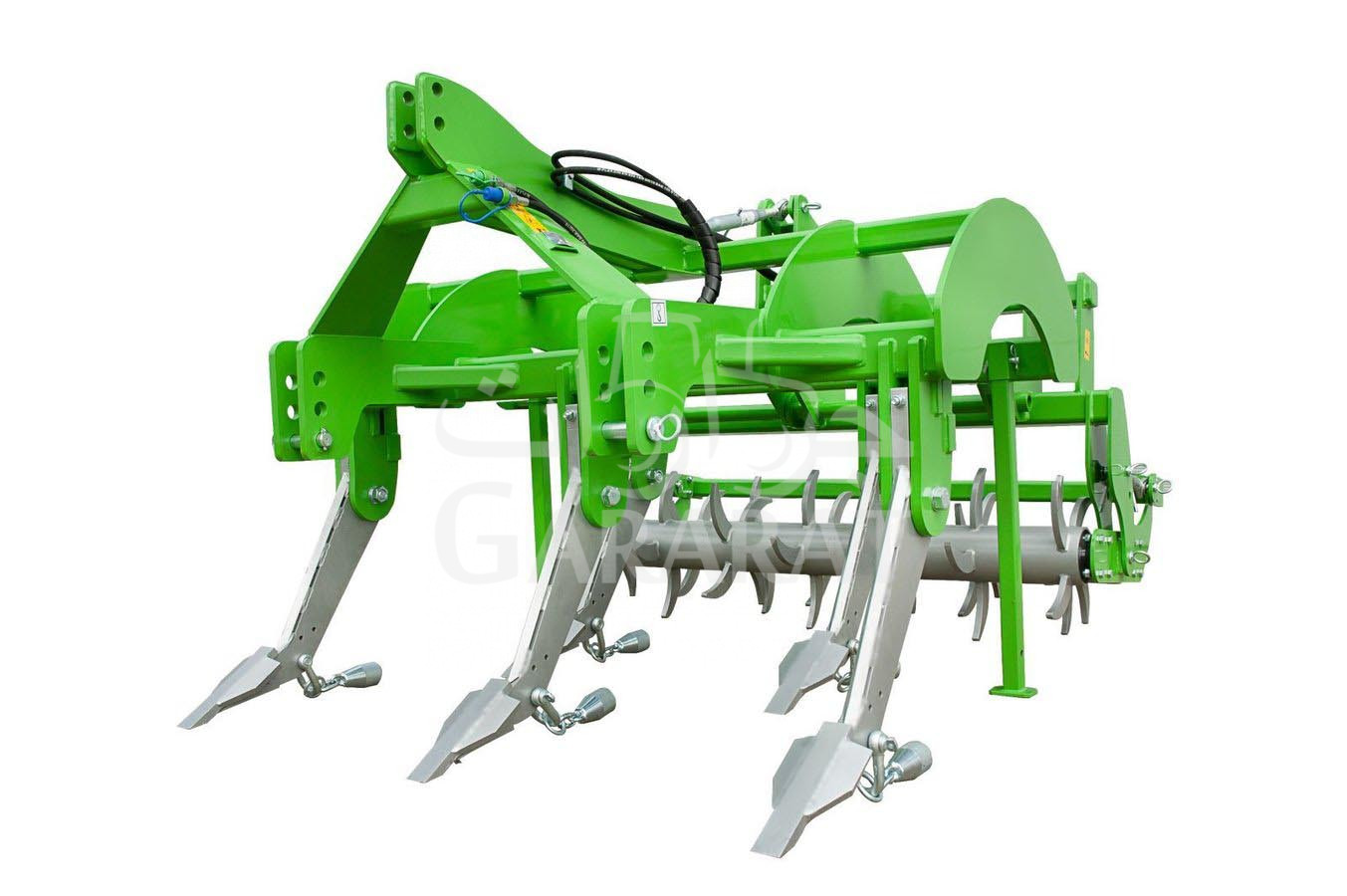

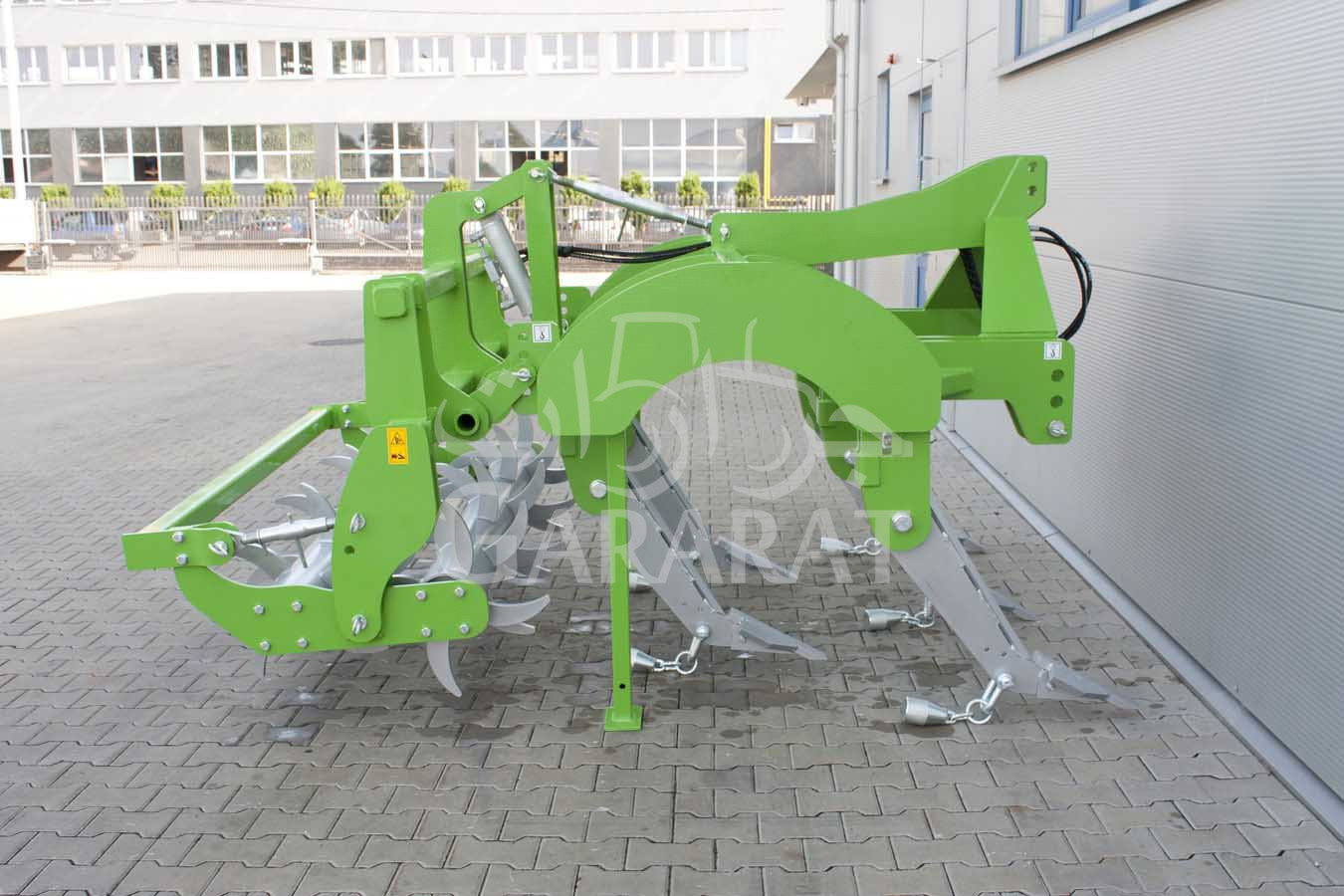

Subsoiler GARARAT SB are intended only for deep soil cultivation without compromising its top layer. They loosen and aerate the soil up to 65 cm of depth.
Subsoiling breaks the "plow-shaped sole" thereby restoring normal water and air conditions in the soil. In this tillage type doesn't mix the surface and deep layers of the soil. It should preferably be done immediately after harvest, when the soil is dry.
The machine can also be used to prepare the soil before planting fruit trees, berry bushes and plants with deep root system.

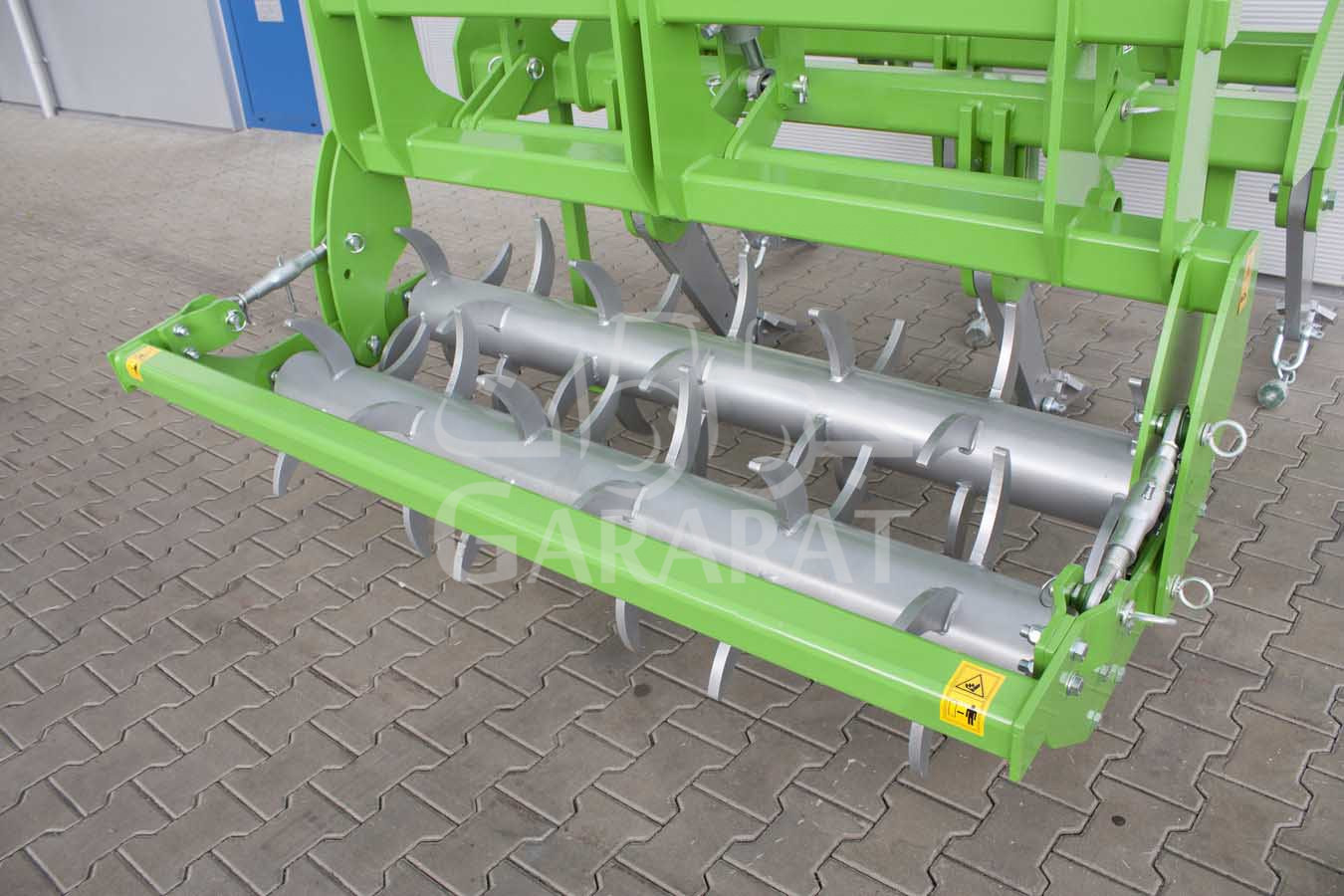

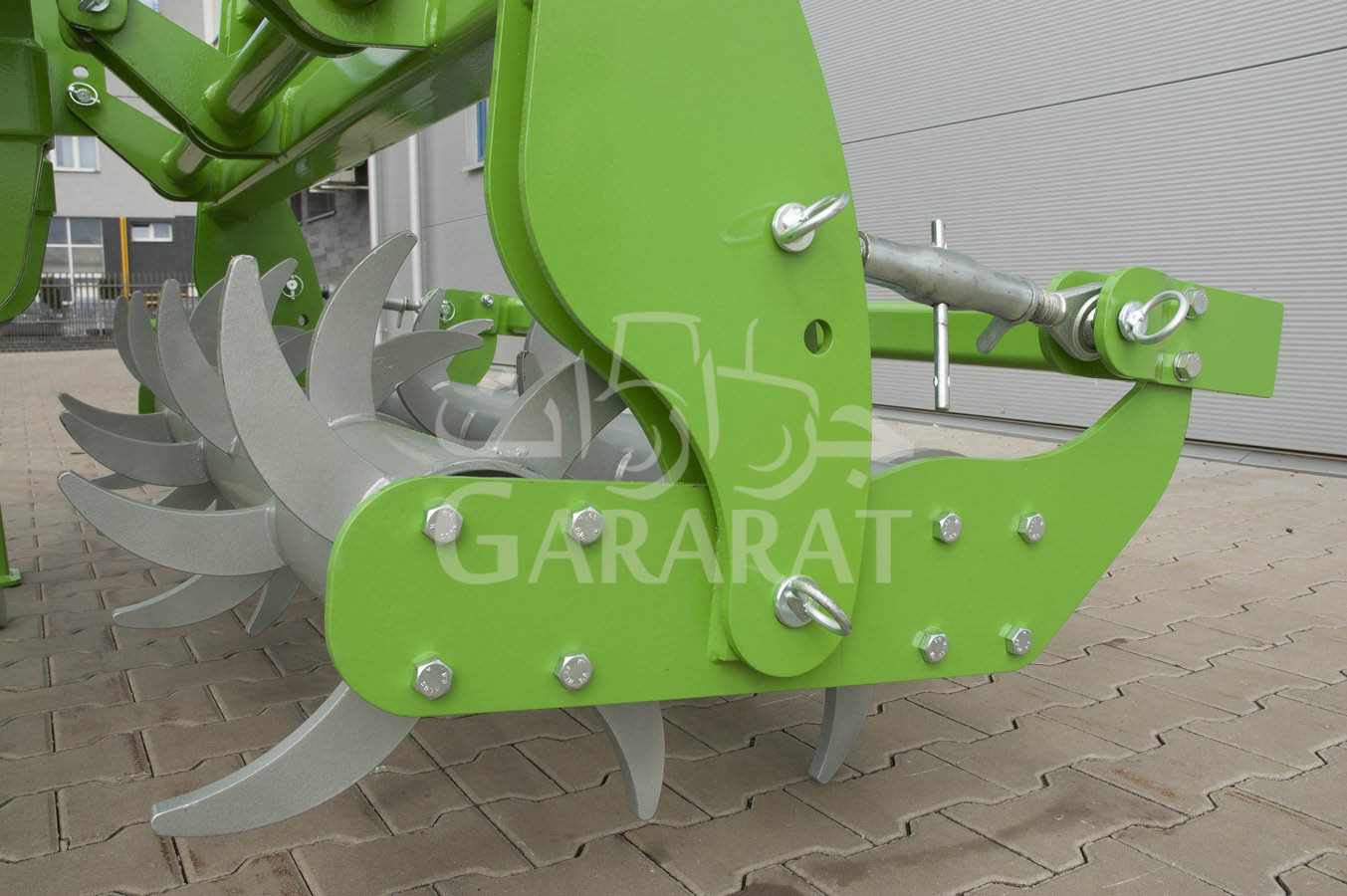

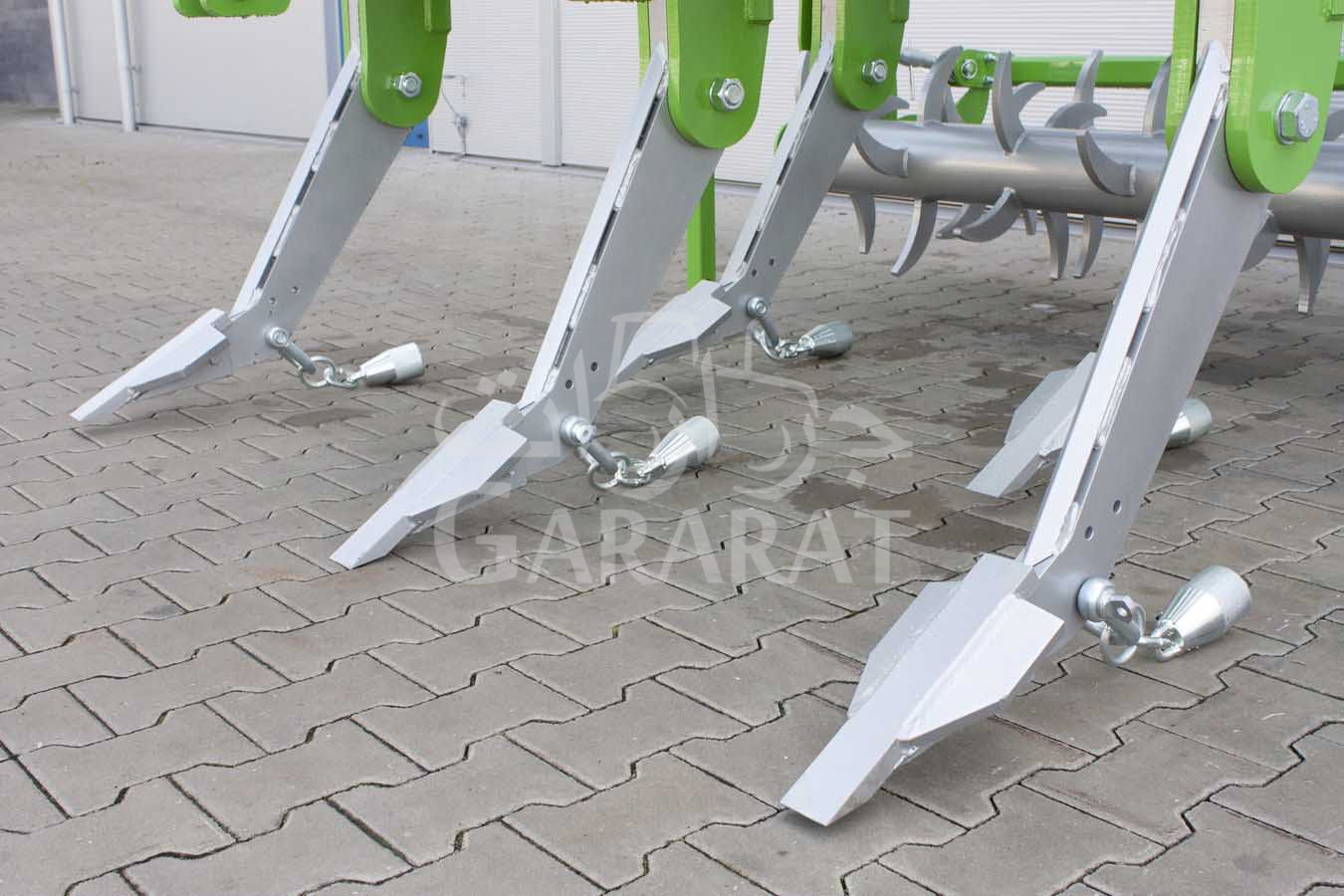

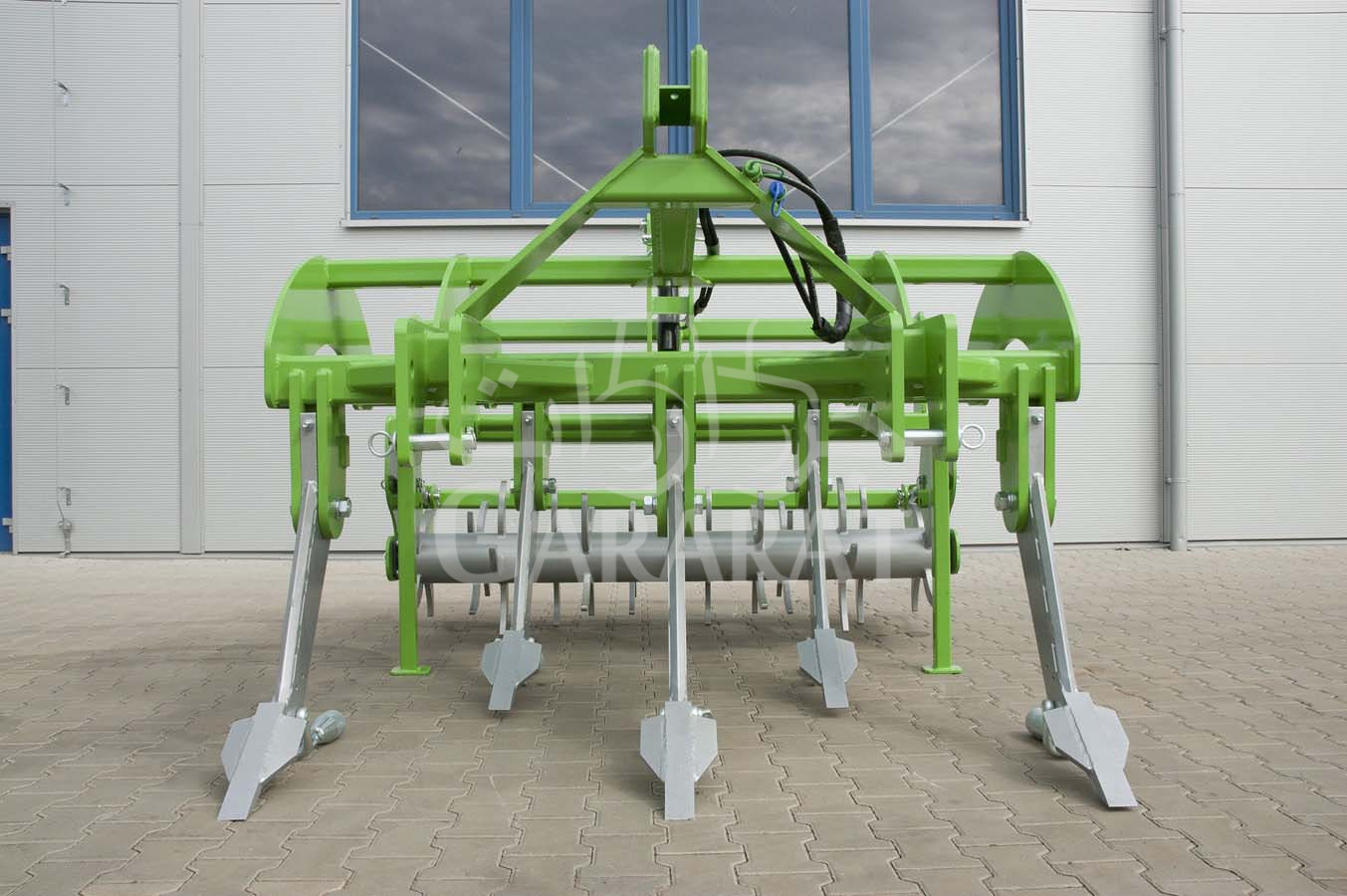

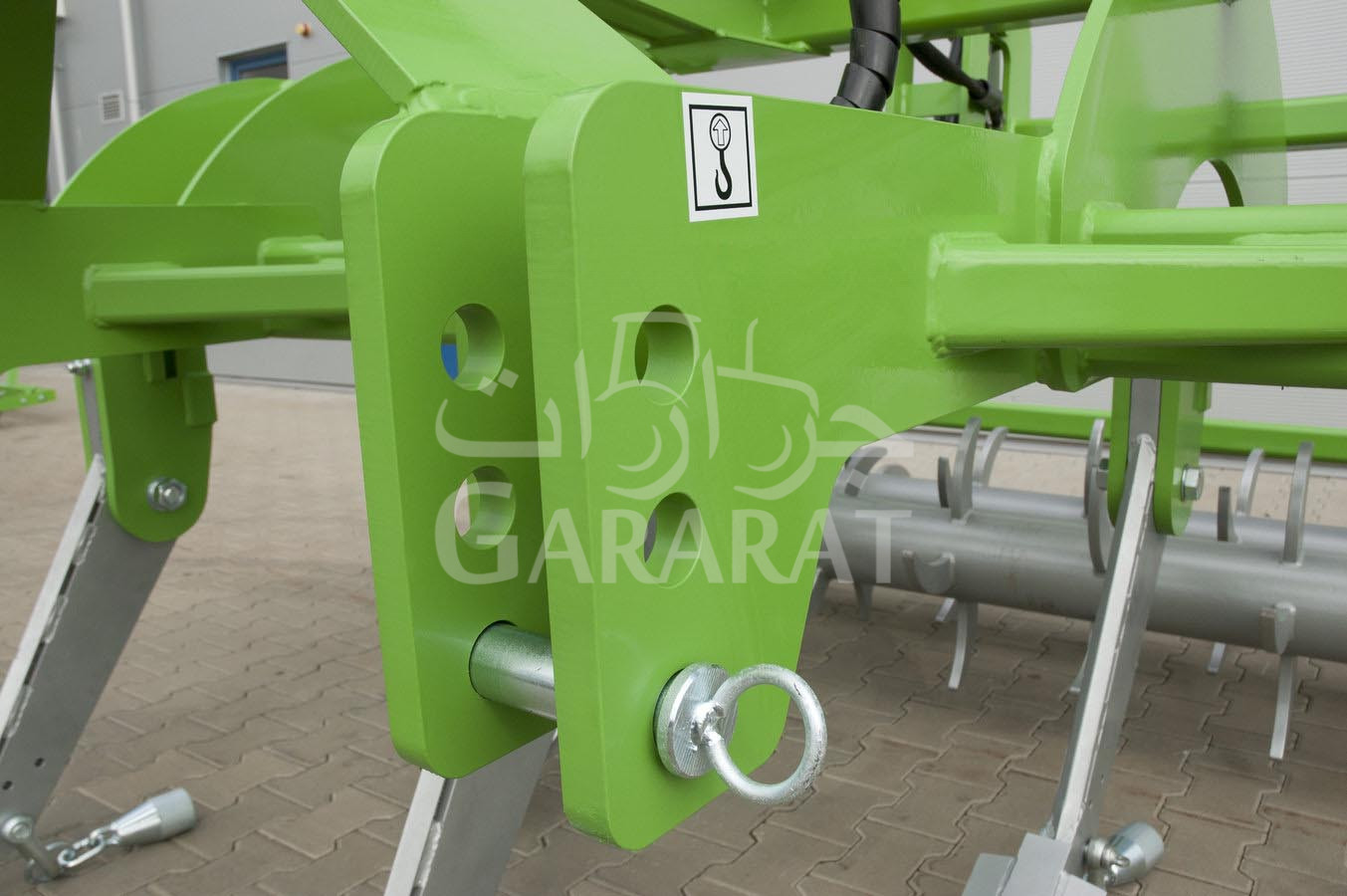

All subsoilers are equipped with a solid frame and a roller with adjustable depth of work. The subsoiler teeth are protected against being damaged by a shear bolt. In addition, the teeth are equipped with replaceable coulters and "mole", which performs additional loosening in deep soil layers.
| SPECIFICATION |
|
| Number of teeth, pcs: |
5 |
| Working depth, cm |
to 65 |
| Distance between teeth, cm |
45 |
| Roller diameter, mm |
500 |
| Weight, kg |
980 |
| Weight with poller, kg |
1605 |
| Drawbar category of the tractor, h.p. |
150 - 180 |
| Protectoin |
shear bolt |
| Complimentary options |
|

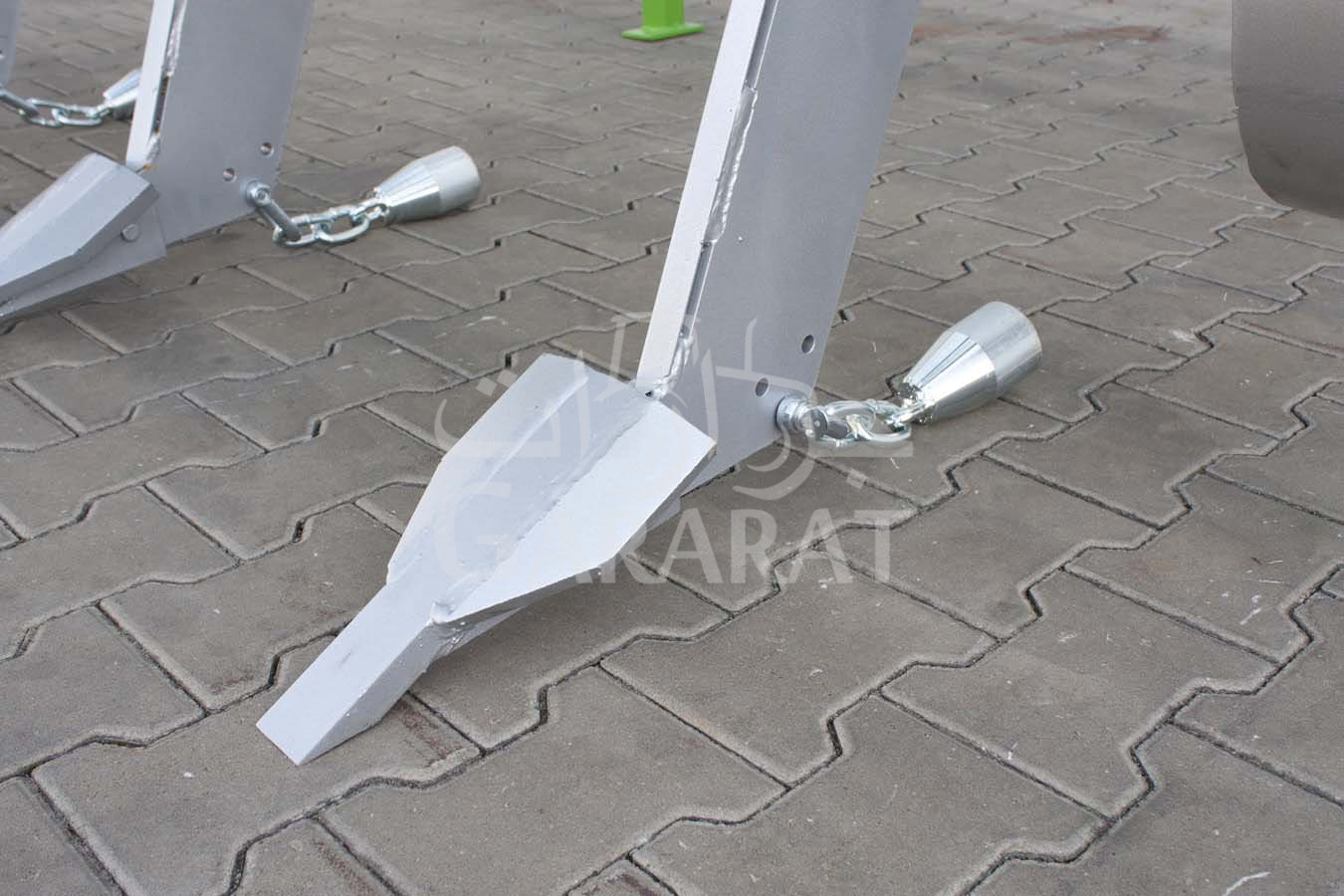

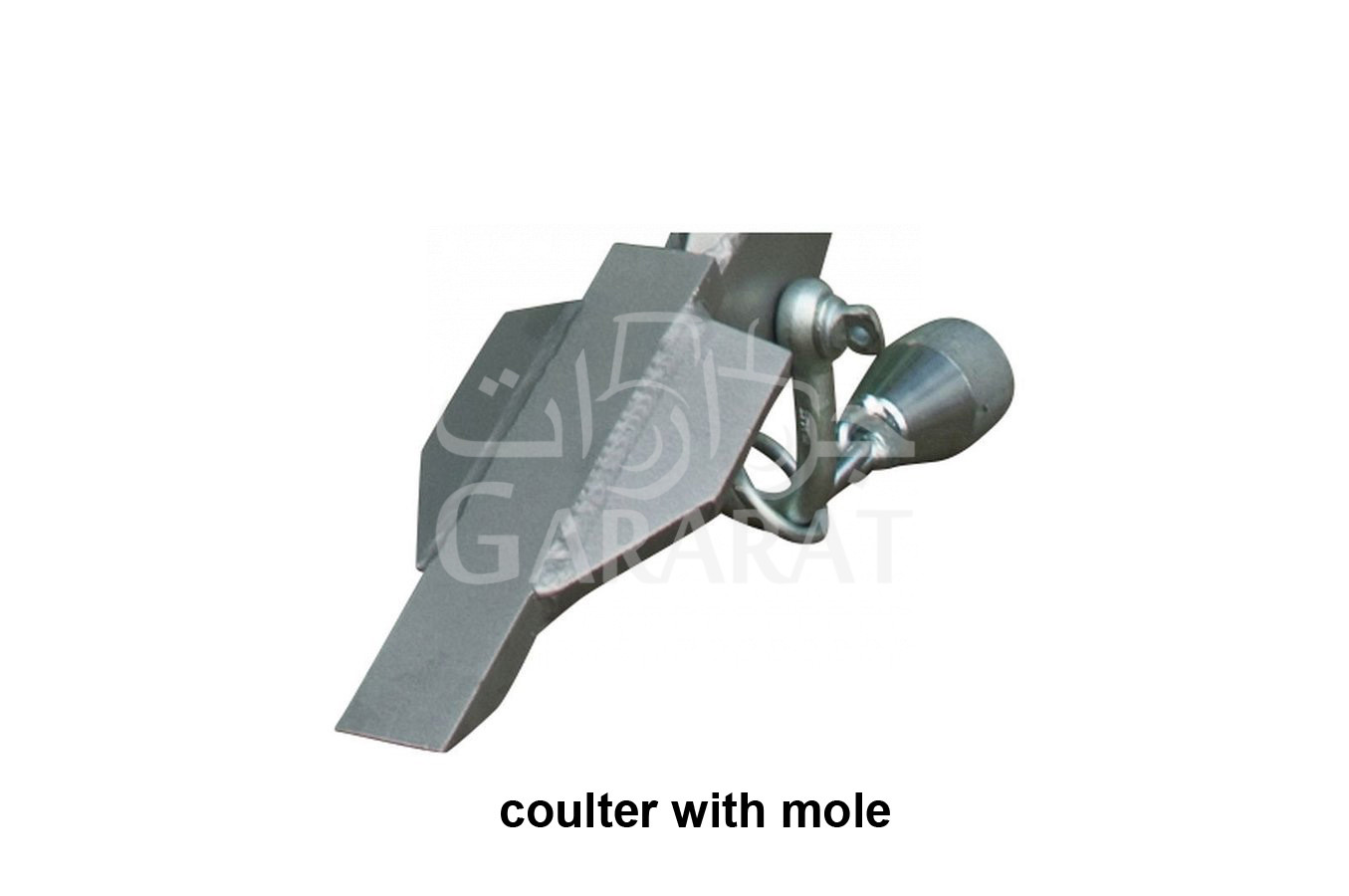

| Coulter with mole |
|

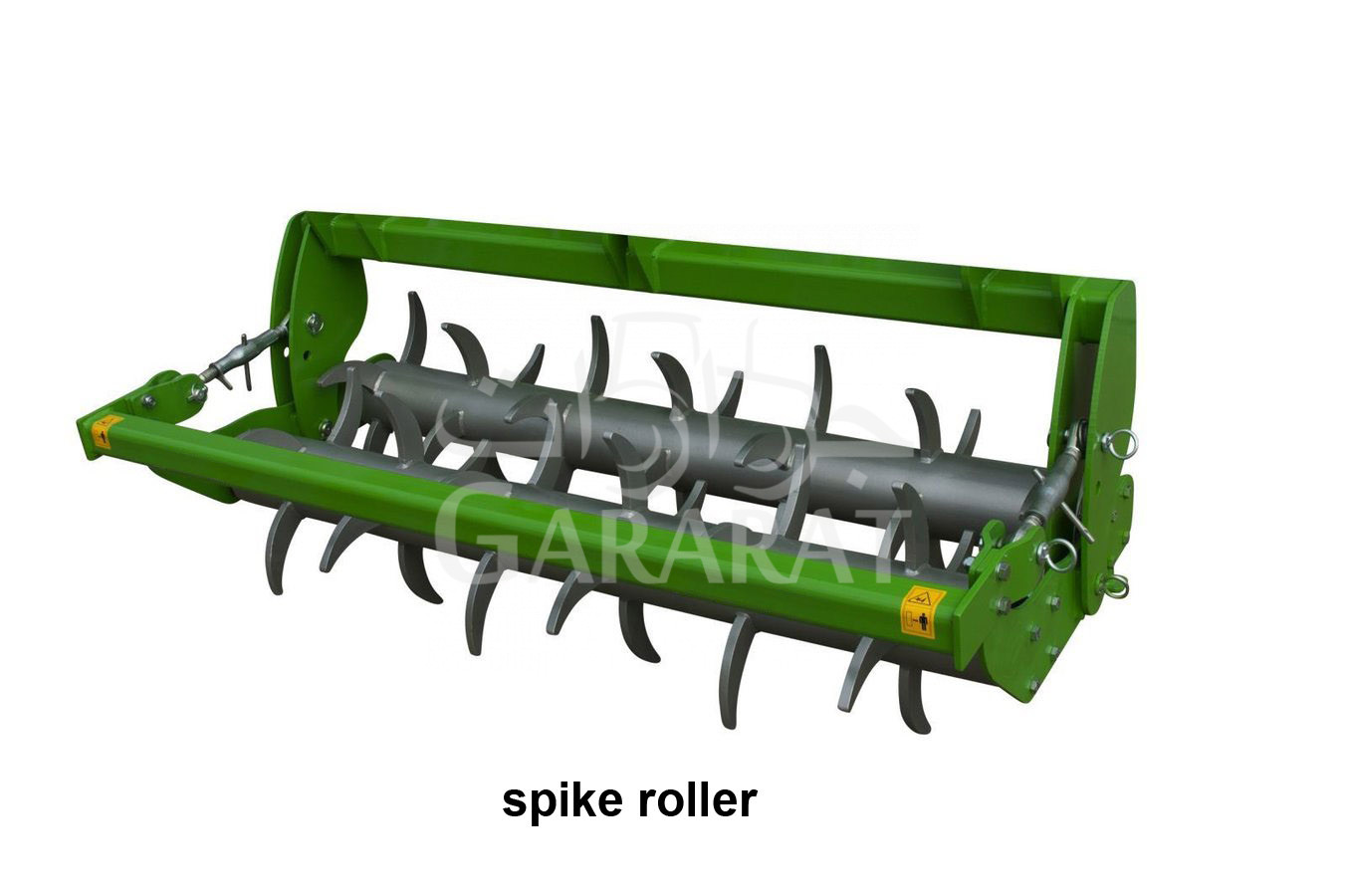

| Spike roller |
|
