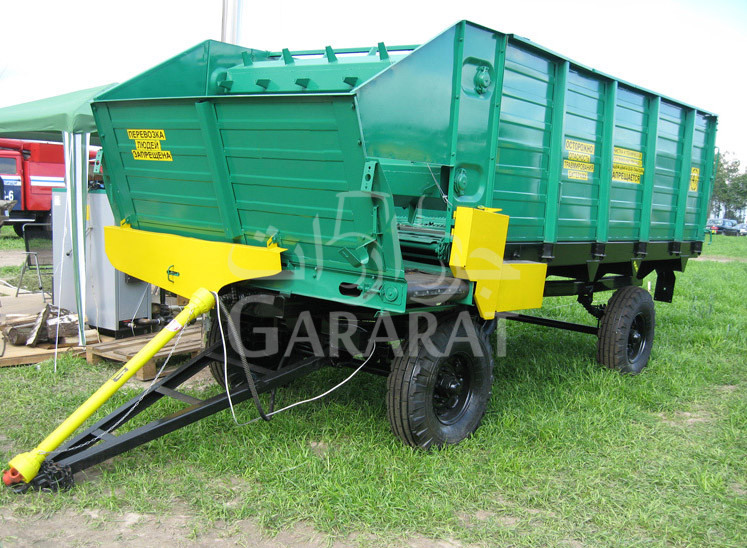

Dispenser trailer GARARAT DT-10-1
Purpose: reception and transportation of crushed compost and its introduction into the root zone of trees while driving in a continuous controlled flow with a row spacing of at least 2100 mm.
Dispenser trailer GARARAT DT-10-1 can be made with unloading on 1 side and on 2 sides.
| SPECIFICATION | |
|---|---|
| Type | trailed |
| Payload capacity, kg | 4000 |
| Maximum speed, km / h, no more: | |
| - in transport mode | 25 |
| - in technological mode | 2-5 |
| Feed rate, cubic meters / hour | 75 - 600 |
| Number of axles, pcs. | 2 |
| Track width between the outer sides of the wheels, mm | 1860 |
| Ground clearance, mm | 300 |
| Body volume, cbm: | |
| - with main boards | 10 |
| Trailer weight, kg | 2100 |
| Overall dimensions of the trailer, mm: | |
| - length | 6670 |
| - width | 2300 |
| - height | 2500 |
| Service brake system | pneumatic with one-wire drive |
| Parking brake system | mechanical with manual drive |
| Drawbar category of the tractor, h.p. | 80-120 |
| Drive | PTO tractor 540 rpm |
