Dumper semi-trailer GARARAT DST-14

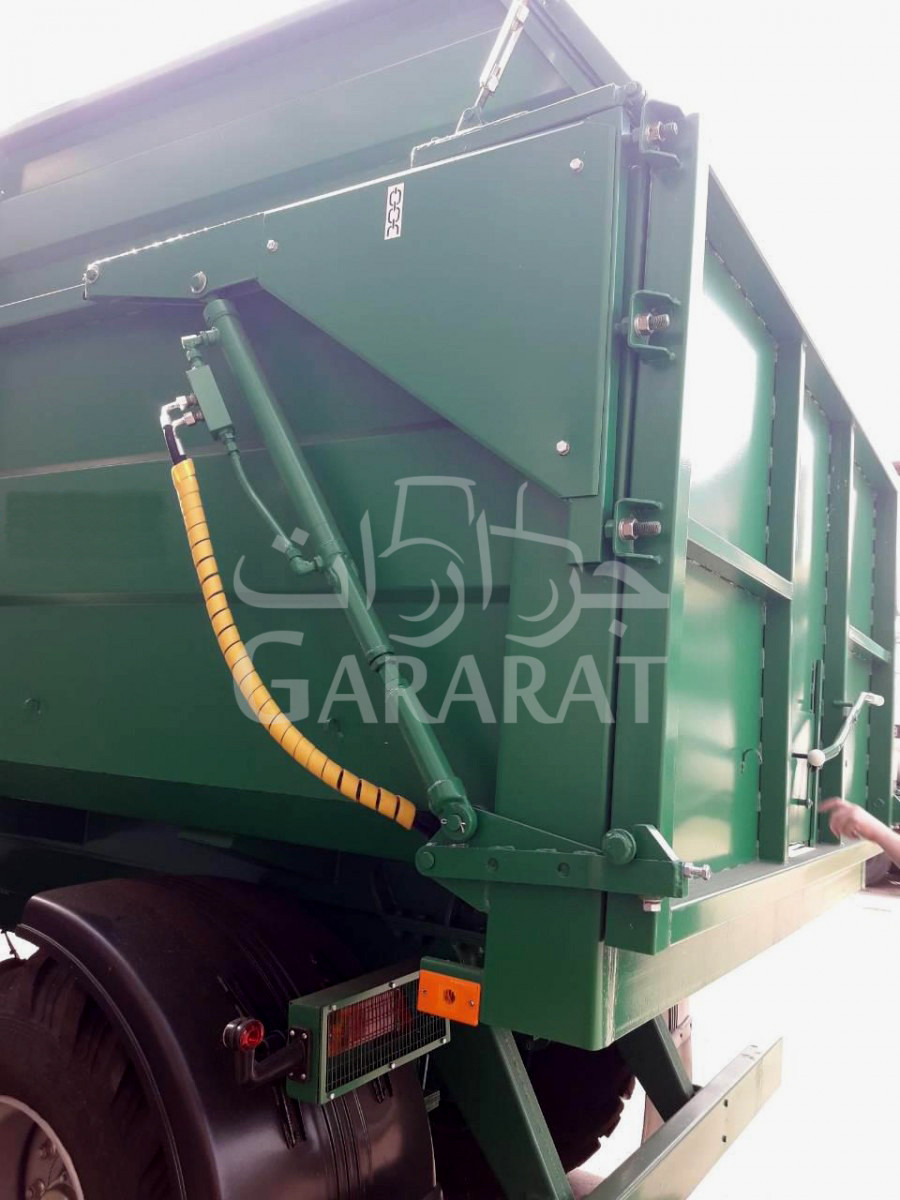

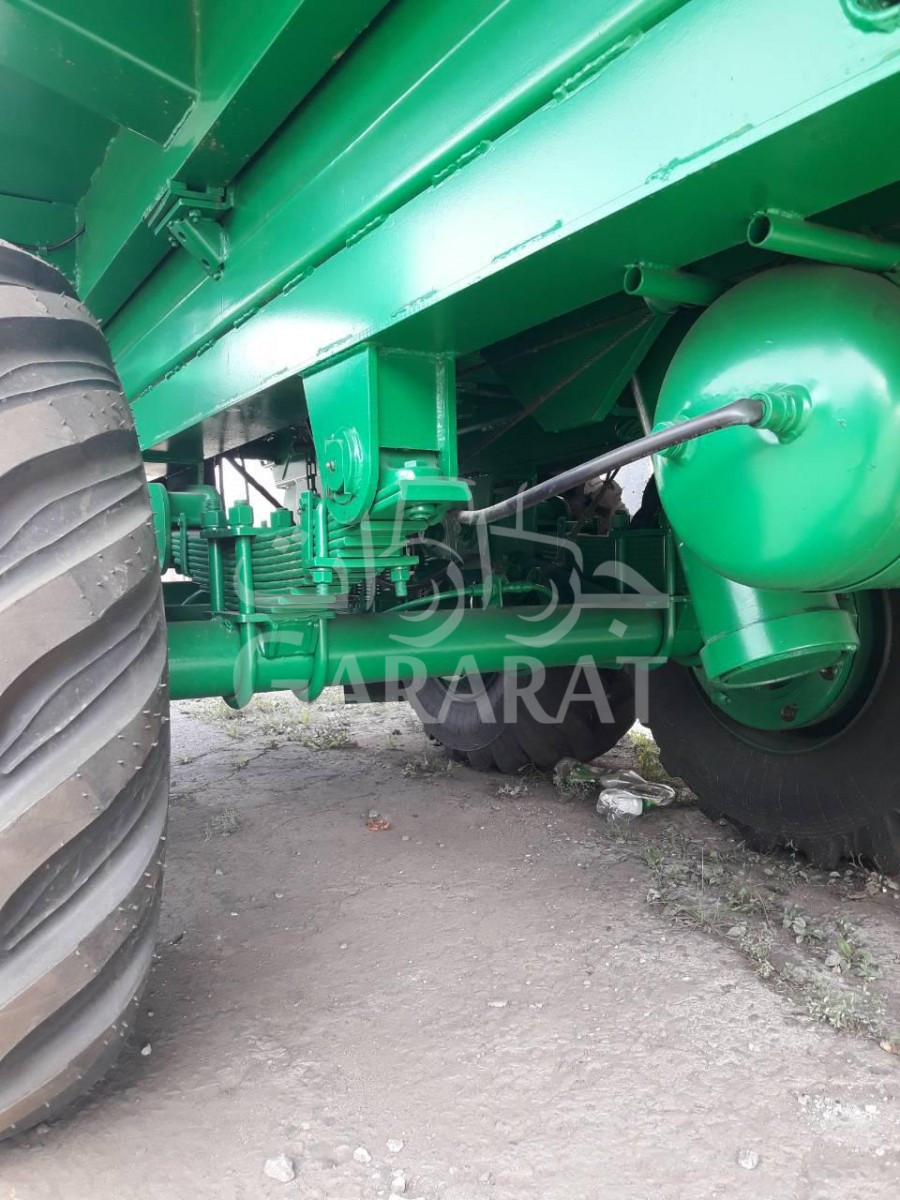

Dumper semi-trailer GARARAT DST-14 is designed for transportation of various agricultural goods, grain, root crops, organic fertilizers with back dumping. The back gate opens automatically when the body rolls over. The semitrailer has a balancing trolley with a rigid or spring suspension with the tires 20/60-22,5, which increases ride smoothness and is equipped with a pneumatic brake system.
In accordance to the request of the consumer, the semitrailer can be equipped with additional extension all-metal boards of 560 mm. height. Semitrailer can be used in all areas of agriculture, except mountainous.
The capacity of the tractor hydraulic system must be at least 35 liters.
| SPECIFICATION | |
|---|---|
| Type | semi-trailed |
| Payload capacity, kg | 14000 |
| Tipping angle, degree | 50 |
| Track width, mm | 2025 |
| Ground clearance, mm | 300 |
| Discharge sides | 1 (back) |
| Chassis type | balance bogie |
| Transport speed, km/h | 25 |
| Board height, mm: | |
| - basic | 1300 |
| - overhead | 560 |
| Body volume, cbm: | |
| - with main boards | 13.0 |
| - with extension boards 560 mm | 17.0 |
| Overall dimensions of the trailer | |
| - length | 6500 |
| - width | 2500 |
| - height * | 2850 |
| Loading height, mm: | |
| - on the floor of the body | 1550 |
| - on the main boards | 2850 |
| - on the extension boards 560 mm | 3410 |
| Service brake system | pneumatic, drum |
| Number of brake axles | 1/2 |
| Parking brake system | mechanical with manual drive |
| Weight, kg | 4500 |
| Drawbar category of the tractor, h.p. | 140 - 180 |
| Tire size | 20/60-22,5 НС12 |
| *) Without extension boards |
