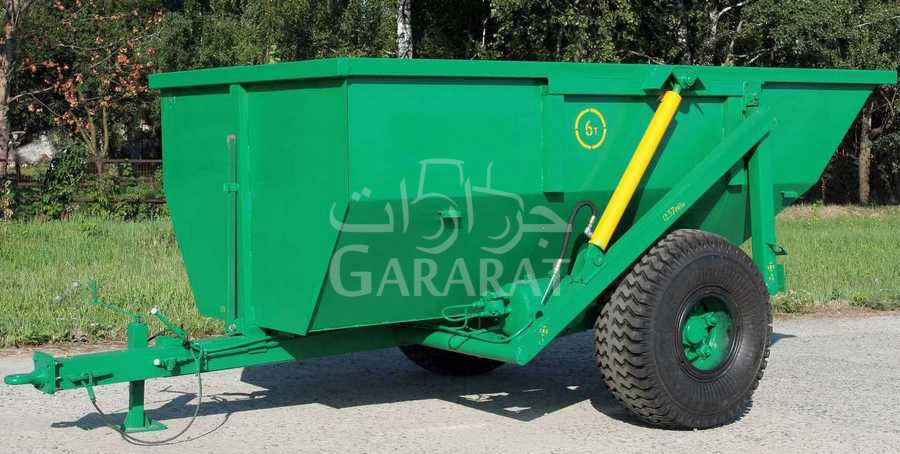

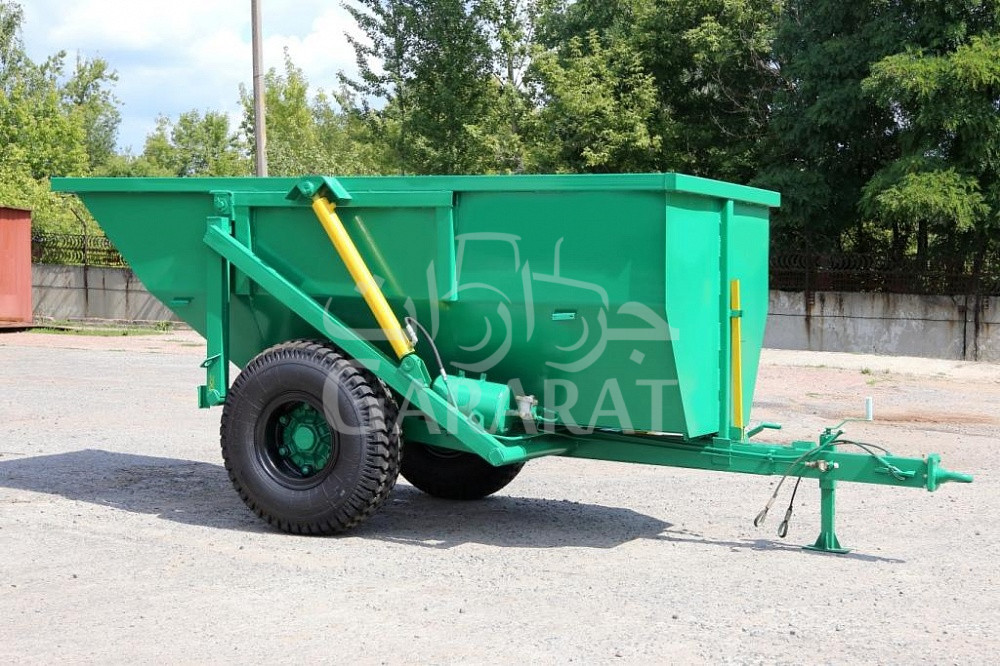

Dumper semi-trailer GARARAT DST-6 is designed for transportation of various agricultural goods, grain, root crops, organic fertilizers, building materials and other goods, including semi-liquid, with back dumping.

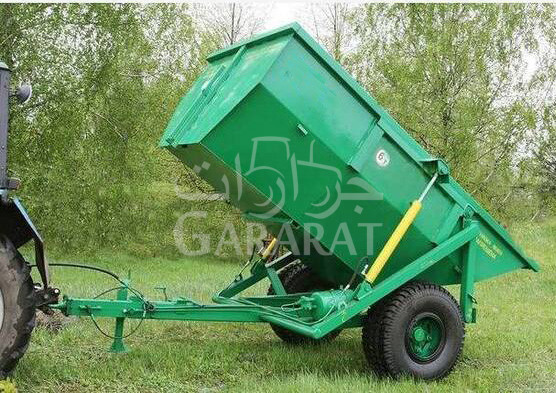

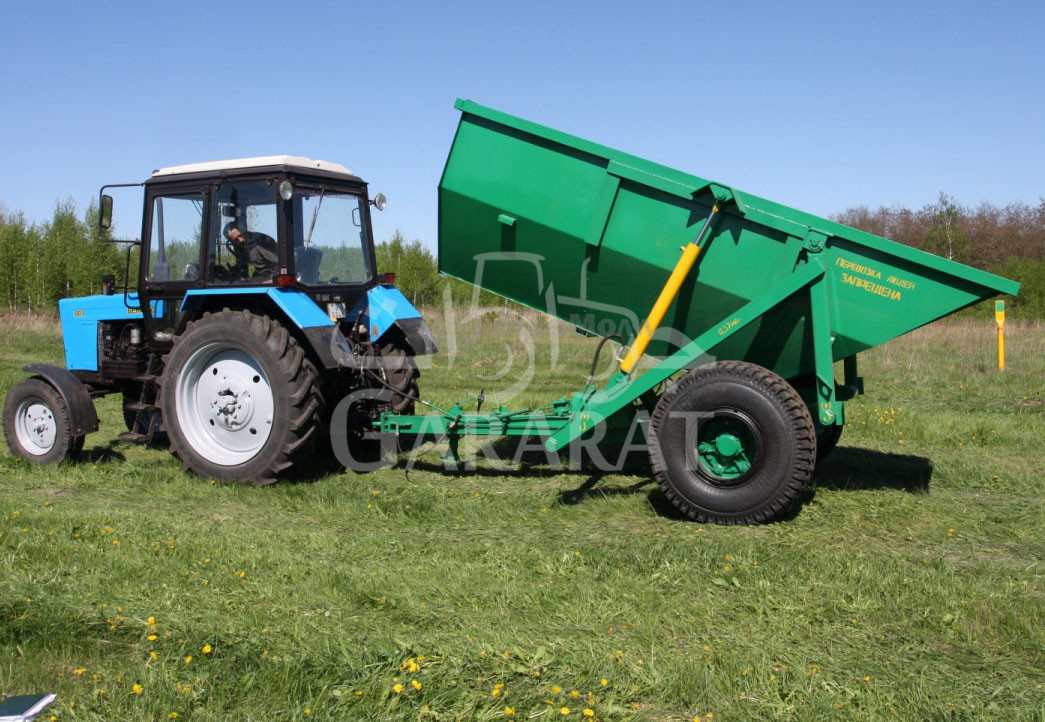

Application in the design of the trailer of beveled rear wall and two side cylinders provides the possibility of easy and fast dumping of any goods without damage when falling from the edge of the tailgate. This is achieved with the lowest possible drop height (about 20 cm).
| SPECIFICATION |
|
| Type |
semi-trailed |
| Payload capacity, kg |
6000 |
| Body volume, cbm: |
6 |
| Tipping angle, degree |
84 |
| Track width, mm |
2040 |
| Ground clearance, mm |
300 |
| Discharge sides |
1 (back) |
| Number of axles, pcs. |
1 |
| Transport speed, km/h |
25 |
| Overall dimensions of the trailer |
|
| - length |
5145 |
| - width |
2500 |
| - height |
2050 |
| Loading height, mm: |
|
| - on the floor of the body |
750 |
| - on the main boards |
2050 |
| Trailer weight, kg |
1775 |
| Drawbar category of the tractor, h.p. |
70 - 90 |
