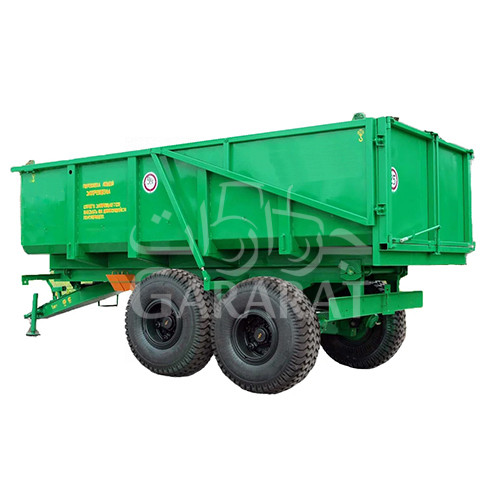

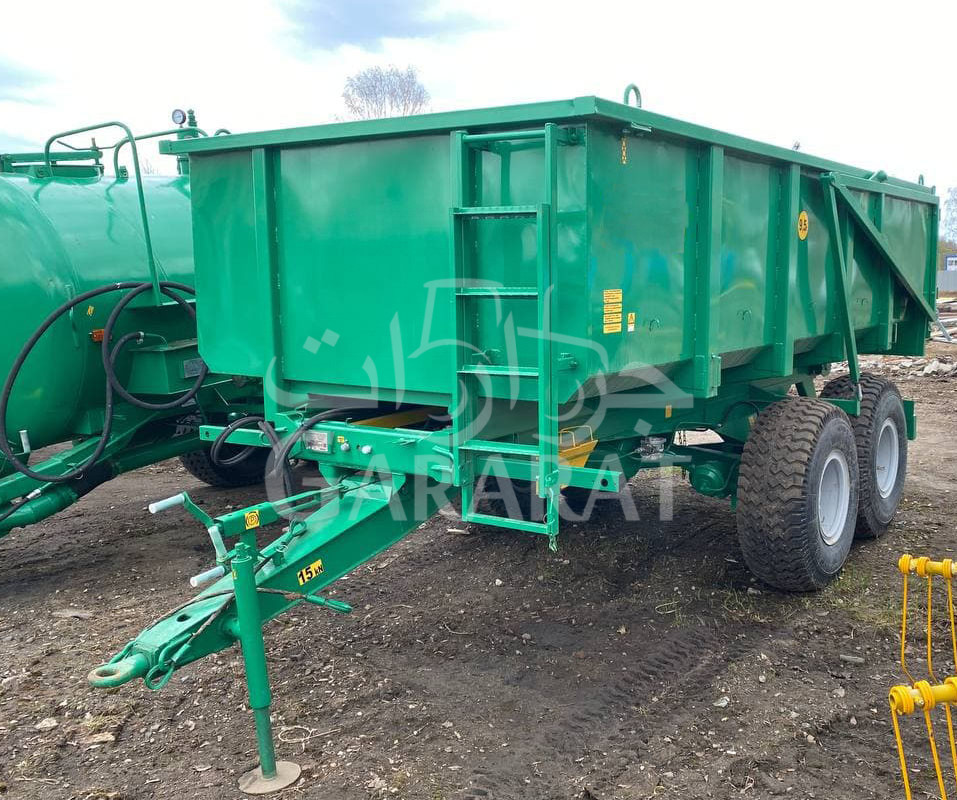

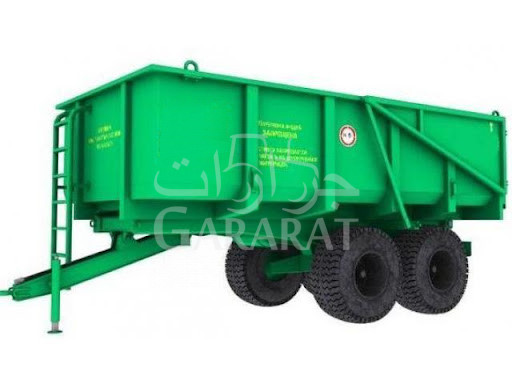

Dumper semi-trailer GARARAT DST-9
Dumper semi-trailer GARARAT DST-9 is designed for transportation of various agricultural goods, grain, root crops, organic fertilizers with back dumping. The back gate opens automatically when the body rolls over. The semitrailer has a balancing trolley with a rigid or spring suspension with the tires 16.5/70-18, which increases ride smoothness and is equipped with a pneumatic brake system.
In accordance to the request of the consumer, the semitrailer can be equipped with additional extension boards of 200 mm. height or 800 mm. height (200 mm. all-metal; 800 mm. mesh.). Semitrailer can be used in all areas of agriculture, except mountainous.
| SPECIFICATION | |
|---|---|
| Type | semi-trailed |
| Payload capacity, kg | 9500 |
| Tipping angle, degree | 50 |
| Track width, mm | 2050 |
| Ground clearance, mm | 300 |
| Discharge sides | 1 (back) |
| Chassis type | balance bogie |
| Transport speed, km/h | 25 |
| Board height, mm: | |
| - basic | 1050 |
| - overhead | 200 |
| - overhead mesh | 800 |
| Body volume, cbm: | |
| - with main boards | 10.5 |
| - with extension boards 200 mm | 12.5 |
| - with extension mesh boards 800 mm | 17.5 |
| Overall dimensions of the trailer | |
| - length | 6000 |
| - width | 2500 |
| - height * | 2415 |
| Loading height, mm: | |
| - on the floor of the body | 1275 |
| - on the main boards | 2415 |
| - on the extension boards 200 mm | 2615 |
| - on the extension mesh boards | 3215 |
| Service brake system | pneumatic, drum |
| Number of brake axles | 1 |
| Parking brake system | mechanical with manual drive |
| Weight, kg | 3460 |
| - extension boards 200 mm | 90 |
| - extension mesh boards 800 mm | 230 |
| Drawbar category of the tractor, h.p. | 80 - 130 |
| Tire size | 16.5 / 70-18HC10 |
| *) Without extension boards |
