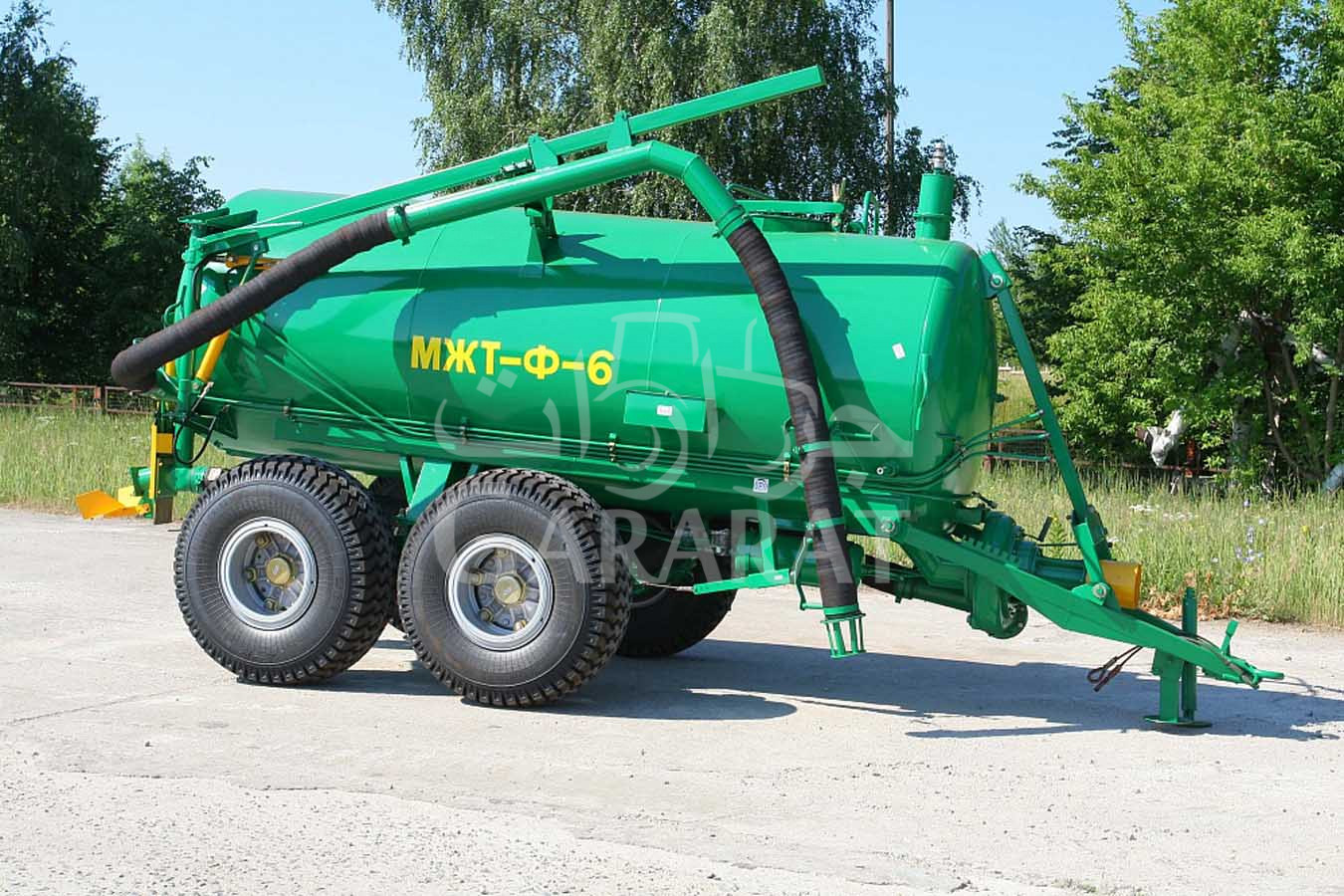

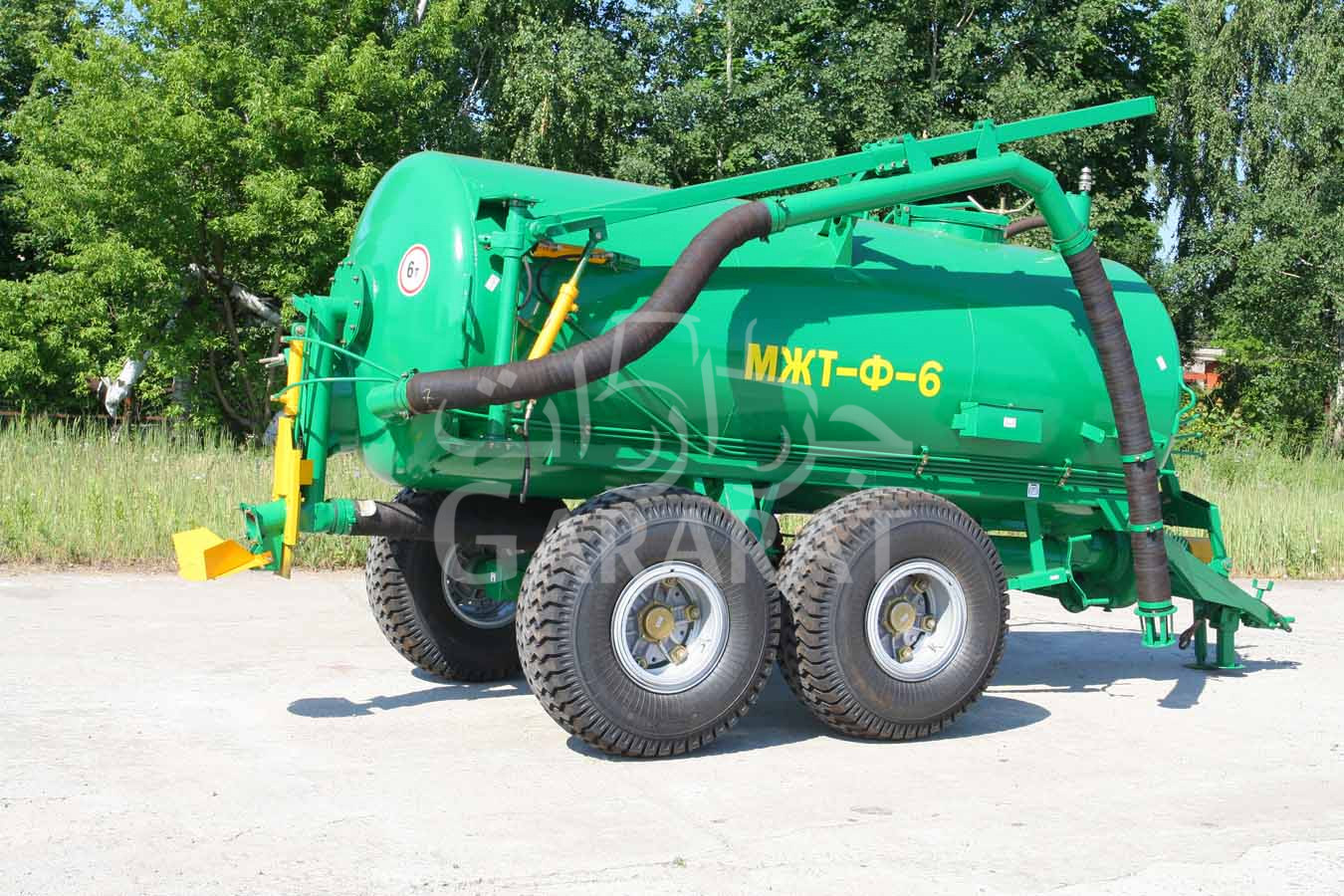

The tank for transportation of liquids GARARAT MJT-7 is used to solve the following tasks:
• self-unloading, transportation, mixing and continuous surface distribution of liquid organic fertilizers
• transportation of non-aggressive liquids, except food and oil products
• transportation of industrial water, car washing, fire fighting, road washing, watering, etc.
Fertilizers are applied using a centrifugal pump (it also mixes fertilizers during transportation) and a filling device. The loading of fertilizers inside the machine is carried out by a vacuum system through the filling sleeve.

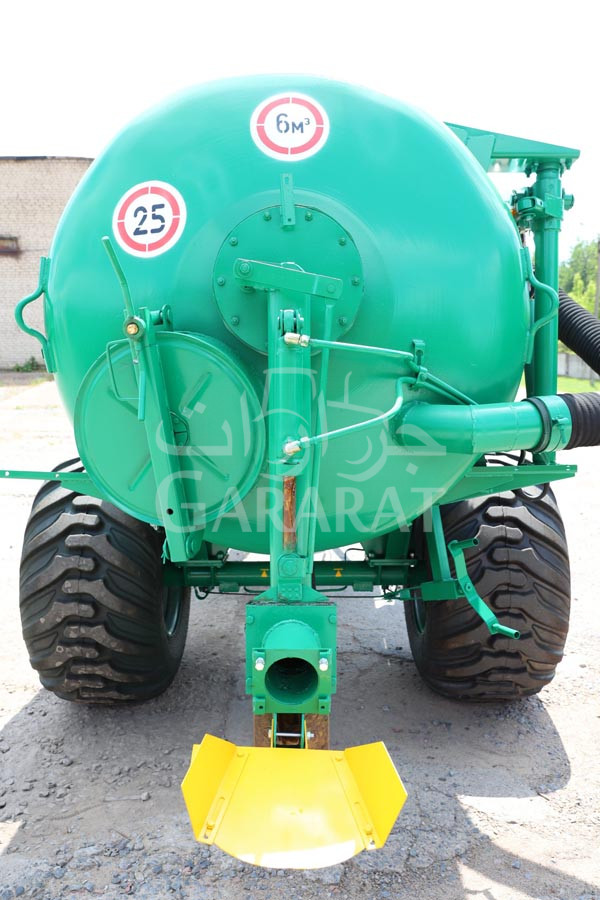

The machine is also equipped with a hatch for loading the machine with autonomous means.
Tank GARARAT MJT-7 is manufactured in three versions:
- MJT-7 is usual version of metal;
- MJT-7E is treated with two-component epoxy enamel;
- MJT-7Z is galvanized.
| SPECIFICATION |
|
| Payload capacity, kg |
7000 |
| Self-loading time, min |
4 - 7 |
| Width of application, m |
6 - 12 |
| Rate of application, t/ha |
10 - 60 |
| Liquid intake depth, mm |
2500 |
| Productivity, t/h |
23.0 |
| Overall dimensions, mm: |
|
| - length |
7300 |
| - width |
2500 |
| - height |
3500 |
| Weight, kg |
3000 |
| Drawbar category of the tractor, h.p. |
80 - 110 |
