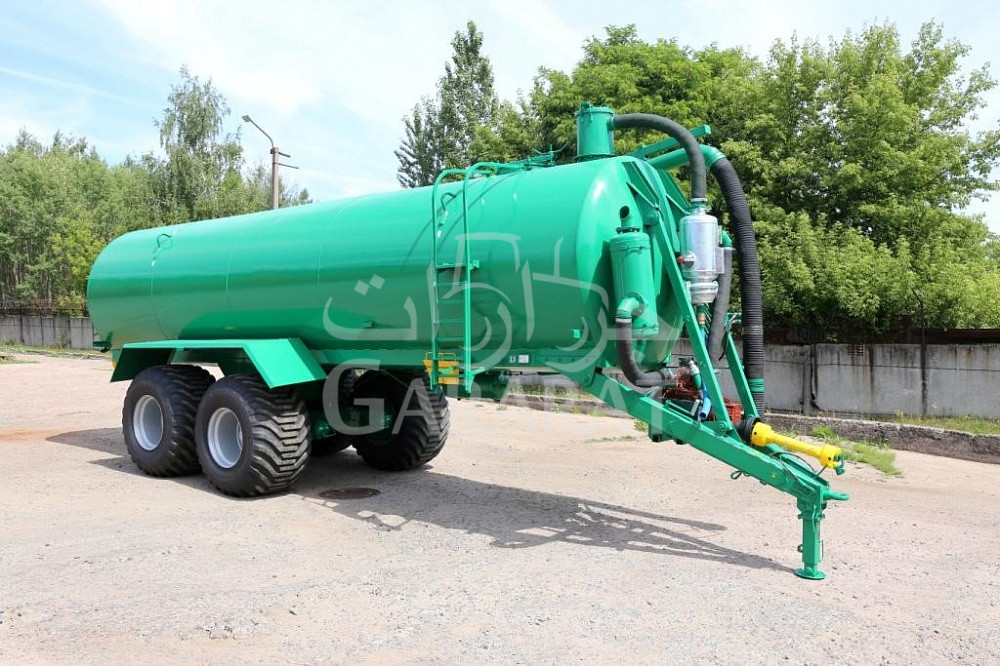

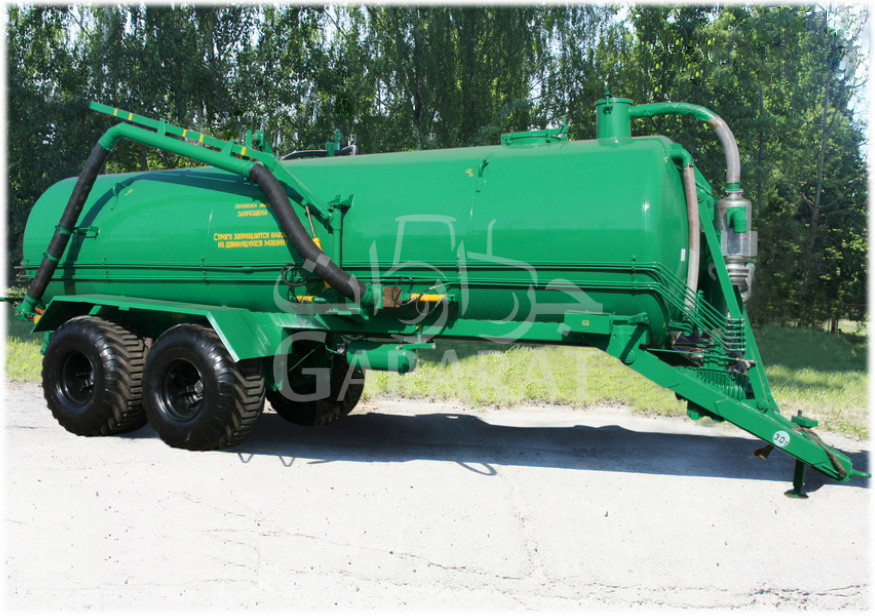

The tank for transportation of liquids MJU-20 is designed to solve the following tasks:
• self-unloading, transportation, mixing and continuous surface distribution of liquid organic fertilizers
• transportation of non-aggressive liquids, except food and oil products
• transportation of industrial water, car washing, fire fighting, road washing, etc.
Fertilizers are applied using a centrifugal pump (it also mixes fertilizers during transportation) and a filling device. The loading of fertilizers inside the machine is carried out by a vacuum system through the filling sleeve; the machine is also equipped with a hatch for loading the machine with autonomous means.
Tank for transportation of liquids MJU-20 can be supplied in the following configurations:
- MJU-20 - container made of metal, has a vacuum compressor for pumping inside and for pumping out liquid;
- MJU-20 - with additional treatment with 2-component epoxy enamel;
- MJU-20 - without a vacuum compressor, for the supply of water, working fluids;
- MJU-20-1 with an adapter for subsoil application of liquid organic fertilizers;
- MJU-20-2 with an adapter for surface application of liquid organic fertilizers.
| SPECIFICATION |
|
| Payload capacity, kg |
20 000 |
| Self-loading time, min |
10 - 12 |
| Width of application, m |
6 - 12 |
| Rate of application, t/ha |
10 - 80 |
| Liquid intake depth, mm |
3500 |
| Productivity, t/h |
65.0 |
| Overall dimensions, mm: |
|
| - length |
9600 |
| - width |
2840 |
| - height |
3600 |
| Weight, kg |
7600 |
| Drawbar category of the tractor, h.p. |
250 - 350 |
